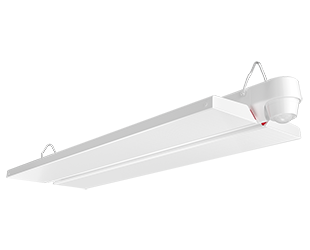

SHARK8/PIR/E
SHARK8/PIR/E
100W 3500/4000/5000K
- Impact-resistant linear washdown
- Ideal for tunnels and stairwells
- Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount
- IP66 Rating protects against dust & water ingress
- 5-Year, No-Compromise Warranty
- 100,000-Hour LED lifespan
Performance
| Watts | 100/80/60W |
| Color Temp | 3500/4000/5000K |
| Lumens | 8,585-14,201 lm |
| Efficacy | 134.9-160.5 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.82A/0.66A/0.48A |
| 208V | 0.48A/0.40A/0.30A |
| 240V | 0.42A/0.35A/0.25A |
| 277V | 0.36A/0.30A/0.23A |
| Input Watts | 56.3-98.6W |
Dimensions
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
UL 746C
F1 weatherability rating for UV resistance, water exposure, and extreme temperature conditions.
NSF
NSF Certified by Public Health and Safety
NEMA Rating
4X, protected against corrosion
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-IBLSR8 (Stairwell and Passageway Luminaires)
DLC Product Code: S-LQTB85 (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-SRVU3Q (Direct Linear Ambient Luminaires)
DLC Product Code: S-IBLSR8 (Stairwell and Passageway Luminaires)
DLC Product Code: S-LQTB85 (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-SRVU3Q (Direct Linear Ambient Luminaires)
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.26% at 120V, 11.62% 277V
Power Factor
99.9% at 120V, 96.1% at 277V
Surge Protection
2.5kV
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Construction
Housing
IK09 impact-resistant polycarbonate with 5VA flame rating*
1/2" openings for conduit and bushing/cord entry
*Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
1/2" openings for conduit and bushing/cord entry
*Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Lens
Diffuse polycarbonate lens for low glare and maximum protection
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Sensor Settings
Passive Infrared Occupancy and Daylight Sensor
PIR sensor with IR remote capability. High/Low bay passive infrared occupancy and daylight sensor.
UL Listed
Indoor use only
Brightness
Factory Setting: 100%
Hold Time
1 minute
Daylight
Disabled
Sensitivity
100%
Stand-By Dimming Level
20%
Stand-By Time
1 minute
Operating Voltage
12 ± 2V DC
Operating Current
30mA
Output
DIM 0-10V
Stand-By Power
<0.5W
Daylight Threshold
10Lux/30Lux/50Lux/100Lux/Disable
Lux On-Off
Adopted dual PD technology
Detection Angle
≤120° (wall mounted) 360° (ceiling mounted)
Control Line
Black White 12V+ ; Purple: DIM+ ; Pink GND/DIMMounting
Height
Max 20ft/6M (ceiling mounted)
Detection Range
Max 26ft/8M (ceiling mounted) Max 20ft/6m (wall mounted)
Operating Temperature
-30°C to +60°C (-22°F to + 140°F)
IP Rating
Ingress protection rating of IP65 for dust and water
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
