SK8XL10RDYN
SK8XL10RDYN large main
  • Surface mount to ceiling or wall
  • Opal lens provides soft, smooth light
  • Compatible with TRIAC dimming
 View Technical Specs
View Price & Availability
Performance
Watts 10W
Color Temp 3500K (Warm Neutral)
Lumens 956 lm
Efficacy 90.2 lm/W
Color Accuracy 83 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.09A
208V
240V
277V
Input Watts 10.6W
Dimensions

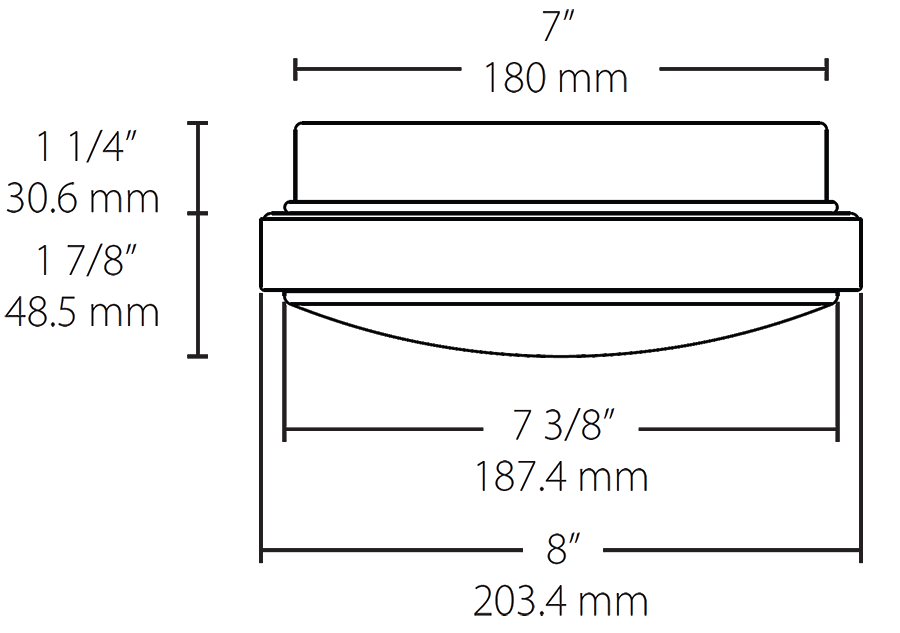

Link to Dimension Drawing

Weight: 2.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations. For indoor use only.
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
120VAC TRIAC, Constant Current, Class 2, 60 Hz, 0.09A
Dimming Driver
Compatible with TRIAC dimming at 120V.
See dimmer compatibility guide here.
THD
22% at 120V
Power Factor
95.9% at 120V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
