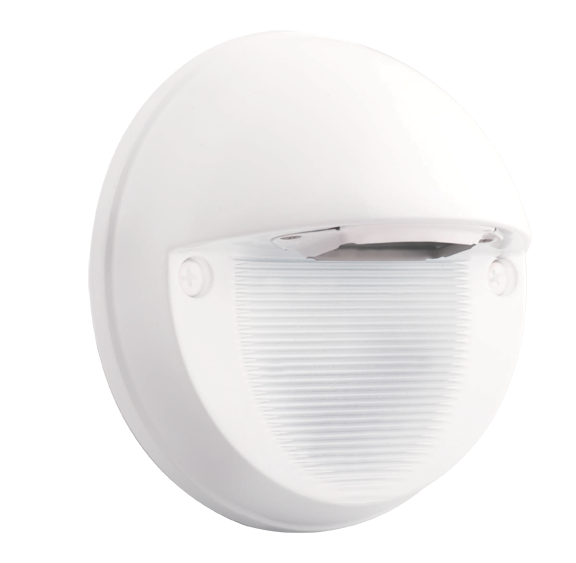

SLEDR5DCW

Spec Sheet Instructions Spec Sheet

SLEDR5DCW

View Technical Specs

Performance

Watts	5W
Color Temp	5000K (Cool)
Lumens	213 lm
Efficacy	41 lm/W
Color Accuracy	68 CRI
L70 Lifespan	100,000 Hours

Type	DC to DC
120V
208V
240V
277V
Input Watts	5.2W

Dimensions

Weight: 1.2 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft. of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Electrical

THD

11.6% at 120V, 21% at 277V

Electrical Input Specifications

MaxW = 5.1W, Input Volts = 10-30V DC, Input Amps = 0.51 - 0.17A.

Surge Protection

1000 Volts

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 13W CFL or 60W Incandescent

Construction

Finish

Formulated for high durability and long-lasting color

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Green Technology

Mercury and UV free. RoHS-compliant components.

Housing

Precision die-cast aluminum housing and mounting plate (junction box not included)

Gaskets

High-temperature silicone

LED Characteristics

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Lumen Maintenance

The LED will deliver 70% of its initial lumens at 100,000 hours of operation

Color Temperature

5000K

Other

Patents

The design of the SLED Lights are protected by U.S. Pat. D612,974, CA Pat. 133100, and China Pat. ZL201030129138.4.

Equipment

Solar panel, battery and controls by others

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
