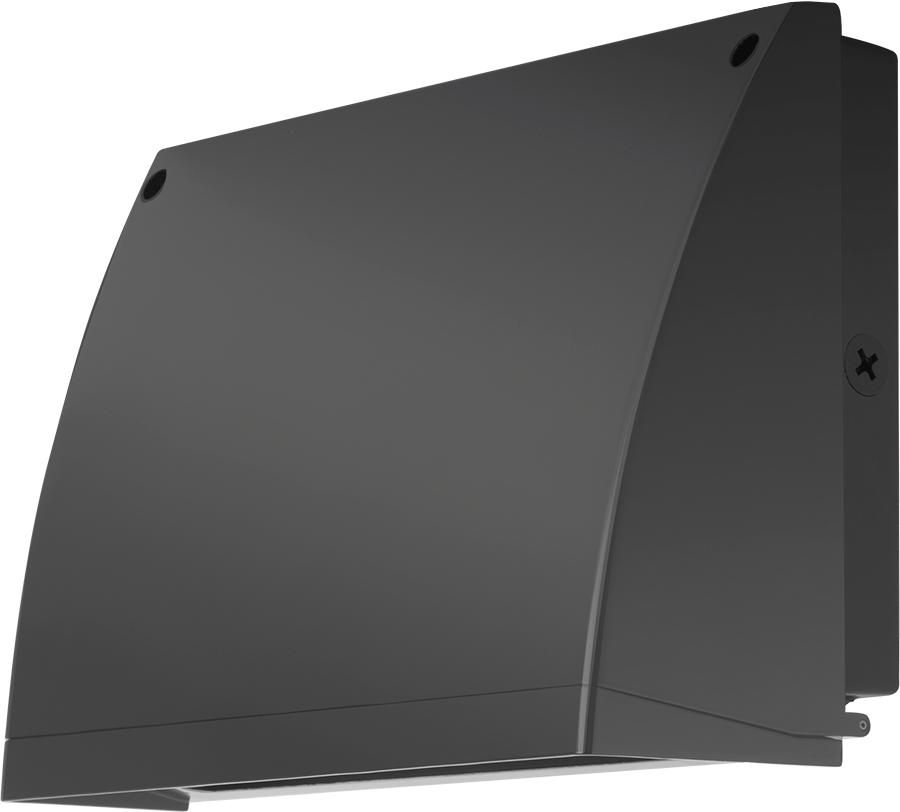

SLIMFC57Y/BL
SLIMFC57Y/BL
- Covers footprint of most traditional wall packs
- Easy installation with hinged access, bubble level and multiple conduit entries
- Tight-lock gasket keeps elements out
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 57W |
| Color Temp | 3000K (Warm) |
| Lumens | 4,480 lm |
| Efficacy | 90 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.48A |
| 208V | 0.32A |
| 240V | 0.28A |
| 277V | 0.24A |
| Input Watts | 49.8W |
Dimensions
Weight: 10.5 lbs
Technical Specifications
Other
Bi-Level Operation
Allows 50% and 100% output modes
Accessories
Available accessories include polyshield and wire guard. Click here to see all accessories.
Patents
The design of the SLIM™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
HID Replacement Range
Replaces 250W Metal Halide
Compliance
UL Listed
Suitable for Wet Locations. Wall Mount Only.
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Dark Sky Conformance
Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.
Construction
Footprint
Designed to replace RAB HID WP2 wall packs, both in size and footprint template, so upgrading to LED is easy and seamless
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum housing and door frame
Full Cutoff
Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.
Lens
Microprismatic diffusion glass lens reduces glare and has smooth and even light distribution
Reflector
Specular thermoplastic
Gaskets
The unique design of the tight-lock gasket ensures no water or environmental elements will ever get inside the SLIM
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LED
Long-life, high-efficiency, micro-power, surface mount LEDs; binned and mixed for uniform light output and color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Installation
Mounting
Die-cast back box with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged housing and bubble level for easy installation.
Recommended Mounting Height
Up to 25 ft
Electrical
THD
8.1% at 120V, 13.2% at 277V
