SM5.5S10940UNVTW

Spec Sheet IES File Downlight Accessory Compatibility List Compatibility List Photometrics Report Energy Star Instructions Spec Sheet EZ Layout

SM5.5S10940UNVTW

View Technical Specs

View Price & Availability

Performance

Watts	10W
Color Temp	4000K (Neutral)
Lumens	625 lm
Efficacy	60
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.115A
208V	0.055A
240V	0.05A
277V	0.04A
Input Watts	10W

EZ-Layout

Create Custom Lighting Layout

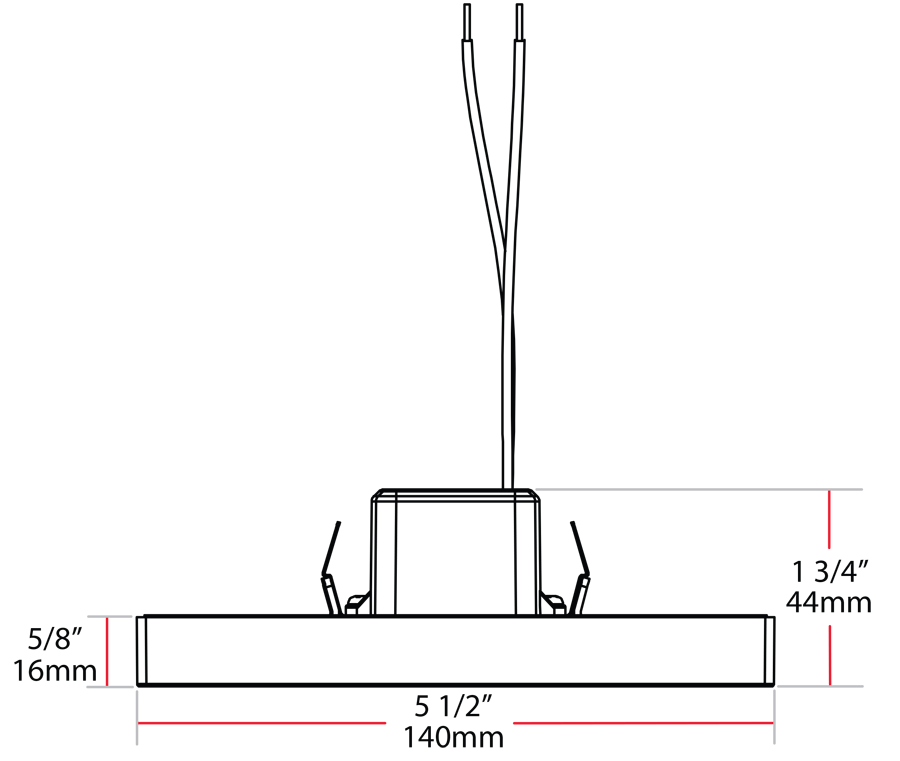

Dimensions

Weight: 0.7 lbs

Technical Specifications

Compliance

UL Listed & UL Classified

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLS0036

California Title 24

Can be used to conform with the requirements of California Title 24 Part 6.

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.

Power Factor

≥0.9

Input Voltage

120V through 277V

Operating Frequency (Hz)

60Hz

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

60W Incandescent

Construction

IC Rated

Suitable for direct contact with insulation

Air Tight

Housing certified Air Tight as per ASTM E283

Housing

Constructed from durable aluminum that provides thermal cooling. Housing frame built from non-electrically conductive polycarbonate.

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Diffuse Polystyrene lens produces smooth uniform light that is glare free

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Matte White

LED Characteristics

Beam Angle

120°

LEDs

Long-life, high-efficacy, surface-mount LEDs

R9 Value

High color performance with R9 greater than or equal to 50

Flicker

Silent and flicker free operations of less than 30%

Installation

Mounting

Jam clips included secure installation

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
