SM9S20940UNVTW

Spec Sheet IES File Compatibility List Photometrics Report Energy Star Instructions Spec Sheet EZ Layout

SM9S20940UNVTW

View Technical Specs

Performance

Watts
Color Temp	4000K (Neutral)
Lumens	1,677 lm
Efficacy	60
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.166A
208V	0.11A
240V	0.095A
277V	0.08A
Input Watts	20W

EZ-Layout

Create Custom Lighting Layout

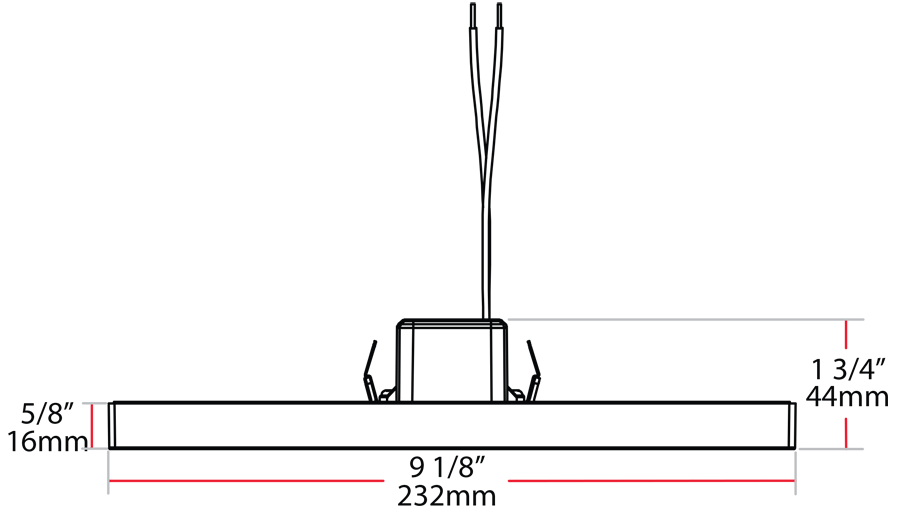

Dimensions

Weight: 1.3 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Construction

IC Rated

Suitable for direct contact with insulation

Air Tight

Housing certified Air Tight as per ASTM-E283

Housing

Durable aluminum

Trim Style

Smooth Trim

Cold Weather Starting

The minimum starting temperature is -22°F (-30°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Transparent Polymethyl Methacrylate (PMMA)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Socket Adapter

Edison 26 Medium Base Socket adapter included in box

LED Characteristics

Beam Angle

120°

LEDs

Long-life, high-efficacy, surface-mount LEDs

Installation

Mounting

Jam clips included secure installation

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
