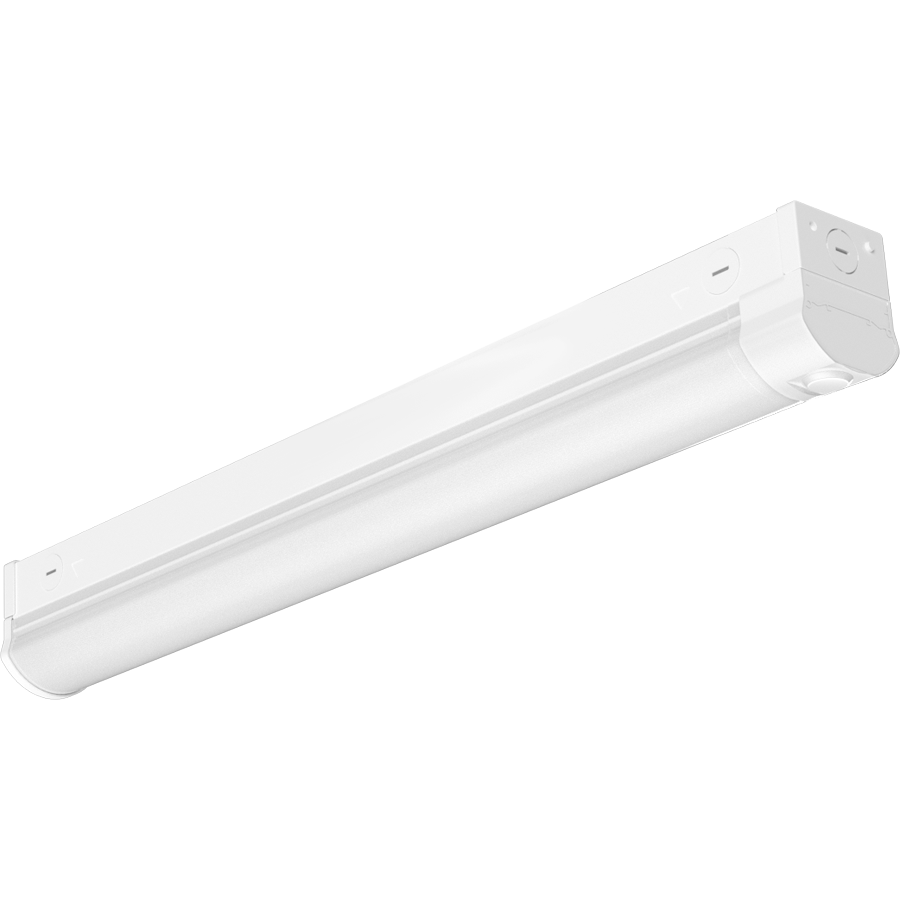

SR2/MVS
- 50,000-Hour LED lifespan
- 120-277V standard
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 19/14/10W |
| Color Temp | 3500K/4000K/5000K |
| Lumens | 1,552-2,998 lm |
| Efficacy | 140.6-160.6 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.16A/0.12A/0.08A |
| 208V | 0.09A/0.07A/0.05A |
| 240V | 0.08A/0.06A/0.04A |
| 277V | 0.07A/0.05A/0.04A |
| Input Watts | 10-20.6W |

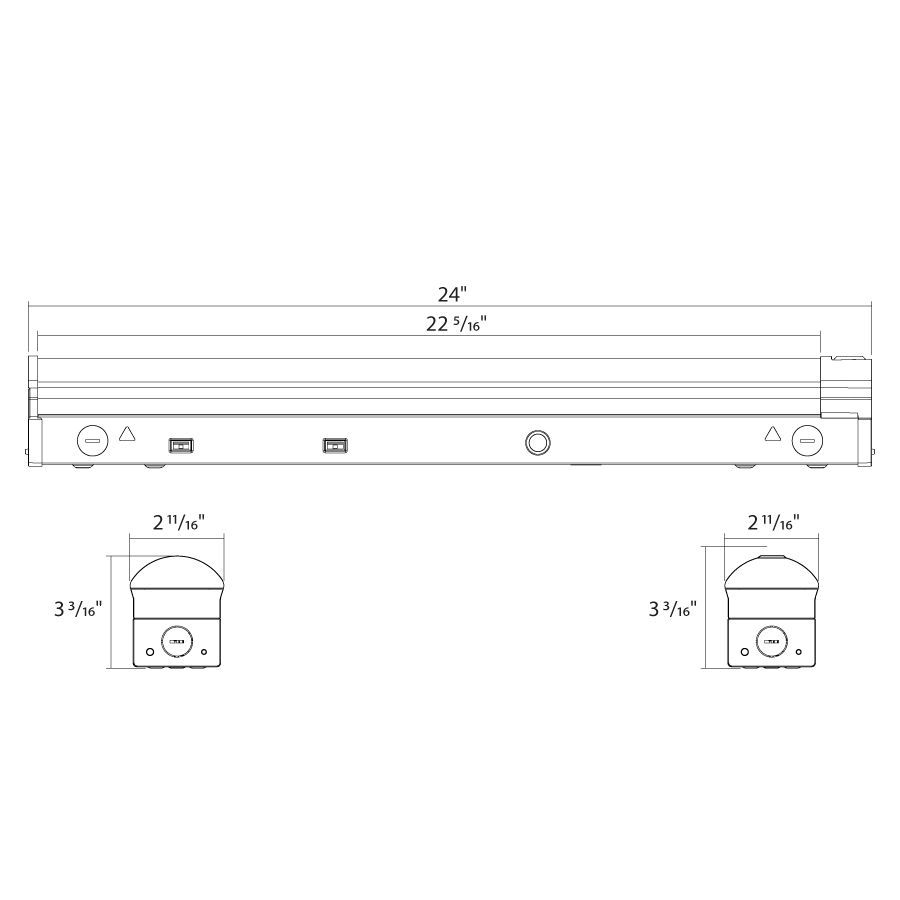

Dimensions
Weight: 2.5 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
19W/14W/10W (factory default 19W)
Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)
19W/14W/10W (factory default 19W)
Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-BY8SM3 (Direct Linear Ambient Luminaires)
DLC Product Code: S-DX6VKR (Stairwell and Passageway Luminaires)
DLC Product Code: S-BY8SM3 (Direct Linear Ambient Luminaires)
DLC Product Code: S-DX6VKR (Stairwell and Passageway Luminaires)
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Construction
Ambient Temperature
Max Power Temp Rating: 50°C (122°F)
Middle Power Temp Rating: 55°C (132°F)
Low Power Temp Rating: 62°C (144°F)
Middle Power Temp Rating: 55°C (132°F)
Low Power Temp Rating: 62°C (144°F)
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Lens
Polycarbonate lens
Housing
Sheet metal
Mounting
Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
19W: (1) F32T8
14W: (1) F32T8
10W: (1) F32T8
14W: (1) F32T8
10W: (1) F32T8
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.33% at 120V, 12.02% at 277V
Power Factor
99.8% at 120V, 98.22% at 277V
Surge Protection
L-N 1KV, L/N-G 2KV
Sensor Specifications
Remote Control Accessory
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
Operating Voltage
DC Input: 10.5-15V
Current>50mA
Current>50mA
Operating Temperature
Ta: -31° F (-35° C)* ~ +122° F(+50° C)
Sensor Warranty
5-year sensor warranty
Sensitivity Setting
25%/50%/75%/100%
Standby Period
0s/10s/30s/1min/5min/10min/30min/60min/+∞
Daylight
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Hold Time
5s/30s/1min/3min/5min/10min/20min/30min
Standby Dimming
10%/20%/30%/50%
Detection Angle
30° to 150° without glass cover
Detection Distance
Radius 9.84-22.96ft(3-7m)
Mounting Height
Max 49ft.(15m)
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Accessories
Suspended Mounting Kit: SR VHOOK KIT
Surface Mount Kit: SR JOIN KIT
Surface Mount Kit: SR JOIN KIT
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
