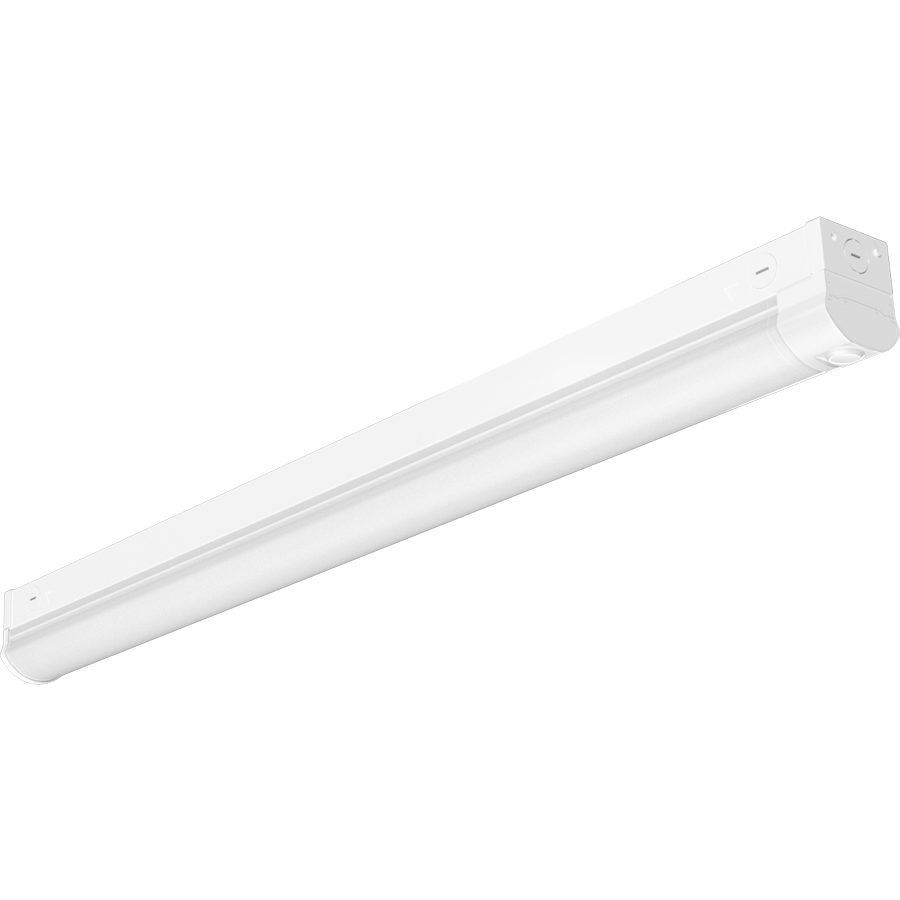

SR3/MVS

50,000-Hour LED lifespan

120-277V standard

0-10V dimming, standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	14/18/22/26/30W
Color Temp	3500/4000/5000/5700/6500K
Lumens	2036-4317 lm
Efficacy	142.4-146.2 lm/W
Color Accuracy	84-87 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.12A/0.15A/0.18A/0.22A/0.25A
208V	0.07A/0.09A/0.10A/0.13A/0.14A
240V	0.06A/0.07A/0.09A/0.11A/0.12A/0.13A
277V	0.06A/0.07A/0.09A/0.10A/0.11A
Input Watts	14-30W

EZ-Layout

Create Custom Lighting Layout

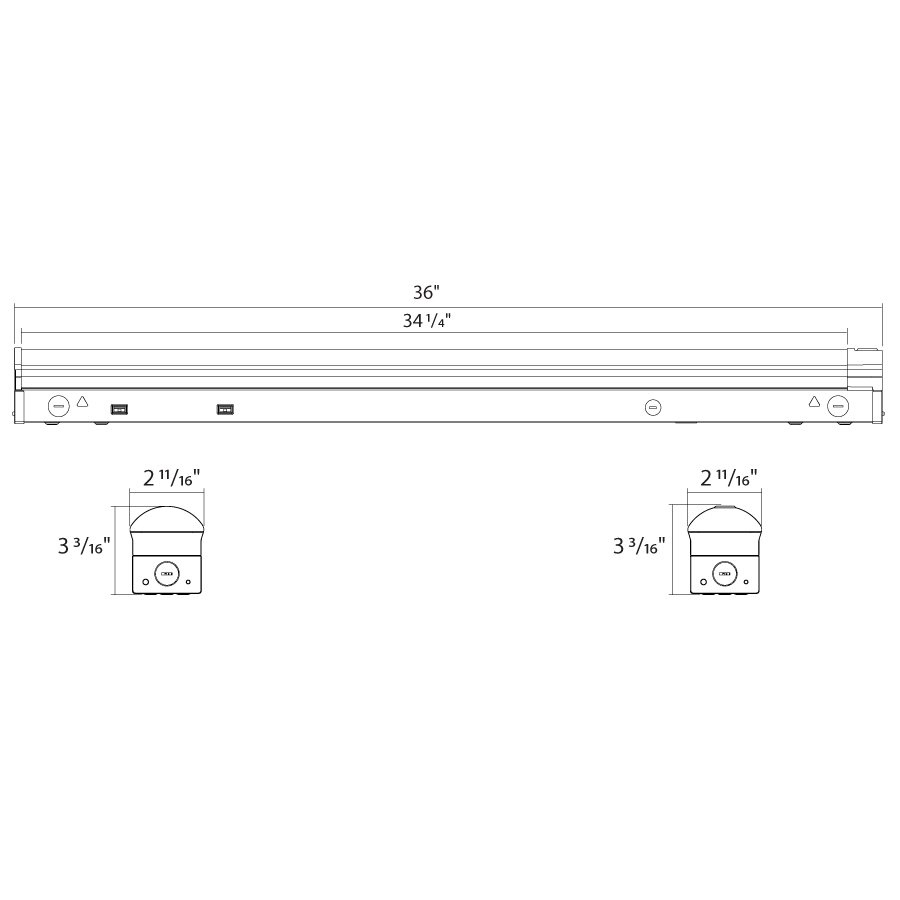

Dimensions

Weight: 2.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
30/26/22/18/14W (factory default 30W)
Color temperature selectable by 3500/4000/5000/5700/6500K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-QFCG72 (Direct Linear Ambient Luminaires)
DLC Product Code: S-9JQPSP (Stairwell and Passageway Luminaires)

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Construction

Ambient Temperature

Max Power Temp Rating: 50°C (122°F)
Middle Power Temp Rating: 55°C (132°F)
Low Power Temp Rating: 62°C (144°F)

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Lens

Polycarbonate lens

Housing

Galvanized steel (painting)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Electrical

Driver

Constant Current, Class II, 120-277V, 50/60 Hz:
30W: 120V: 0.27A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
26W: 120V: 0.22A, 208V: 0.13A, 240V: 0.11A, 277V: 0.09A
22W: 120V: 0.18A, 208V: 0.11A, 240V: 0.09A, 277V: 0.08A
18W: 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.06A
14W: 120V: 0.12A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

L-N 1KV, L/N-G 2KV

Installation

Mounting

Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).

Sensor Settings

Remote Control Accessory

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

Operating Voltage

DC Input: 10.5-15V
Current>50mA

Operating Temperature

Ta: -31° F (-35° C)* ~ +122° F(+50° C)

Sensor Warranty

5-year sensor warranty

Sensitivity Setting

25%/50%/75%/100%

Standby Period

0s/10s/30s/1min/5min/10min/30min/60min/+∞

Daylight

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

Hold Time

5s/30s/1min/3min/5min/10min/20min/30min

Standby Dimming

10%/20%/30%/50%

Detection Angle

30° to 150° without glass cover

Detection Distance

Radius 9.84-22.96ft(3-7m)

Mounting Height

Max 49ft.(15m)

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Accessories

Suspended Mounting Kit: SR VHOOK KIT
Surface Mount Kit: SR JOIN KIT
