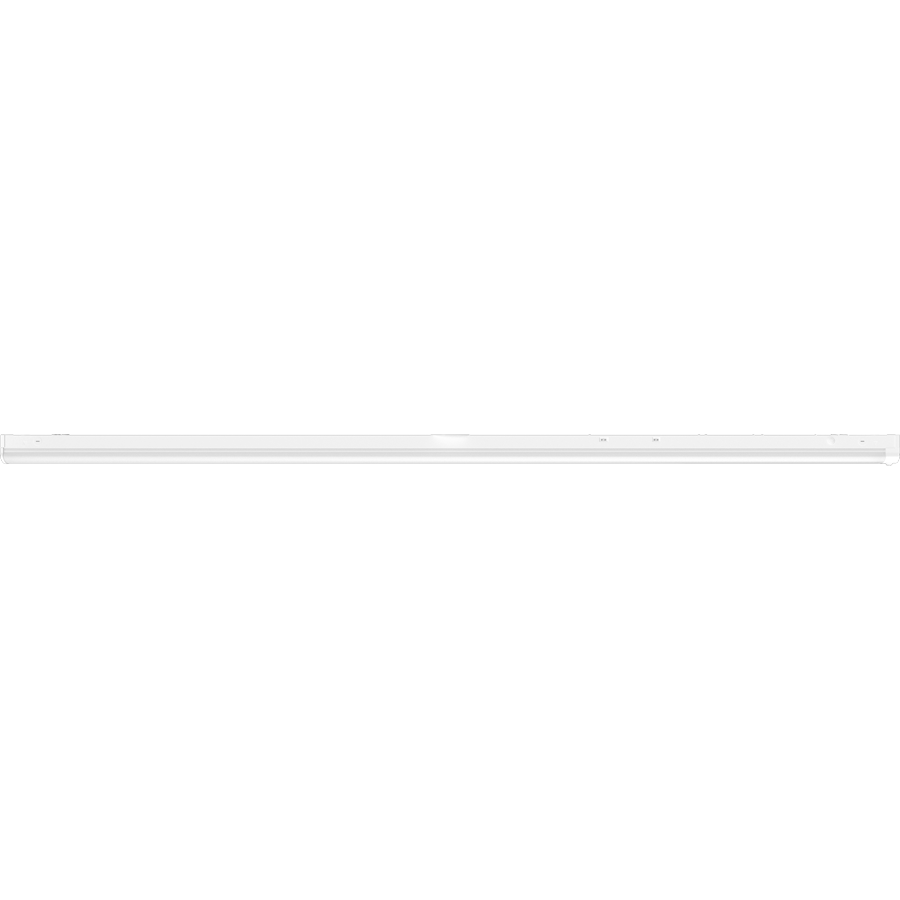

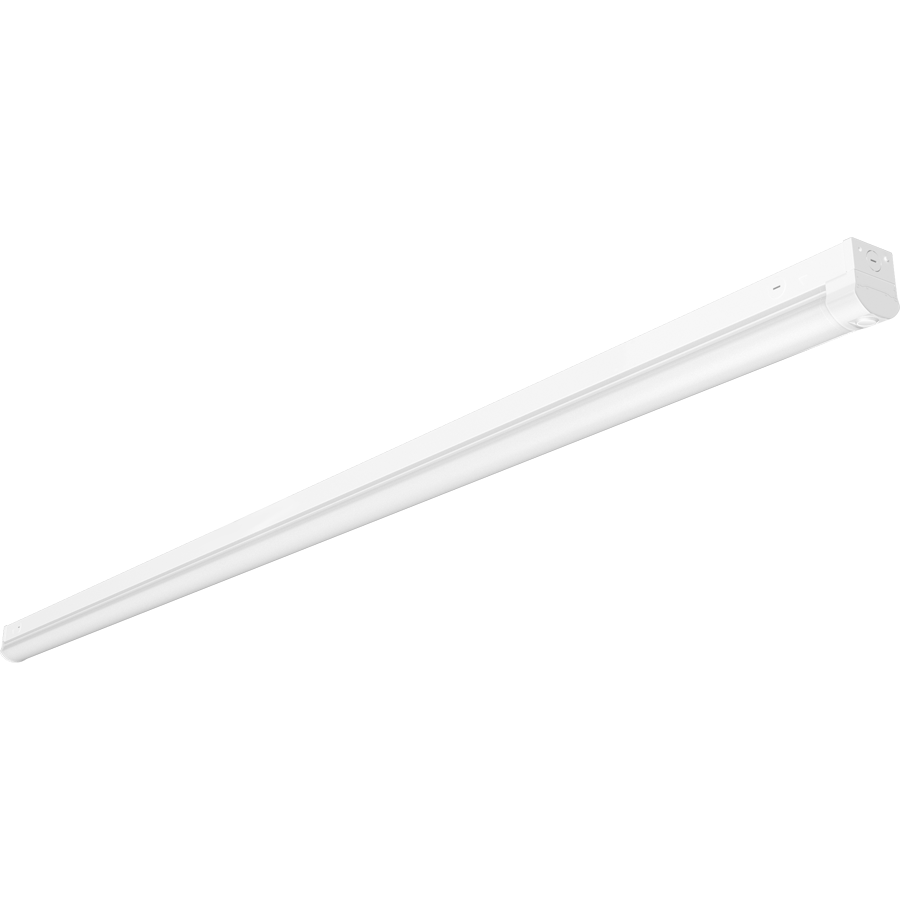

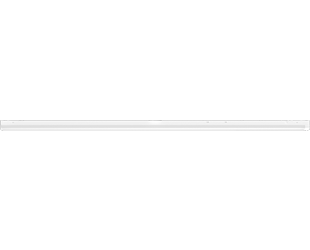

SR8/MVS/E

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SR8/MVS/E

50,000-Hour LED lifespan

120-277V standard

0-10V dimming, standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	60/50/40W
Color Temp	3500/4000/5000K
Lumens	5,854-8,986 lm
Efficacy	140.2-158.5 lm/W
Color Accuracy	84-85 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.50A/0.41A/0.33A
208V	0.29A/0.24A/0.19A
240V	0.25A/0.21A/0.17A
277V	0.22A/0.18A/0.14A
Input Watts	39.9-60.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 8.5 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
60W/50W/40W (factory default 60W)
Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-FP3EWO (Direct Linear Ambient Luminaires)
DLC Product Code: S-W019E6 (Stairwell and Passageway Luminaires)
DLC Product Code: S-XS42JY (Low-Bay Luminaires for Commercial and Industrial Buildings)

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

60W: (4) F32T8
50W: (3) F32T8
40W: (3) F32T8

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

7.52% at 120V, 7.96% at 277V

Power Factor

99.38% at 120V, 94.72% at 277V

Surge Protection

L-N 1KV, L/N-G 2KV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

60W: 0.171
50W: 0.2
40W: 0.247

Construction

Maximum Ambient Temperature

Suitable for use in up to 60°C (140°F)

Lens

Polycarbonate lens

Housing

Sheet metal

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).

Sensor Settings

Remote Control Accessory

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

Operating Voltage

DC Input: 10.5-15V
Current>50mA

Operating Temperature

Ta: -31° F (-35° C)* ~ +122° F(+50° C)

Sensor Warranty

5-year sensor warranty

Sensitivity Setting

25%/50%/75%/100%

Standby Period

0s/10s/30s/1min/5min/10min/30min/60min/+∞

Daylight

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

Hold Time

5s/30s/1min/3min/5min/10min/20min/30min

Standby Dimming

10%/20%/30%/50%

Detection Angle

30° to 150° without glass cover

Detection Distance

Radius 9.84-22.96ft(3-7m)

Mounting Height

Max 49ft.(15m)

Other

5 Yr Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Accessories

Suspended Mounting Kit: SR VHOOK KIT
Surface Mount Kit: SR JOIN KIT
