STL3FFLED18Y
STL3FFLED18Y
- Ultra-efficient LED and optical design
- 10-Year, No-Compromise Warranty
- Senses 180° out + 360° down for total detection
- Radio frequency immunity
- 6000 volt surge protection
- Temperature compensation
Performance
| Watts | 18W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,422 lm |
| Efficacy | 64.3 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.2A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 22.1W |
Dimensions
Weight: 6.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
2x75W PAR30
Optical
NEMA Type
7H x 6V Beam Spread
Construction
Airflow
Airflow technology heat sink for superior cooling
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Reflector
Semi-specular anodized aluminum
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Temperature Compensation
Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures
LED Characteristics
LEDs
18 Watt high performance LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Scanning LEDs
3 LEDs continually scan back-and-forth
Color Matched Lens
Dark lens with bronze units, white lens with white units
Electrical
Driver
Constant Current, Class 2, 100 - 277V, 50 - 60 Hz, 100 - 277VAC 0.4 Amps.
THD
10.6% at 120V
Surge Protection
6kV
Voltage
120V AC 60Hz
Power Consumption
1W
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
Installation
Mounting
Heavy-duty mounting arm with "O" ring seal & stainless steel screw. CU4 plate allows the sensor to be mounted under a soffit.
Sensor Settings
Time Adjustment
5 seconds to 12 minutes
Wide Sensitivity Control
Adjustable from 100% to 30%
Evening Timer
Keeps lights on for 1-8 hours after dusk. Then sensor is motion activated until dawn.
Set it and forget it
STL360's full coverage pattern reduces need for aiming and adjustment
Advanced Detection Logic
Minimizes false triggers
Sensor Lens Masks
Customized press apply lens mask included to reduce coverage easily
Sensor RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Photoelectric Control
Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
Sensor Detection
Senses 180° out and 360° down for Total Detection
Sensor Switching Capacity
8 Amps, 750W LED @120 Volts 0.8pF Driver; 8 Amps, 500W LED @120 Volts 0.5pF Driver.
Other
Patents
The FFLED18 design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico. RAB sensor designs are protected under U.S. and International Intellectual Property laws.
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
STL3FFLED18Y
Outdoor Motion Sensors Outsensors Residential 1422 Lumens Lsensor Ffled18 18W Warm Led With Stl360 Sensor Bronze

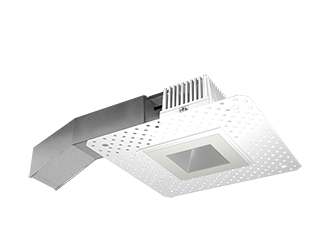

RDDLED2S-10D-30Y-M-STL
Recessed Downlights 940 Lumens Rddled 2 Inches Square 10W Dimmable 30 Degree 3000K 80Cri Matte Trim Cone Silver Trim Ring Trimless

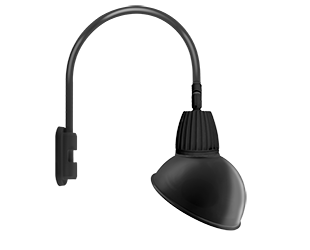

GN5LED13YADB
