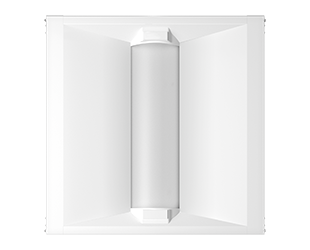

SWISH34-2X2
SWISH34-2X2
30W 3500/4000/5000K
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 5-Year, limited warranty
Performance
| Watts | 30/25/18W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2,397-3,700 lm |
| Efficacy | 125.3-135.5 lm/W |
| Color Accuracy | 85-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.25A/0.21A/0.15A |
| 208V | 0.14A/0.12A/0.08A |
| 240V | 0.13A/0.10A/0.08A |
| 277V | 0.11A/0.09A/0.06A |
| Input Watts | 17.69-29.02W |
Dimensions
Weight: 5.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
30/25/18W (factory default 30W)
Color temperature selectable 3500K, 4000K and 5000K (factory default 4000K)
30/25/18W (factory default 30W)
Color temperature selectable 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IC Rated
Suitable for direct contact with insulation
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
30W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
25W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
18W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.06A
25W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.21A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
18W: Constant Current, Isolated/Class 2, 120-277V, 50/60 Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.74% at 120V, 4.41% at 277V
Power Factor
99.7% at 120V, 96.2% at 277V
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
L-N:2.5 kV,L/N-GND:2.5 kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Sheet metal
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compatible Accessories
SMKEZPAN[2X2][1X4][2X4]
Surface mounting kit
EMB-[9][15][25]
0-10V Dimmable 120-347V emergency driver
Surface mounting kit
EMB-[9][15][25]
0-10V Dimmable 120-347V emergency driver
