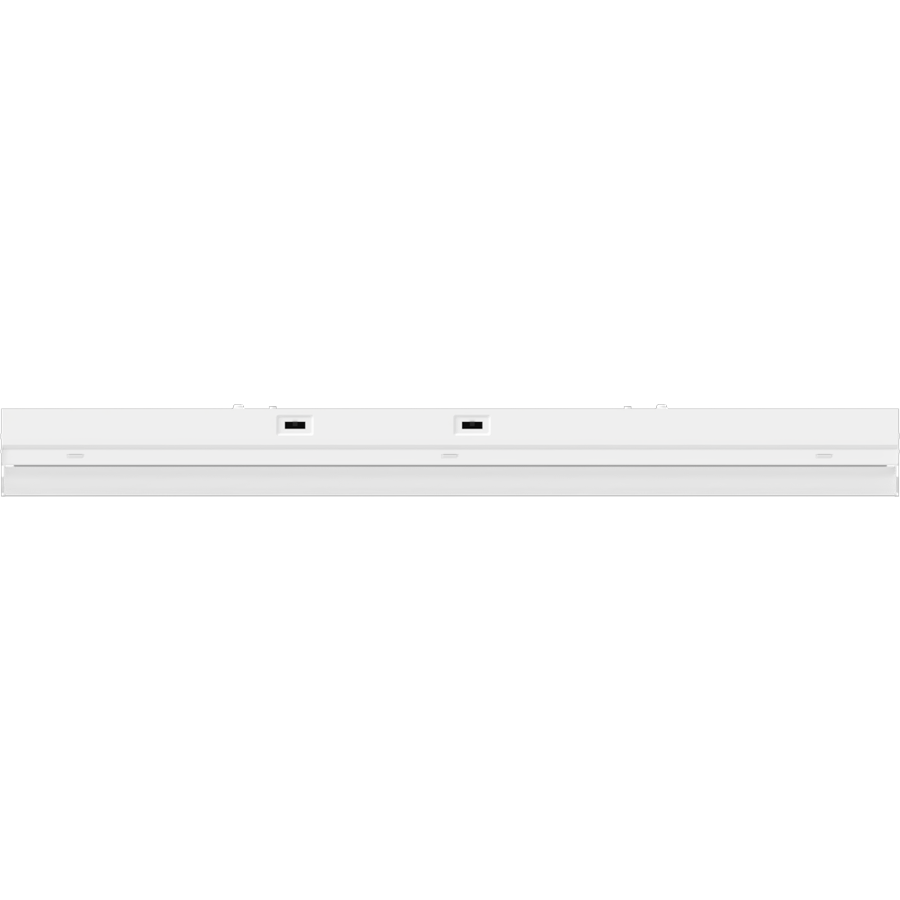

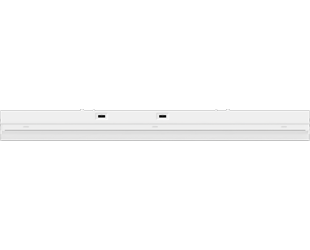

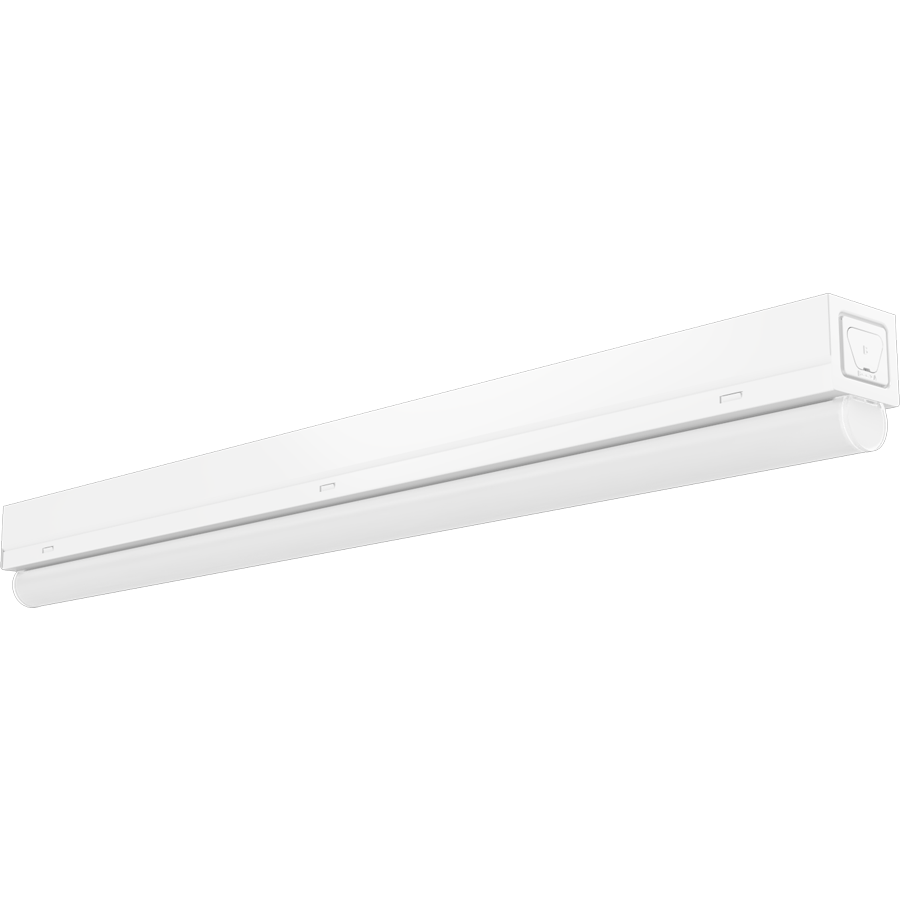

STRP2
STRP2
- 100,000-Hour LED lifespan
- 120-277V standard
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 10/8/06W |
| Color Temp | 3500K/4000K/5000K |
| Lumens | 881-1558 lm |
| Efficacy | 137.6-152.8 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.05A/0.06A/0.08A |
| 208V | 0.04A/0.05A |
| 240V | 0.03A/0.04A/0.05A |
| 277V | 0.03A/0.04A |
| Input Watts | 6.4-10.4W |
Dimensions
Weight: 1.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
10/8/6W (factory default 10W)
Color temperature selectable by 3500/4000/5000 (factory default 4000K)
10/8/6W (factory default 10W)
Color temperature selectable by 3500/4000/5000 (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-LHRY68
DLC Product Code: S-LHRY68
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz:
10W: 120V: 0.083A, 208V: 0.048A, 240V: 0.042A, 277V: 0.036A
8W: 120V: 0.667A, 208V: 0.038A, 240V: 0.333A, 277V: 0.029A
6W: 120V: 0.050A, 208V: 0.029A, 240V: 0.025A, 277V: 0.022A
10W: 120V: 0.083A, 208V: 0.048A, 240V: 0.042A, 277V: 0.036A
8W: 120V: 0.667A, 208V: 0.038A, 240V: 0.333A, 277V: 0.029A
6W: 120V: 0.050A, 208V: 0.029A, 240V: 0.025A, 277V: 0.022A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.37% at 120V, 10.43% at 277V
Power Factor
99.4% at 120V, 92.4% at 277V
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
DM: 1 kV
CM: 2 kV
CM: 2 kV
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Polycarbonate lens
Housing
Metal
Reflector
Metal
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
