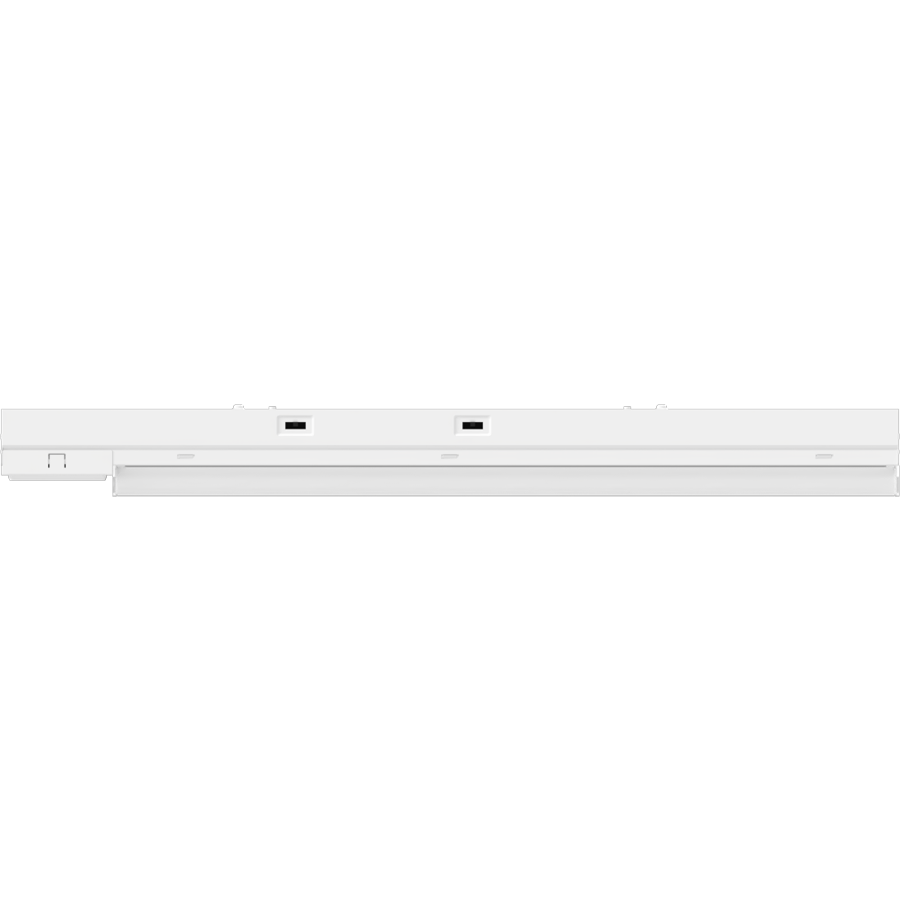

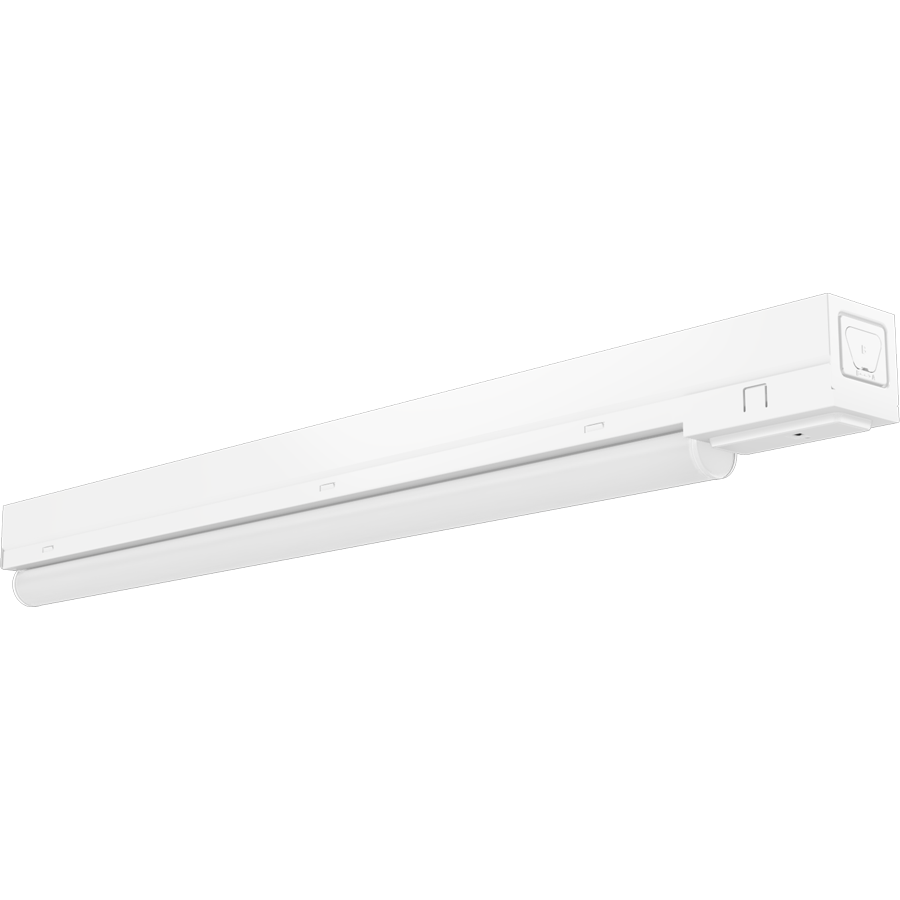

STRP2/MVS

100,000-Hour LED lifespan

120-277V standard

0-10V dimming, standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	10/8/06W
Color Temp	3500K/4000K/5000K
Lumens	834-1442 lm
Efficacy	136.7-151.8 lm/W
Color Accuracy	83-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.05A/0.06A/0.08A
208V	0.03A/0.04A/0.05A
240V	0.03A/0.04A
277V	0.03A/0.04A
Input Watts	6-9.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
10/8/6W (factory default 10W)
Color temperature selectable by 3500/4000/5000 (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

CCEA Compliant

Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz:
10W: 120V: 0.083A, 208V: 0.048A, 240V: 0.042A, 277V: 0.036A
8W: 120V: 0.667A, 208V: 0.038A, 240V: 0.333A, 277V: 0.029A
6W: 120V: 0.050A, 208V: 0.029A, 240V: 0.025A, 277V: 0.022A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

6.37% at 120V, 10.43% at 277V

Power Factor

99.4% at 120V, 92.4% at 277V

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

DM: 1 kV
CM: 2 kV

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Polycarbonate lens

Housing

Metal

Reflector

Metal

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).

Sensor Settings

Operating Voltage

DC Input: 10.5-15V
Current>50mA

Operating Current

≤25mA

Output

Dim/0-10V

Microwave Frequency

5.8GHz±75MHz

Microwave Power

<0.3mW

Stand-by Power

≤0.5W

Detection Area

25%/50%/75%/100%

Hold Time

5s/30s/1min/3min/5min/10min/20min/30min

Daylight Threshold

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable

Stand-by Period

0s/10s/30s/1min/5min/10min/30min/+∞

Stand-by Dimming Level

10%/20%/30%/50%

Operating Temperature

-20°C~+60°C

Mounting Height

Max 12m/39.37 ft. Ceiling Mounted

Detection Range

Max 14m/45.92 ft Ceiling Mounted

Motion Detection

0.5~1.5m/s

Lux On-Off

Adopted dual PD technology. GUS17-MVS is able to differenciate artificial light brightness from natural light after installed inside.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
