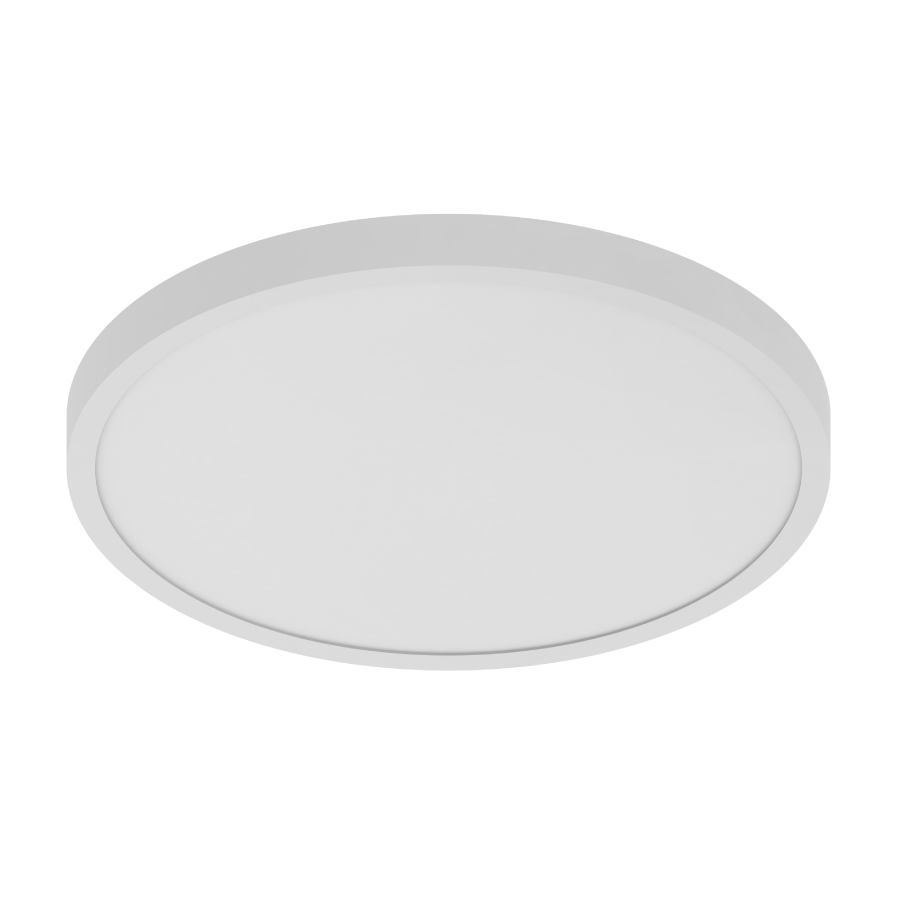

SUMO-R-19/D10

Spec Sheet IES File Dimmer Compatibility List Downlight Accessory Compatibility List LM79 Instructions Dimmer List Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

SUMO-R-19/D10

Select from 5 field-adjustable color temperatures 5000K, 4000K, 3500K, 3000K, or 2700K

Suitable for indoor/outdoor applications in dry, damp, or wet environments

0-10V and TRIAC/ELV dims down to 10%. See Dimmer Compatibility List

Meets California Title 24 requirements

50,000-Hour LED lifespan

5-Year, No-Compromise Warranty

120V-277V

View Technical Specs

View Price & Availability

Performance

Watts	30W
Color Temp	2700/3000/3500/4000/5000K
Lumens	2,250-2,450 lm
Efficacy	75-82 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.28A
208V	0.15A
240V	0.13A
277V	0.12A
Input Watts	30W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.8 lbs

Technical Specifications

Performance

Product Type

Edge-lit Surface Mount

Input Wattage

30W

Lumens

5000K: 2,300lm
4000K: 2,450lm
3500K: 2,450lm
3000K: 2,350lm
2700K: 2,250lm

Efficacy

5000K: 77lm/W
4000K: 82lm/W
3500K: 82lm/W
3000K: 78lm/W
2700K: 75lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

Equivalent to 150W Incandescent

Electrical

Driver

Constant Current, Class 2, 50/60 Hz 120-277V, 120V: 0.28A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, 0-10V and TRIAC/ELV dims down to 10%.
See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Surge Protection

2.5kV

LED Characteristics

Color Temperature

Field Adjustable: 2700K,3000K,3500K,4000K,5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than or equal to 50

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Surface Mount

Construction

Size

19"

Shape

Round

Finish

Formulated for high durability and long-lasting color

Housing Material

Metal

Trim Style

Smooth

Lens

Frosted lens constructed from polycarbonate material diffuses light evenly and smoothly

Compliance

Listings

UL Listed

Environment

Suitable for use in indoor and outdoor application in dry, damp, and wet environments

UV Protection

Fade-resistant powder spray polyester

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
