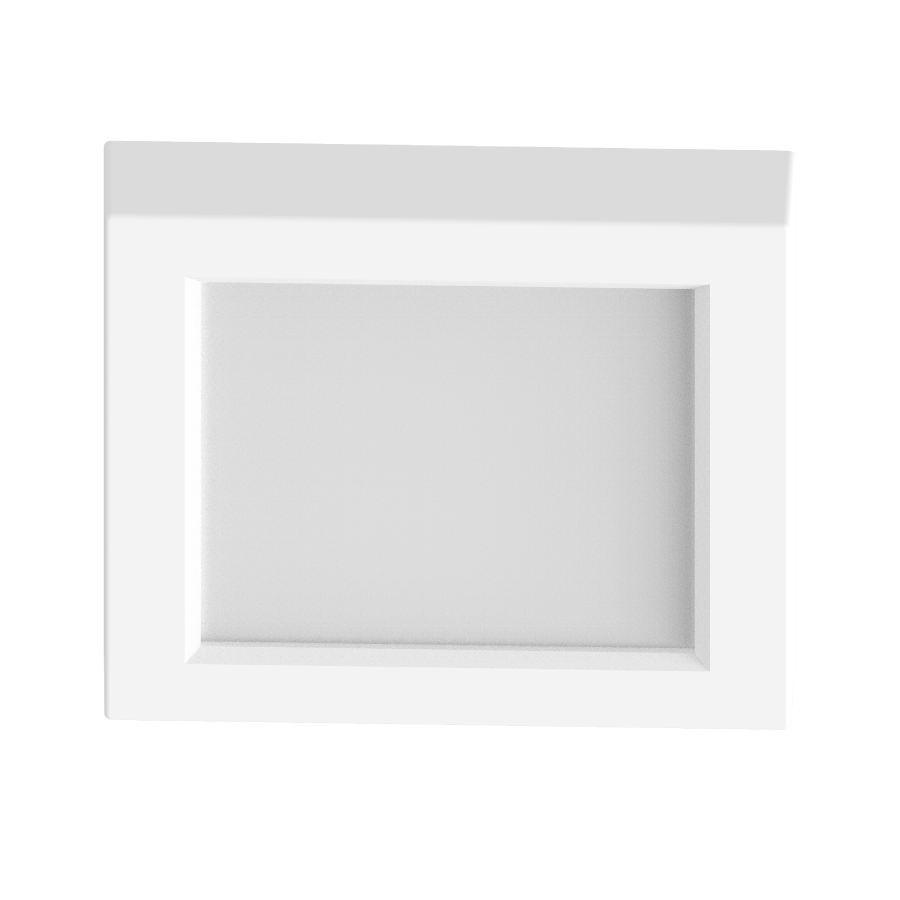

SUMOFA-7S-13-9CCT-120-W

Spec Sheet IES File LM79 Instructions Family Spec Sheet Spec Sheet EZ Layout

Surface or Recessed mounting options

Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K

Suitable for wet and damp locations

Meets California Title 24 requirements

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	2700/3000/3500/4000/5000K
Lumens	850 lm
Efficacy	65.4
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.12A
208V
240V
277V
Input Watts	12.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.9 lbs

Technical Specifications

Performance

Description

The SUMO offers a sleek, low-profile design that adds a modern look to any space. They are easy to install with field adjustable color temperature, affordable, and a stylish options for new construction or retrofit. Mounting kit for recessed housing sold separately.

Product Type

Surface & Flush Mounts

Input Wattage

13W

Lumens

850lm

Efficacy

65.4lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Energy Star ID

2389549

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 10%.

THD

≤20%

Power Factor

≥0.9

Flicker

≤30%

Input Voltage

120V

Operating Frequency

60Hz

Construction

Material

Plastic

Trim Style

Smooth Trim

Shape

Square

Operating Temperature

-4°F(-20°C) to 104°F (40°C )

Size

LED Characteristics

Beam Angle

110°

R9 Value

High color performance with R9 greater than or equal to 50

Installation

Mounting

Surface and recessed mount

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
