SWISH2X2-29/D10/LCBS/E2
SWISH2X2-29/D10/LCBS/E2
- Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
- Use mobile device to configure features for On/Off Control, Dim Level, Schedules, Scenes, and more.
- Meets Luminaire Level Lighting Control (LLLC) requirements
- Integrated passive infrared or microwave sensor for added savings
- Use mobile device to configure sensor settings for sensitivity, timeout and actions.
- Includes emergency battery backup
Performance
| Watts | 29W |
| Color Temp | 5000K (Cool) |
| Lumens | 4,037 lm |
| Efficacy | 133.2 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.14A |
| 240V | 0.12A |
| 277V | 0.11A |
| Input Watts | 30.3W |
Dimensions
Weight: 17.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PKGP14N2
DLC Product Code: PKGP14N2
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.66% at 120V, 6.38% at 277V
Power Factor
99.5% at 120V, 96.4% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Surge Protection
2.5kV
Battery Backup Light Loss Factor
0.43
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Ambient Temperature
Suitable for use in up to 40°C (104°F)
IC Rated
Suitable for direct contact with insulation
Housing
Die-formed, 20-gauge, cold-rolled steel
Reflector
High-reflectance, powder-coated finish, optimized for uniform light distribution
Lens
Snap-in, frosted polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Integral T-grid clips make installation easy and secure
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Lightcloud
Lightcloud Blue Sensor Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
This design is protected by patents pending in US, Canada, China, Taiwan and Mexico
Recently Viewed Products
SWISH2X2-29/D10/LCBS/E2
Panels & Troffers 4037 Lumens Swish2X2 29W 5000K 0-10V Dimming 120V-277V Lightcloud Blue Sensor Battery Backup

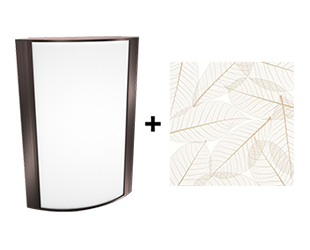

HALVS10L940-NL-A
