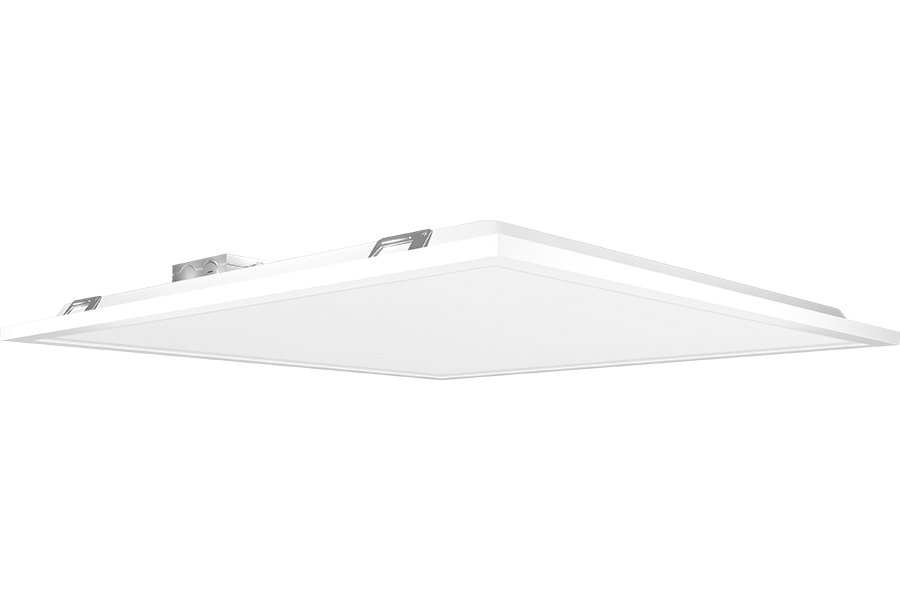

T17-2X2-40C
T17-2X2-40C
- 30,000-Hour LED lifespan
- 2-year, limited warranty
- 8 per case, must order in case quantity increments
Performance
| Watts | 40W |
| Color Temp | 5700K |
| Lumens | 2,953 lm |
| Efficacy | 75.7 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 30,000 Hours |
| Type | Constant Current |
| 120V | 0.33A |
| 208V | 0.20A |
| 240V | 0.17A |
| 277V | 0.15A |
| Input Watts | 39W |
Dimensions
Weight: 5.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Performance
Lifespan
30,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Lens
Frosted polystyrene
Operating Temperature
-4°F(-20°C) to 104°F (40°C )
Housing
Plastic frame & galvanized steel back housing
Installation
Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Recessed ceiling
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 120-277V, 120V: 0.33A, 208V: 0.20A, 240V: 0.17A, 277V: 0.15A
THD
8.66% at 120V, 15.07% at 277V
Power Factor
99.1% at 120V, 95.8% at 277V
