T8-12-48G-835-HYB

Spec Sheet Dimmer Compatibility List Ballast Compatibility List LM79 Instructions FCC Caution Spec Sheet

T8-12-48G-835-HYB

Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W

TYPE A - Plug and play compatible with most common commercial instant start T8 electronic ballasts

TYPE B - can be wired directly to line voltage 120-277V. Can be wired using Single or Double ended method.

Works with both shunted and non-shunted sockets

Rated for use in enclosed and open fixtures in dry or damp locations

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp	3500K
Lumens	1,800 lm
Efficacy	150
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Type A: Ballast dependent Type B: 120-277V
Power Factor	N/A
Flicker	N/A
THDi	N/A

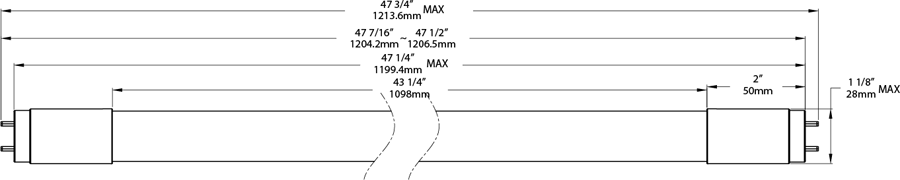

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

Linear Tube

Wattage Equivalency

32W Fluorescent

Input Wattage

12W

Lumens

1,800lm

Efficacy

150lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

Type A: Dependent on ballast
Type B: <25%

Power Factor

Type A: Dependent on ballast
Type B: >0.9

Dimmable

Type A: Yes
Type B: No

Dimming Type

Compatible 0-10V dimmer and ballast, see Dimmer Compatibility List

Input Voltage

Type A: Ballast dependent
Type B: 120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

Type B: 105mA

Input Current @ 208V (mA)

Type B: 0.06mA

Input Current @ 240V (mA)

Type B: 0.06mA

Input Current @ 277V (mA)

Type B: 0.05mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

Type A: Depends on ballast ~<15%
Type B: 50%-70%

LED Characteristics

Color Temperature

3500K

Color Accuracy (CRI)

>80 CRI

R9 Value

High color performance with R9 no less than 0

Color Consistency

<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type A+B, Hybrid

Construction

Base Type

G13

Nominal Length

4 ft

Bulb Shape

Endcap Material

Plastic

Enclosure Material

Glass

Lens Finish

Frosted

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use in dry and damp environments

Fixture Rating

Suitable for use in enclosed fixtures

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PLLO0EYODJFR

Other

Compatible Products

See Dimmer and Ballast compatibility lists.

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Note

All values are typical (tolerance +/- 10%)
