• Replacement for conventional fluorescent T8 and T12 linear tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Single ended and double ended wiring method
  • Works with non-shunted sockets and shunted sockets.
  • Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Shatter resistant Coated Glass designed to pass drop tests of 6' on hard surface
  • Internal thermal fuse for added safety
  • Low Flicker less than 5%
  • UL Classified, DLC Listed
View Technical Specs
Performance
Watts 12W
Color Temp 4000K (Cool White)
Lumens 1,800 lm
Efficacy 150 lm/W
Color Accuracy 80 CRI
L70 Lifespan 50,000 Hours
Type
120V
208V
240V
277V
Input Watts 12W
Dimensions

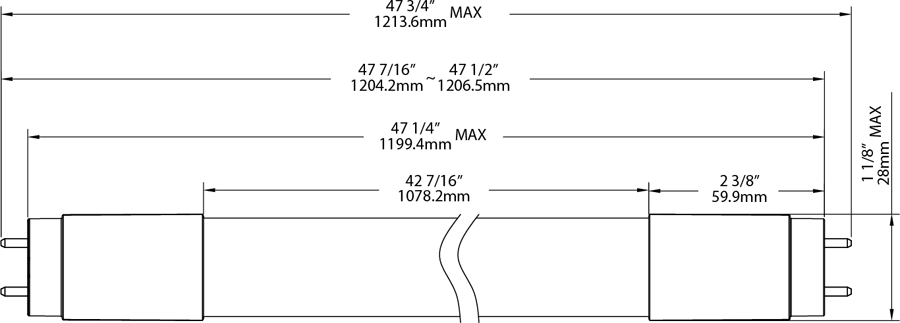

Link to Dimension Drawing

Weight: 0.6 lbs

Technical Specifications
Performance
Product Type
Linear
Input Wattage
12W
Wattage Equivalency
32W Fluorescent
Construction
Material
Coated Glass
Bulb Shape
T8
Nominal Length
4 ft
Finish
Frosted
