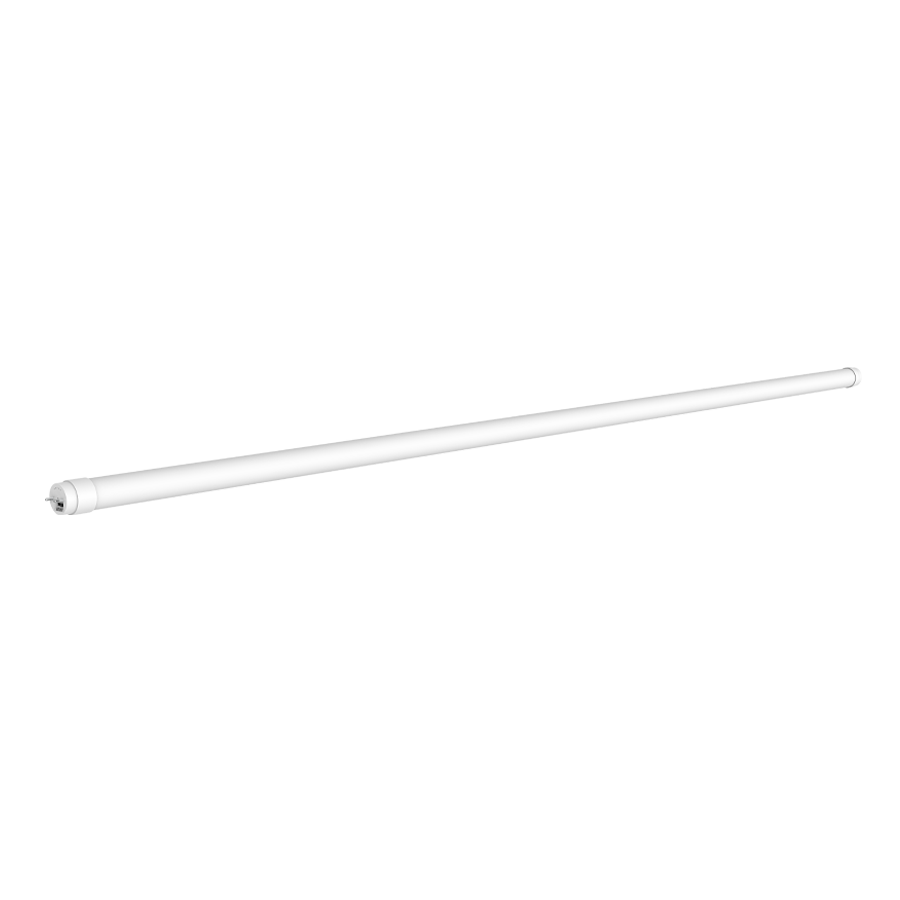

T8-15-48GC-8CCT-HYB

Direct replacement for fluorescent lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W

TYPE A - Plug-and-play compatible with most common commercial T8 electronic ballasts

TYPE B - Can be wired directly to line voltage 120-277V. Can be wired using single- or double-ended method

Shatter resistant PET Coating makes these tubes perfect for demanding applications

5 color temperatures in 1 SKU (3000/3500/4000/5000/6500K)

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	3000/3500/4000/5000/6500K
Lumens	2,100 lm
Efficacy	140
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	15W

EZ-Layout

Create Custom Lighting Layout

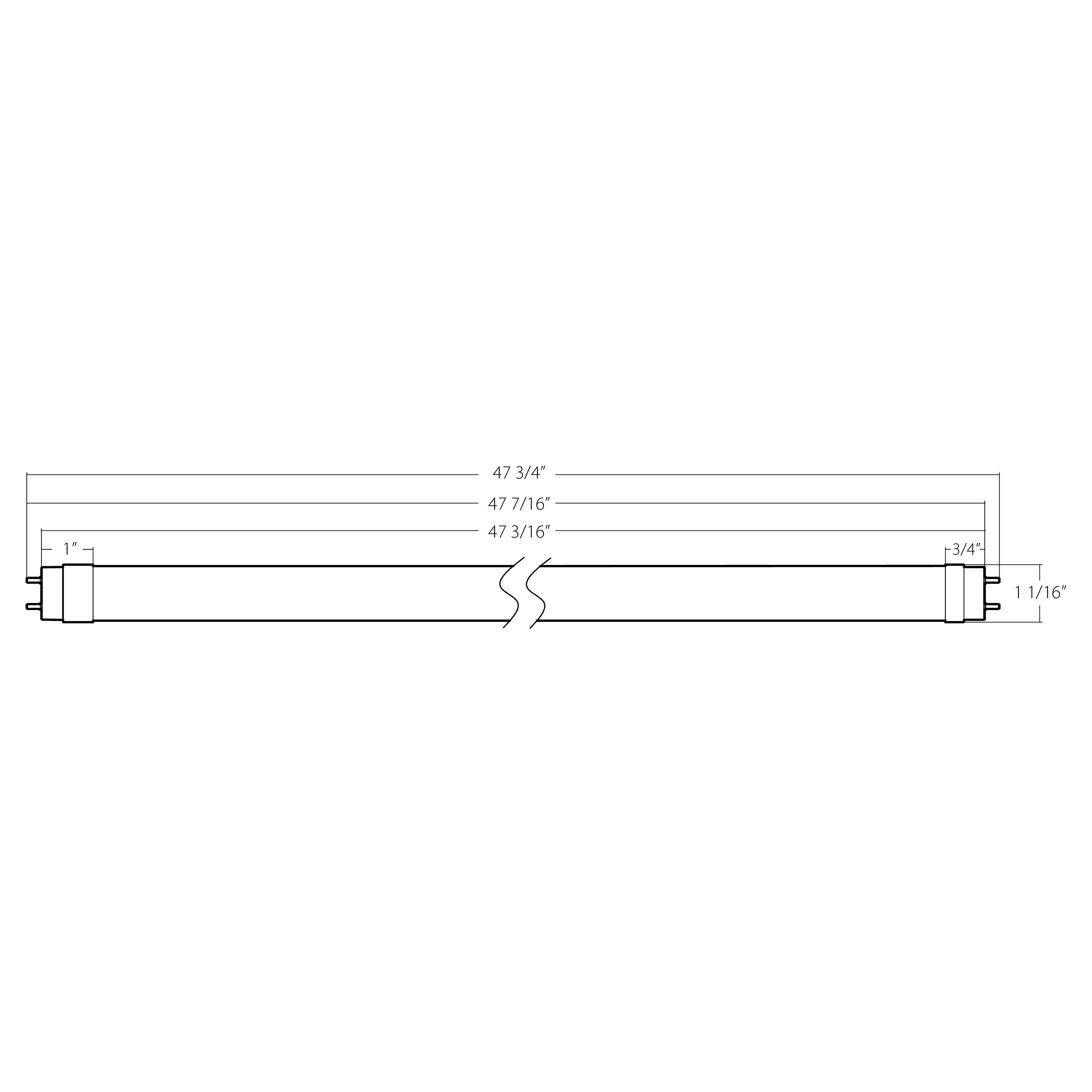

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Linear Tube

Description

Hybrid Type A/B tubes allow installation on the ballast or direct wiring to line voltage. Now available with adjustable 5 CCT switch in clear or frosted lens.

Wattage Equivalency

32W Fluorescent

Input Wattage

15W

Lumens (Nominal)

2,100lm

Efficacy

140lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

25%

Power Factor

>0.9

Dimmable

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

<40%

LED Characteristics

Beam Angle

220°

Color Temperature

Field adjustable via dip switch 3000/3500/4000/5000/6500K

Color Accuracy (CRI)

80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type A+B, Hybrid

Base Type

G13

Construction

Length

4 ft

Shape

Finish

White

Endcap Material

Plastic

Enclosure Material

Coated Glass

Lens Finish

Frosted

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

Energy Star Approved

DLC Listed

Certification Model Number

T8-15-48GC-8CCT-HYB

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
