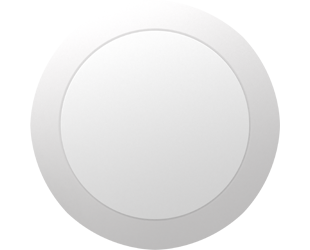

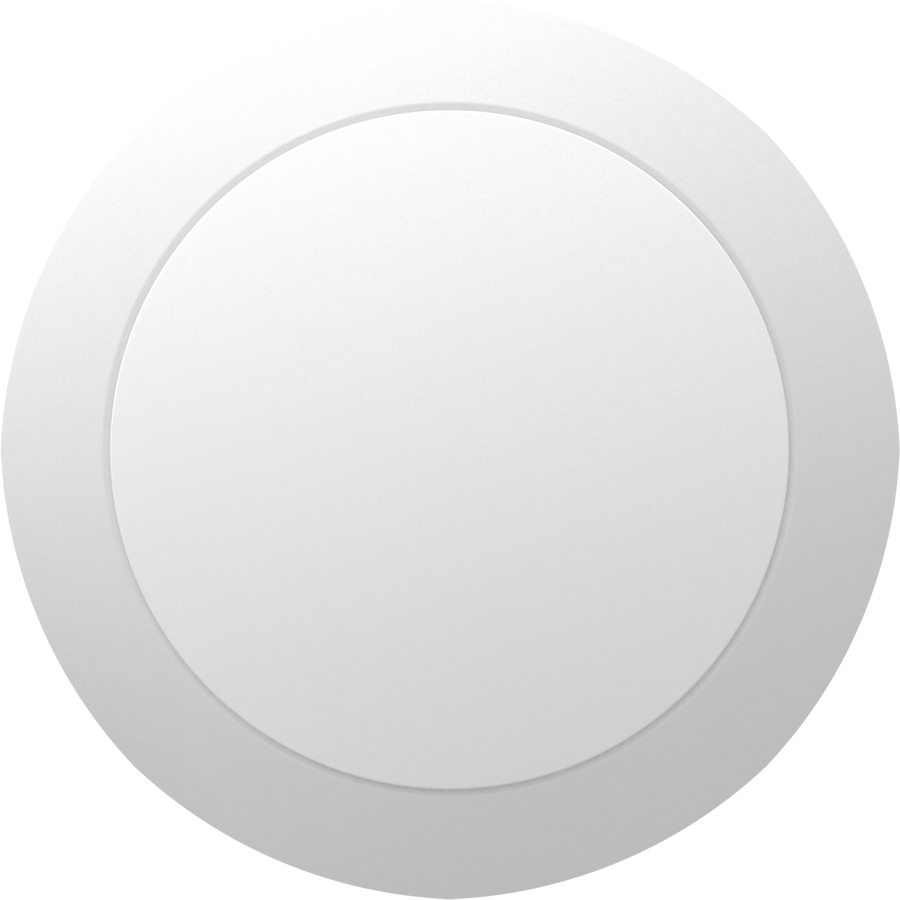

DISK34-8

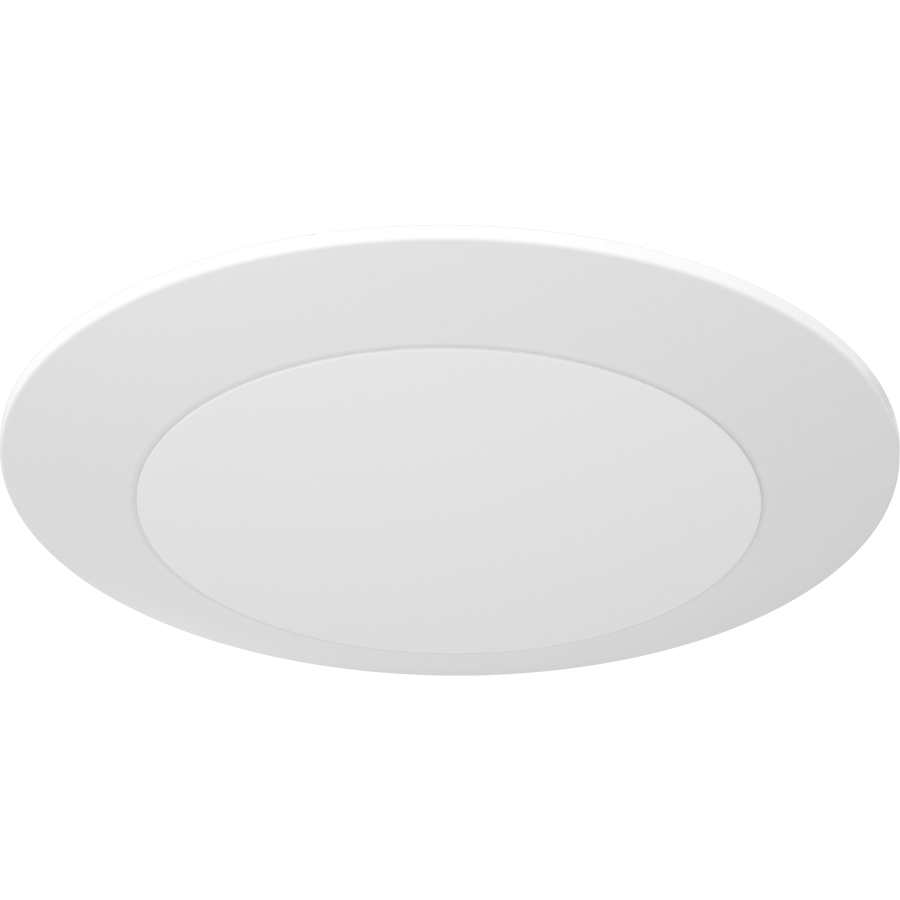

Low-profile, back-lit design made of durable thermoplastic housing with frosted lens

5 Color temperature selectable: 2700K, 3000K, 3500K, 4000K, & 5000K

New construction or retrofit applications

Installs on standard junction boxes

Suitable for indoor/outdoor use in dry, damp, and wet locations

View Technical Specs

View Price & Availability

Performance

Watts	18W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,500 lm
Efficacy	83
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	18W

EZ-Layout

Create Custom Lighting Layout

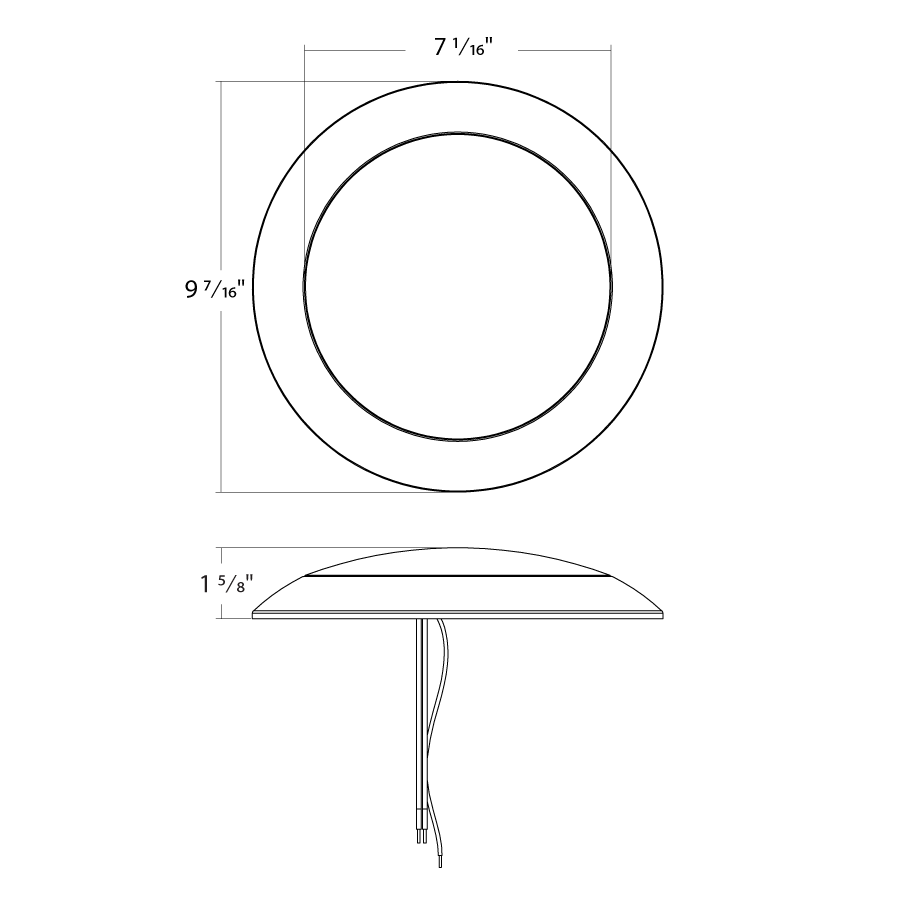

Dimensions

Weight: 1.1 lbs

Technical Specifications

Performance

Product Type

Disk Surface Mount

Wattage Equivalency

100W Incandescent

Input Wattage

18W

Lumens

1,500lm

Lumens (Measured)

2700K: 1533lm
3000K: 1604lm
3500K: 1656lm
4000K: 1675lm
5000K: 1643lm

Efficacy

83lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

165mA

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

110°±10°

Color Temperature

Field-adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Surface mount

Construction

Size

Shape

Round

Finish

White

Material

Metal+Plastic

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLS0177(DISK34-8)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
