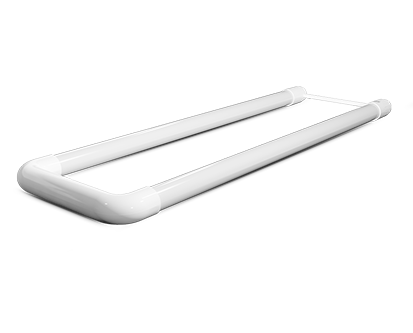

T8-15-U6GC-835-EXT

Spec Sheet IES File Dimmer Compatibility List LM79 Instructions FCC Caution Spec Sheet EZ Layout

T8-15-U6GC-835-EXT

Compatible with RAB Type C T8 LED Lamps only

Meets FCC Part 15 (Class B) Consumer Limits

Short Circuit Overload and Open Load Protection

Suitable for Dry and Damp Locations

UL8750 Recognized Component

Dimmable with 0-10V Dimmer

Maximum Case Temperature: 75°C/167°F

Input Frequency: 50/60 Hz

THD: < 20%

Type P

Output Class 2

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	3500K
Lumens	2,100 lm
Efficacy	127
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Driver Dependent
Power Factor	0.9
Flicker	N/A
THDi	20

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

15W

Lumens

2,100lm

Efficacy

127lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

Certification Model Number

T10338(T8-15-U6GC-835-EXT)

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LED Characteristics

Color Temperature

3500K

Color Accuracy (CRI)

≥80 CRI

Beam Angle

160°

Construction

Shape

Endcap Material

Polycarbonate

Enclosure Material

Glass & Polycarbonate

Installation

Base Type

G13

Electrical

THD

20%

Power Factor

0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

Driver Dependent

Operating Frequency

50/60Hz

Dimming

Yes with 0-10V dimmer. See Dimmer Compatibility List.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
