T8-26-48G-840-EXT-2L-DIM
T8-26-48G-840-EXT-2L-DIM
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Dedicated External driver
- Can be installed using single ended or double ended wiring method
- Works with non-shunted sockets AND shunted sockets
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Compatible with 0-10V dimming systems
- Low Flicker less than 1%
- Driver and Tubes come packaged as Kits
Performance
| Watts | 13W |
| Color Temp | 4000K (Cool White) |
| Lumens | 1,800 lm |
| Efficacy | 138.5 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 13W |

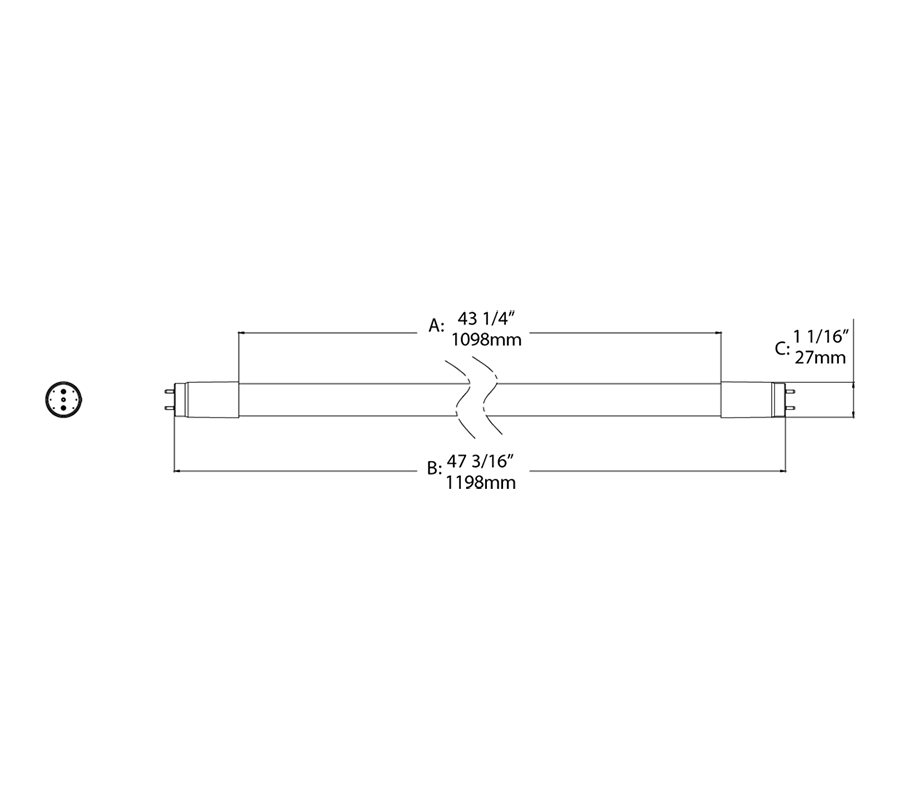

Dimensions
Weight: 1.0 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
13W
Wattage Equivalency
32W Fluorescent
Construction
Material
Glass
Shape
T8
Nominal Length
4 ft x 2 LAMPS
Finish
Frosted
