T8-43-96G-FA8-835-DE-BYP has been discontinued. You have been redirected to its new replacement, T8HO-40-96G-FA8-835-DE-BYP
Return to T8-43-96G-FA8-835-DE-BYP

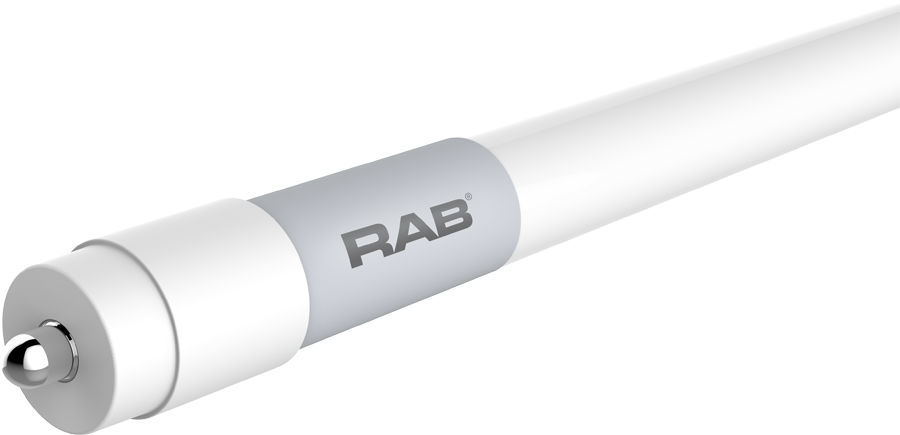

T8HO-40-96G-FA8-835-DE-BYP
T8HO-40-96G-FA8-835-DE-BYP
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Double ended wiring method
- Works with shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan.
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Internal thermal fuse for added safety
- Emergency back up available
Performance
| Watts | 40W |
| Color Temp | 3500K |
| Lumens | 5,500 lm |
| Efficacy | 133 |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | 0.9 |
| Flicker | 50% |
| THDi | ≤20+5% |

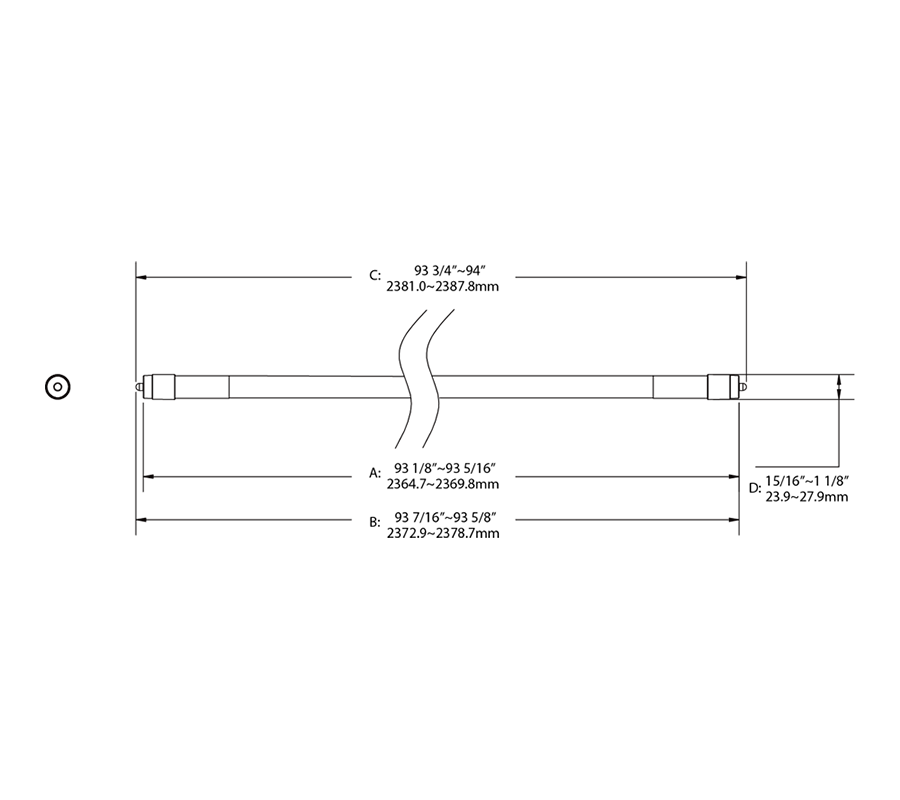

Dimensions
Weight: 0.9 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
40W
Lumens
5,300lm
Efficacy
133lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
86W Fluorescent
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
Certification Model Number
T10274(T8HO-40-96G-FA8-835-DE-BYP)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
Color Temperature
3500K
Color Accuracy (CRI)
82 CRI
Beam Angle
210°
Electrical
THD
≤20+5%
Power Factor
0.9
Dimmable
Yes, 0-10V
Flicker
50%
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120-277V
Operating Frequency
50/60Hz
Construction
Shape
T8
Endcap Material
Plastic
Enclosure Material
Glass
Installation
Base Type
Fa8
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
