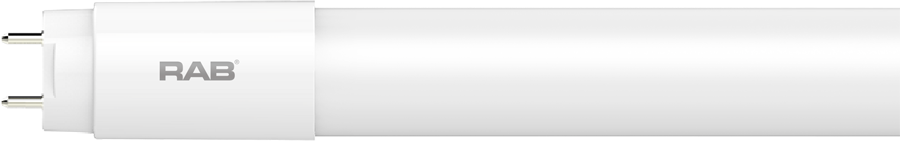

T8-7-24GC-840-SD-BYP-FF
T8-7-24GC-840-SD-BYP-FF
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended and double ended wiring method
- Works with non-shunted sockets and shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Shatter resistant Coated Glass designed to pass drop tests of 6' on hard surface
- Internal thermal fuse for added safety
- Low Flicker less than 5%
- UL Classified, DLC Listed
Performance
| Watts | 7W |
| Color Temp | 4000K (Cool White) |
| Lumens | 950 lm |
| Efficacy | 135.7 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7W |
Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
7W
Wattage Equivalency
17W Fluorescent
Construction
Material
Coated Glass
Bulb Shape
T8
Nominal Length
2 ft
Finish
Frosted
