T8-7.5-24G-840-EXT
T8-7.5-24G-840-EXT
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Dedicated External driver must be paired together with RAB tubes
- Can be installed using single ended or double ended wiring method
- Works with non-shunted sockets AND shunted sockets.
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Low Flicker less than 1%
- UL Classified, DLC Listed
Performance
| Watts | 7W |
| Color Temp | 4000K (Cool White) |
| Lumens | 1,200 lm |
| Efficacy | 160 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277 |
| Power Factor | >0.9 |
| Flicker | Depend on Type C Driver |
| THDi | N/A |

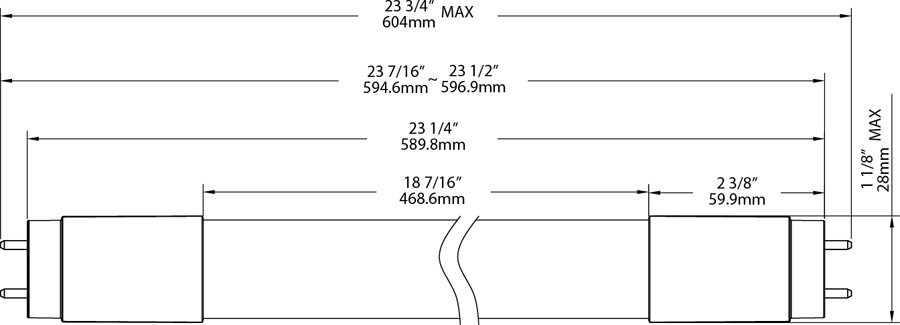

Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
7.5W
Lumens
1,200lm
Efficacy
133lm/W
L70 Lifespan
50,000 Hours
Wattage Equivalency
17W Fluorescent
Construction
Material
Glass
Bulb Shape
T8
Nominal Length
2 ft
Finish
Frosted
Base Type
G13
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
4000K Cool White
Color Accuracy (CRI)
80 CRI
Electrical
THD
<25%
Power Factor
>0.9
Operating Temperature
-25°C to 45°C (-13°:F to 113°F)
Dimming
Yes with 0-10V dimmer. See Dimmer Compatibility List.
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Flicker
Depends on Type C Driver
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Installation
Installation Type
Type C, External Driver
Compliance
UL Recognized
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
California Energy Commission (CEC) Status
Lawful for Sales in California
2 Lamp Application
DLC Model Number: T10064
DLC ID Number: PLRWHPDEWRQL
DLC ID Number: PLRWHPDEWRQL
3 Lamp Application
DLC Model Number: T10064-3
DLC ID Number: PLSOMWKJRSUU
DLC ID Number: PLSOMWKJRSUU
4 Lamp Application
DLC Model Number: T10064-4
DLC ID Number: PLYWLQN4MFFL
DLC ID Number: PLYWLQN4MFFL
Application
Suitable for damp locations and totally enclosed fixtures.
Certification Model Number
T10064 (T8-7.5-24G-840-EXT)
Optical
Beam Angle
220°
