• Replacement for conventional fluorescent T8 and T12 linear tubes
  • Dedicated External driver must be paired together with RAB tubes
  • Can be installed using single ended or double ended wiring method
  • Works with non-shunted sockets AND shunted sockets.
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Low Flicker less than 1%
  • UL Classified, DLC Listed
View Technical Specs
Performance
Watts 7W
Color Temp 5000K (Daylight)
Lumens 1,200 lm
Efficacy 160 lm/W
Color Accuracy 80 CRI
L70 Lifespan 50,000 Hours
Input Voltage 120-277
Power Factor >0.9
Flicker Depend on Type C Driver
THDi N/A
Dimensions

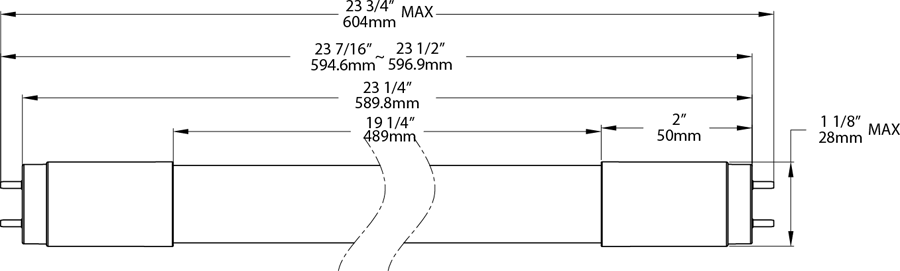

Link to Dimension Drawing

Weight: 0.3 lbs

Technical Specifications
Performance
Product Type
Linear
Input Wattage
7.5W
Lumens
1,200lm
Efficacy
133lm/W
L70 Lifespan
50,000 Hours
Wattage Equivalency
17W Fluorescent
Construction
Material
Glass
Bulb Shape
T8
Nominal Length
2 ft
Finish
Frosted
For Use Outdoors in Open Fixtures
No
\
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
80 CRI
Installation
Base Type
G13
Installation Type
Type C, External Driver
Electrical
THD
<25%
Power Factor
>0.9
Operating Temperature
-25°C to 45°C (-13°:F to 113°F)
Dimming
Yes with 0-10V dimmer. See Dimmer Compatibility List.
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Flicker
Depends on Type C Driver
Compliance
UL Recognized
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
California Energy Commission (CEC) Status
Lawful for Sales in California
2 Lamp Application
DLC Model Number: T10065
DLC ID Number: PLK0D7PV2078
3 Lamp Application
DLC Model Number: T10065-3
DLC ID Number: PL2837I3F36Z
4 Lamp Application
DLC Model Number: T10065-4
DLC ID Number: PLHX6K173H7O
Application
Suitable for damp locations and totally enclosed fixtures.
Certification Model Number
T10065 (T8-7.5-24G-850-EXT)
