T8-7.5-24G-850-HYB
T8-7.5-24G-850-HYB
- Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
- TYPE A - Plug and play compatible with most common commercial instant start T8 electronic ballasts
- TYPE B - can be wired directly to line voltage 120-277V. Can be wired using Single or Double ended method.
- Works with both shunted and non-shunted sockets
- Rated for use in enclosed and open fixtures in dry or damp locations
Performance
| Watts | 7W |
| Color Temp | 5000K |
| Lumens | 1,150 lm |
| Efficacy | 153 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | Type A: Ballast dependent Type B: 120-277V |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |

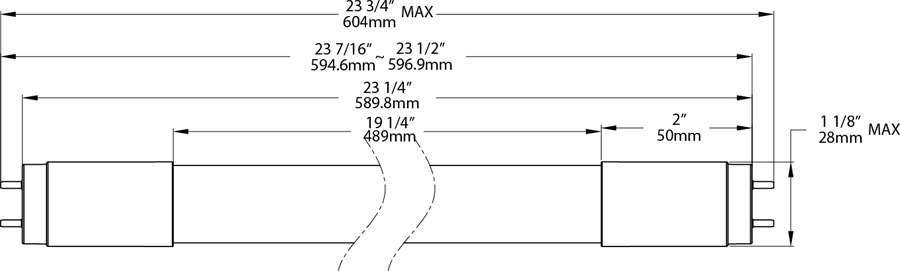

Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Wattage Equivalency
17W Fluorescent
Input Wattage
7.5W
Lumens
1,150lm
Efficacy
153lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
Type A: Dependent on ballast
Type B: <25%
Type B: <25%
Power Factor
Type A: Dependent on ballast
Type B: >0.9
Type B: >0.9
Dimmable
Type A: Yes
Type B: No
Type B: No
Dimming Type
Compatible 0-10V dimmer and ballast, see Dimmer Compatibility List
Input Voltage
Type A: Ballast dependent
Type B: 120-277V
Type B: 120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
Type B: 62mA
Input Current @ 208V (mA)
Type B: 0.04mA
Input Current @ 240V (mA)
Type B: 0.04mA
Input Current @ 277V (mA)
Type B: 0.03mA
Operating Temperature
-13°F to 113°F (-25°C to 45°C)
Flicker
Type A: Depends on ballast ~<15%
Type B: 50%-70%
Type B: 50%-70%
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 no less than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type A+B, Hybrid
Base Type
G13
Construction
Nominal Length
2 ft
Bulb Shape
T8
Endcap Material
Plastic
Enclosure Material
Glass
Lens Finish
Frosted
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PL6FDHH6SWCM
DLC Product Code: PL6FDHH6SWCM
Other
Compatible Products
See Dimmer and Ballast compatibility lists.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
