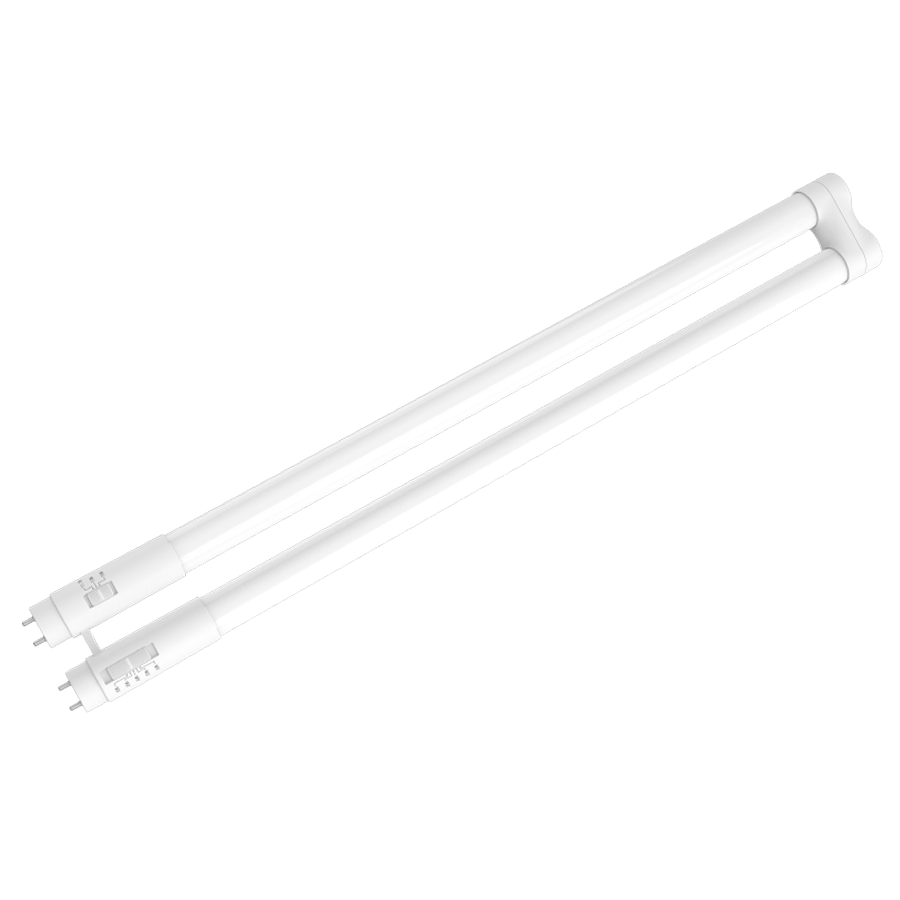

T8-U1G-SD-HYB
T8-U1G-SD-HYB
- 3 selectable wattage and 5 Color temperatures to choose from
- Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
- TYPE A - Plug and play compatible with most common commercial instant start T8 electronic ballasts
- TYPE B - can be wired directly to line voltage 120-277V. Can be wired using Single or Double ended method
- Works with both shunted and non-shunted sockets
Performance
| Watts | 11.5/13/15W |
| Color Temp | 3000K/3500K/4000K/5000K/6500K |
| Lumens | 1,800/2,000/2,200 lm |
| Efficacy | 156/154/147 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | .098/.110/.127A |
| 208V | .058/.066/.076A |
| 240V | .051/.058/.066A |
| 277V | .045/.051/.059A |
| Input Watts | 11.5/13/15W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Description
Hybrid Type A/B tubes allow installation on the ballast or direct wiring to line voltage. Now available with adjustable 5CCT switch.
Wattage Equivalency
32W Fluorescent
Input Wattage
11.5/13/15W
Lumens
11.5W
3000K @ 1,700lm; 3500K @ 1,700lm; 4000K @ 1,800lm; 5000K @ 1,800lm; 6500K @ 1,800lm
13W
3000K @ 1,900lm; 3500K @ 1,900lm; 4000K @ 2,000lm; 5000K @ 2,000lm; 6500K @ 2,000lm
15W
3000K @ 2,100lm; 3500K @ 2,100lm; 4000K @ 2,200lm; 5000K @ 2,200lm; 6500K @ 2,200lm
3000K @ 1,700lm; 3500K @ 1,700lm; 4000K @ 1,800lm; 5000K @ 1,800lm; 6500K @ 1,800lm
13W
3000K @ 1,900lm; 3500K @ 1,900lm; 4000K @ 2,000lm; 5000K @ 2,000lm; 6500K @ 2,000lm
15W
3000K @ 2,100lm; 3500K @ 2,100lm; 4000K @ 2,200lm; 5000K @ 2,200lm; 6500K @ 2,200lm
Efficacy
11.5W
3000K @ 148lm/W; 3500K @ 148lm/W; 4000K @ 157lm/W; 5000K @ 157lm/W; 6500K @ 157lm/W
13W
3000K @ 146lm/W; 3500K @ 146lm/W; 4000K @ 154lm/W; 5000K @ 154lm/W; 6500K @ 154lm/W
15W
3000K @ 140lm/W; 3500K @ 140lm/W; 4000K @ 147lm/W; 5000K @ 147lm/W; 6500K @ 147lm/W
3000K @ 148lm/W; 3500K @ 148lm/W; 4000K @ 157lm/W; 5000K @ 157lm/W; 6500K @ 157lm/W
13W
3000K @ 146lm/W; 3500K @ 146lm/W; 4000K @ 154lm/W; 5000K @ 154lm/W; 6500K @ 154lm/W
15W
3000K @ 140lm/W; 3500K @ 140lm/W; 4000K @ 147lm/W; 5000K @ 147lm/W; 6500K @ 147lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
<25%
Power Factor
>0.9
Dimmable
Type B, 0-10V dimming;
Type A: 0-10V dimmer with 0-10V ballast
Type A: 0-10V dimmer with 0-10V ballast
Input Voltage
Type A: Ballast dependent
Type B: 120-277V
Type B: 120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
98/110/127mA
Input Current @ 208V (mA)
58/66/76mA
Input Current @ 240V (mA)
51/58/66mA
Input Current @ 277V (mA)
45/51/59mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
<40%
LED Characteristics
Beam Angle
160°
Color Temperature
Field adjustable via dip switch 3000K/3500K/4000K/5000K/6500K
Color Accuracy (CRI)
82 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type A/B, Hybrid
Construction
Base Type
2G13
Nominal Length
2 ft
Bulb Shape
T8 U1
Endcap Material
Plastic
Enclosure Material
Glass
Lens Finish
Frosted
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC ID
S-7XQWPB
Certification Model Number
T10291(T8-U1G-SD-HYB)
T20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
See Dimmer and Ballast compatibility lists
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
