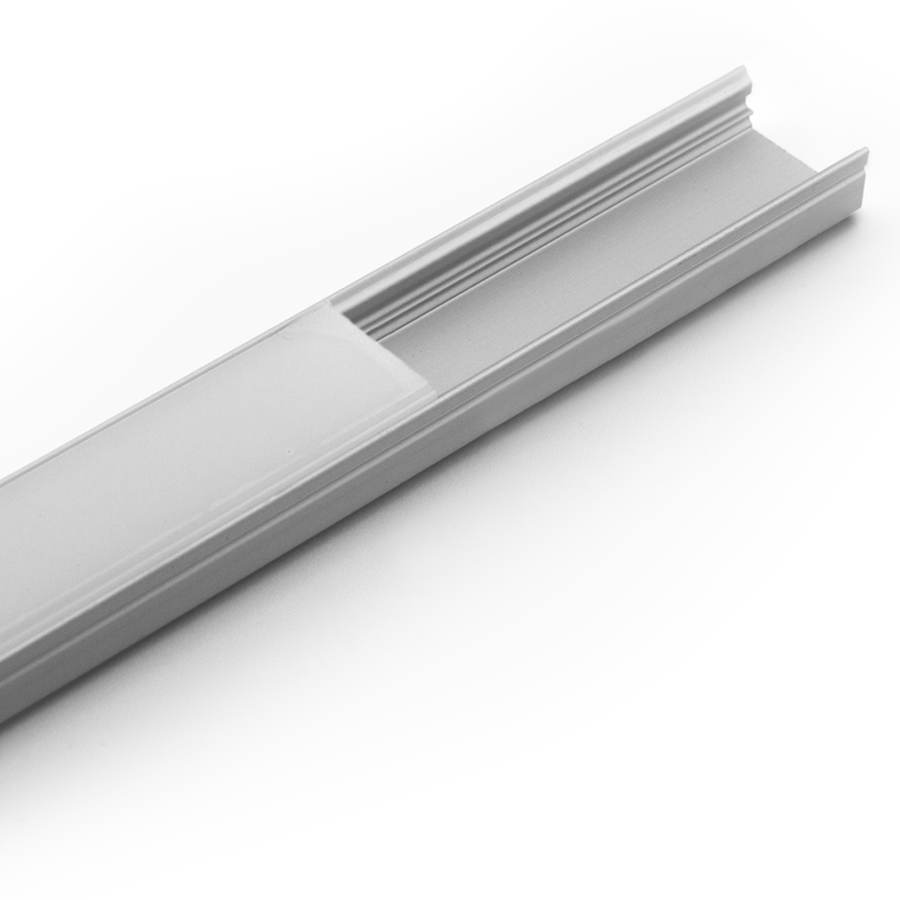

TAP12
TAP12 large main
  • Anodized aluminum channel with silver finish
  • 12mm width
  • 39-3/8" length
  • Includes 2 clips & screws
  • Frosted diffuser and endcaps
 View Technical Specs
View Price & Availability
Dimensions

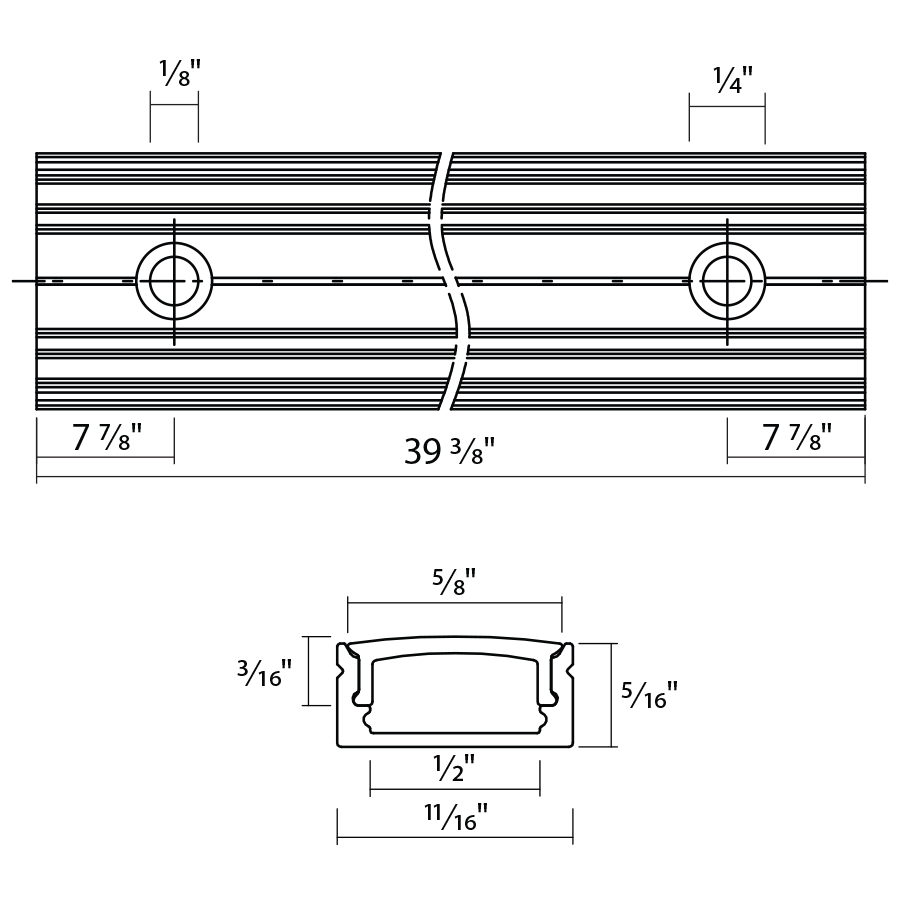

Link to Dimension Drawing

Weight: 0.2 lbs

Technical Specifications
Performance
Product Type
Tape Light Accessories - Profile inner
Description
Tape Light Aluminum Profile Inner Width 12mm
Installation
Mounting
Includes 2 clips and screws in packaging Inlcudes endcaps in packaging 1pc with hole, 1pc without hole)
Construction
Length
3' 1/4"
Material Construction
Anodized Aluminum with Silver Finish
Light Effect
60-70% rated light output of tape
Compliance
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Other
Compatible Products
Compatible with the following ARCTAPE products: TICYY, TICY, TICYN, TICN, TICCW, TICLYY, TICLY, TICLYN, TICLN, TICLCW, TICHYY, TICHY, TICHYN, TICHN, TICHCW, TIC/DW, TIC/LCB
