TIC/DW
TIC/DW
- Continuous band of flawless light output with no pixelated hot spots - even without a lens
- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Available in Static White 2700K, 3000K, 4000K, or Dim-to-Warm (3000-1800K)
- 60W & 96W Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 2.5 W/FTW |
| Color Temp | |
| Lumens | 188lm/ft lm |
| Efficacy | 75 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage |
| 120V | 4 mA/chip |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |

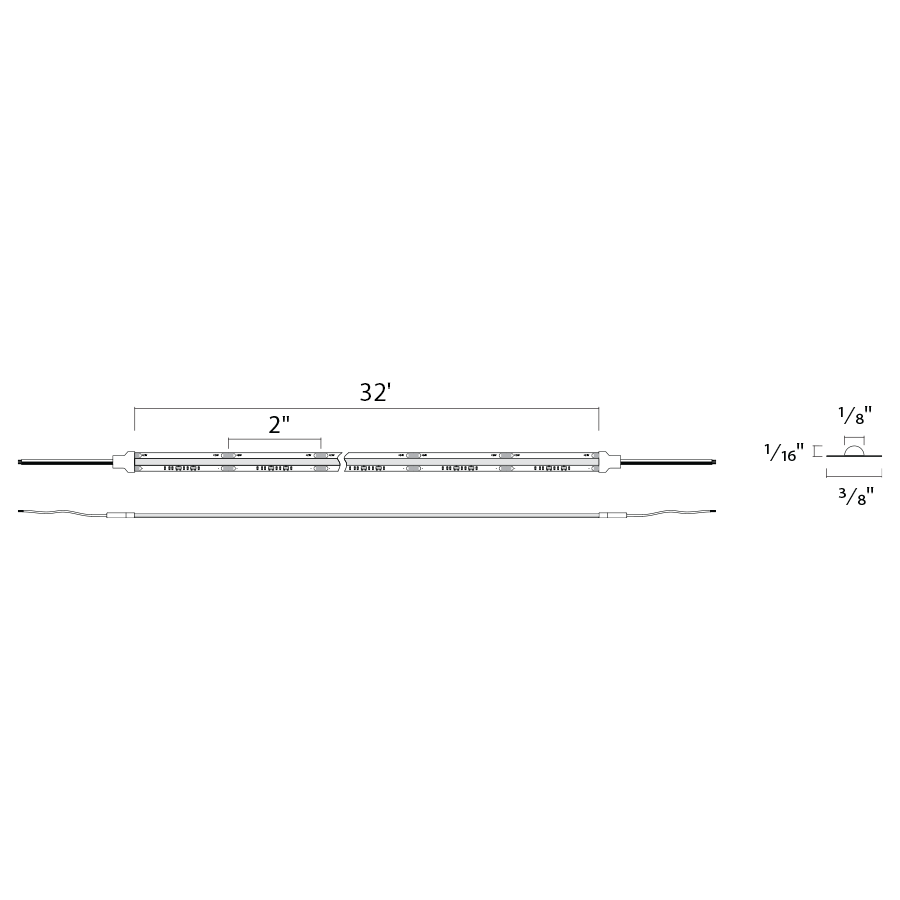

Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
32 ft No-Pixel COB tape static white - Damp rated
Description

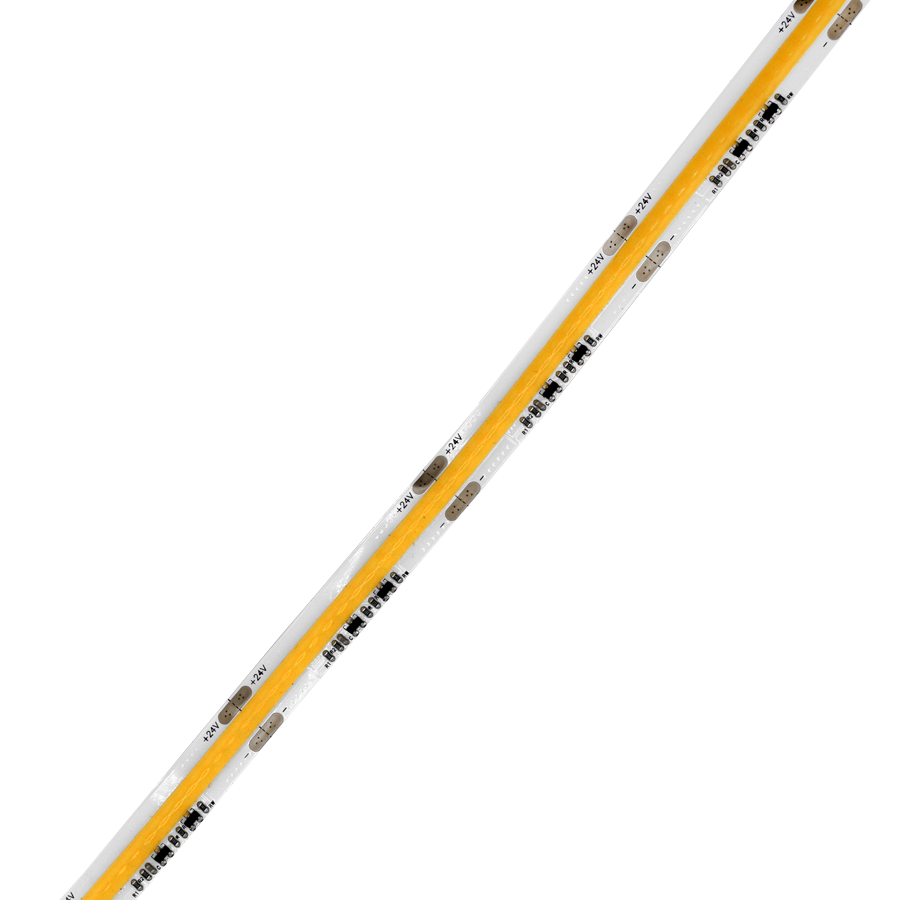

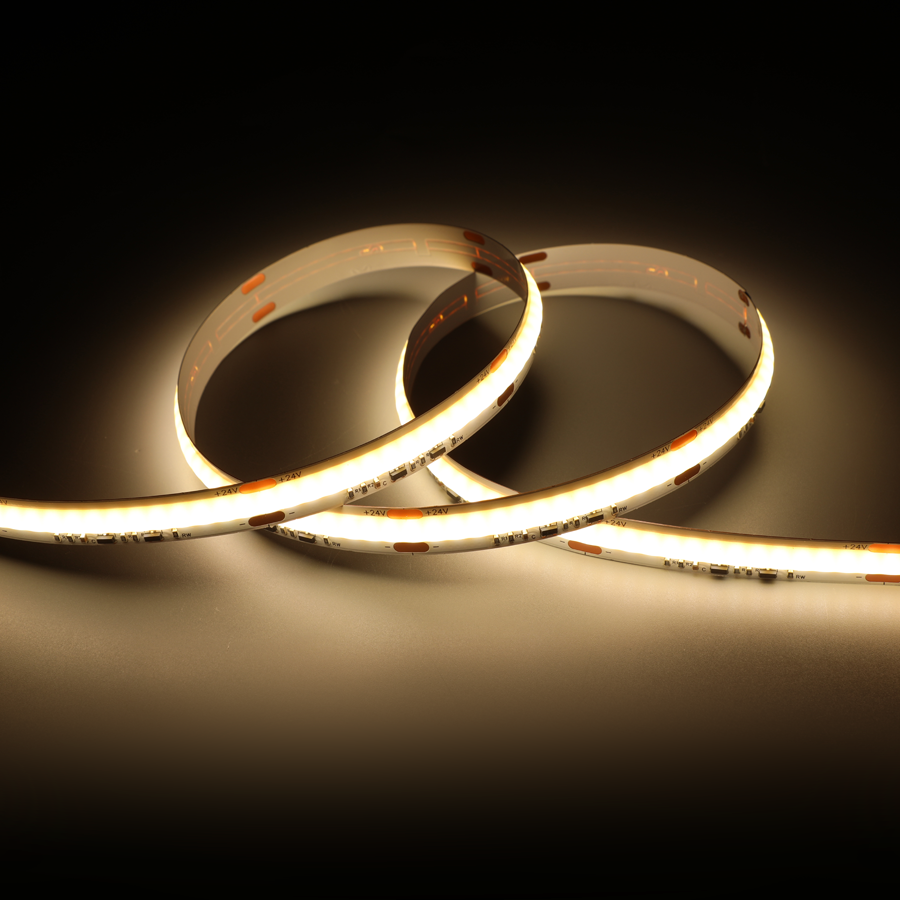

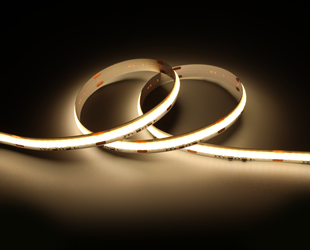

ARCTAPE is a flexible COB tape with a continuous band of flawless light output with no pixelated hot spots - even without a lens.
Input Wattage
2.5W/ft
Lumens
188lm/ft±10%
Efficacy
75lm/W±10%
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
PWM Dimming Signal, dimmable down to .1% with LED Driver (sold separately)
Input Voltage
DC24V
Input Current @ 100V (mA)
118mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
Flicker
Flicker Free - Pst LM<1, SVM<0.4, Percent Flicker≤5%@≤200Hz
LED Characteristics
Beam Angle
150°
Color Temperature
1800K-3000K Dim-to-Warm
Color Accuracy (CRI)
90 CRI
Color Changing
No
R9 Value
High color performance with R9 greater than 50
Certification Model Number
<5-step (2700K & 5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Field Cuttable Increment
Cuttable every 2"
LED Segments per Reel
200
Installation
Mounting
Easy installation to most surfaces by using pre-attached 3M® double-sided tape
Construction
Reel Length
32 ft
Max Run Length
32 ft
Length
32.8 ft
Light Source
COB LED White
Material Construction
Super-flexible bending, ultra-thin appearance, premium wall structure, & thick copper to ensure consistancy in voltage and brightness.
Light Effect
Continuous band light output with no pixelated hot spots
Compliance
Listings
UL2108
IP Rating
IP20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Field Wiring Accessories
TJ2/DW
2-Pin indoor connector kits for dim-to-warm
2-Pin indoor connector kits for dim-to-warm
Mounting Accessories
TAP12
12mm wide aluminum channel kits
12mm wide aluminum channel kits
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
