TICYN
- Continuous band of flawless light output with no pixelated hot spots - even without a lens

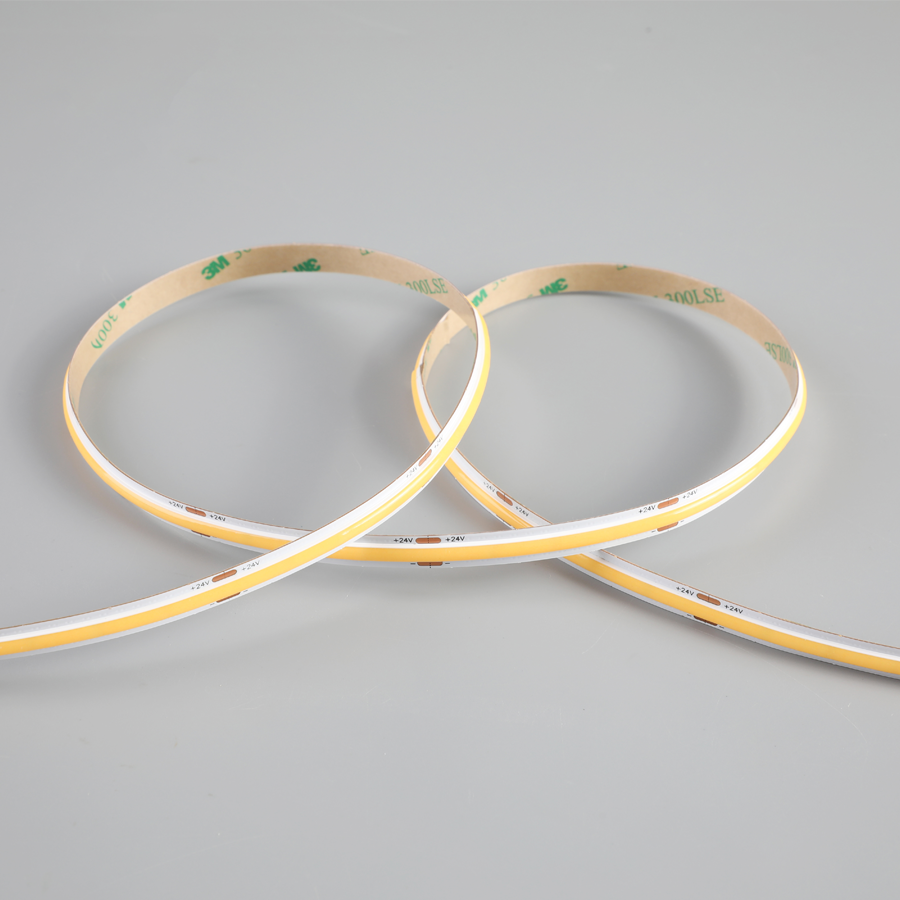

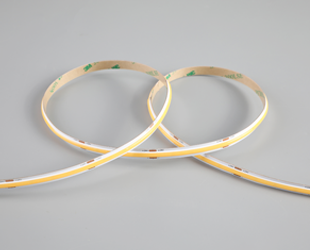

- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Available in Static White 2700K, 3000K, 4000K, or Dim-to-Warm (3000-1800K)
- 60W & 96W Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 2.5W/ftW |
| Color Temp | |
| Lumens | 238lm/ft lm |
| Efficacy | 95 |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | n/a |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |
Technical Specifications
Performance
Product Type

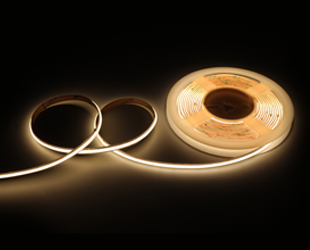

32 ft No-Pixel COB tape static white - Damp rated
Description

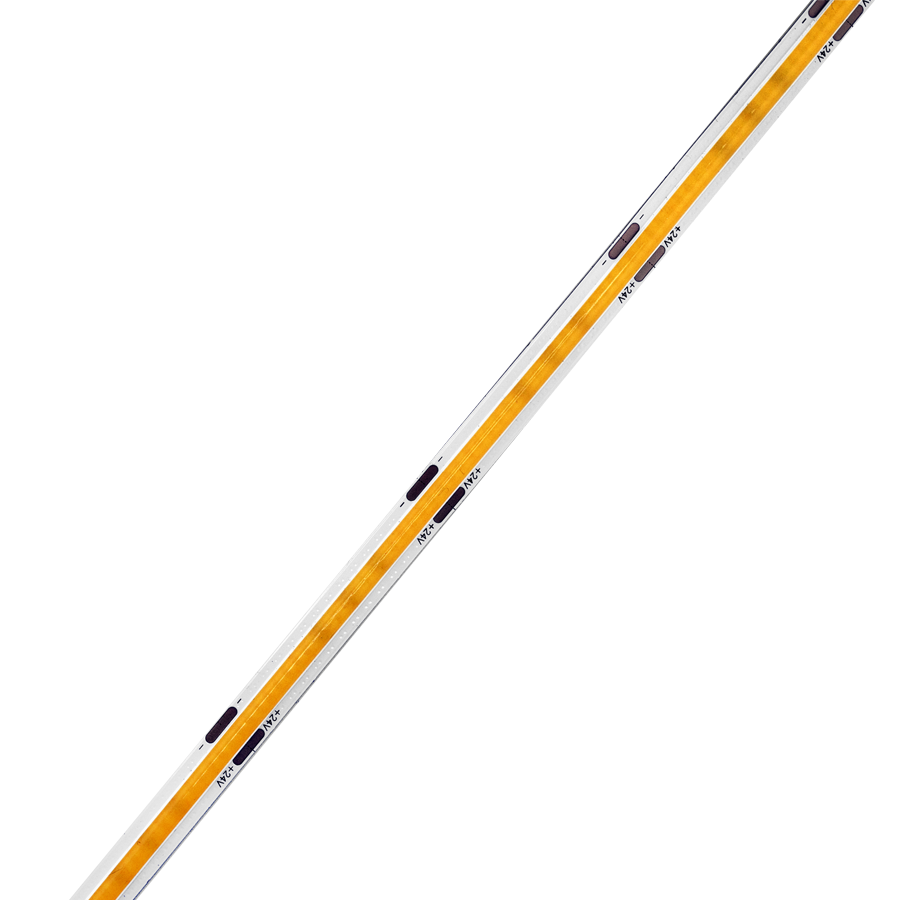

ARCTAPE is a flexible COB tape with a continuous band of flawless light output with no pixelated hot spots - even without a lens.
Input Wattage
2.5W/ft
Lumens/Foot
238 lm/ft
Efficacy
95lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
LED Characteristics
Chip Density
128 LED/ft
Beam Angle
150°
Color Temperature
3500K
Color Accuracy (CRI)
90 CRI
Color Changing
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Field Cuttable Increment
Cuttable every 2"
LED Segments per Reel
200
Electrical
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
Flicker
Flicker Free - Pst LM<1, SVM<0.4, Percent Flicker≤5%@≤200Hz
Installation
Mounting
3M Tape, aluminum profile
Construction

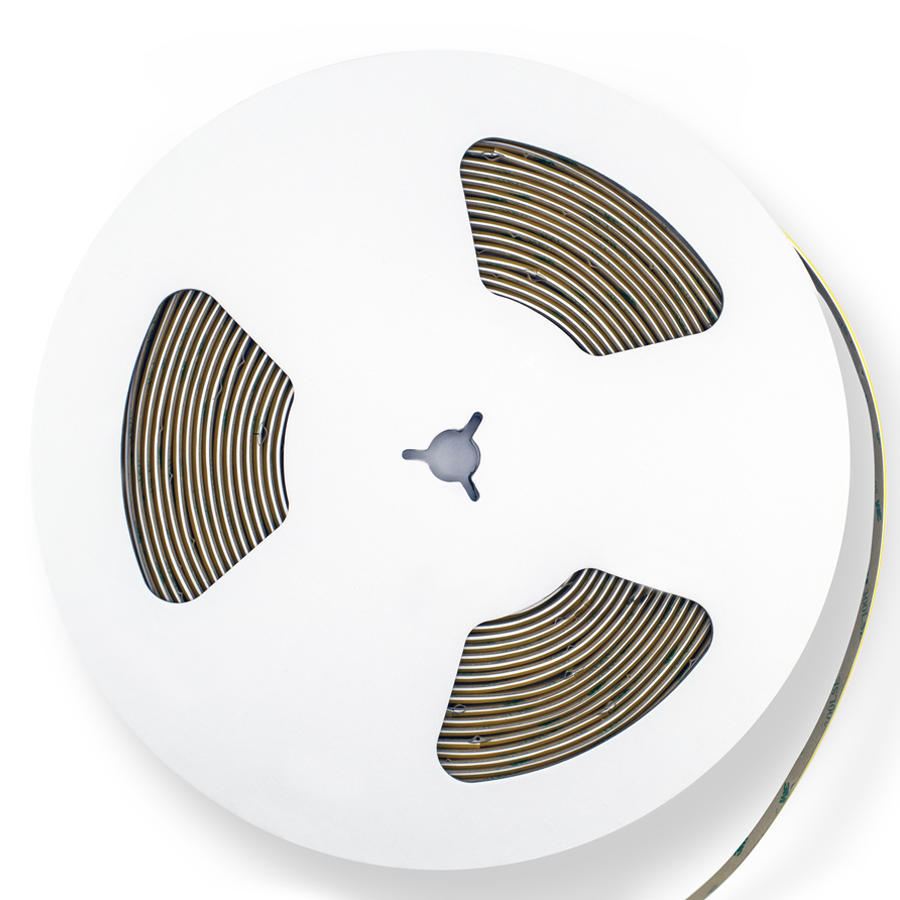

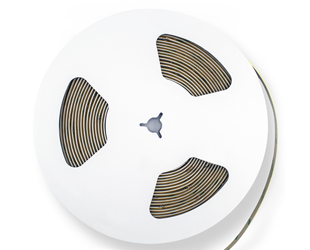

Reel Length
32 ft
Max Run Length
32 ft
PCB Width
8mm
Light Source
COB LED White
Material Construction
Super-flexible bending, ultra-thin appearance, premium wall structure, & thick copper to ensure consistancy in voltage and brightness.
Bendable
Top bend
Light Effect

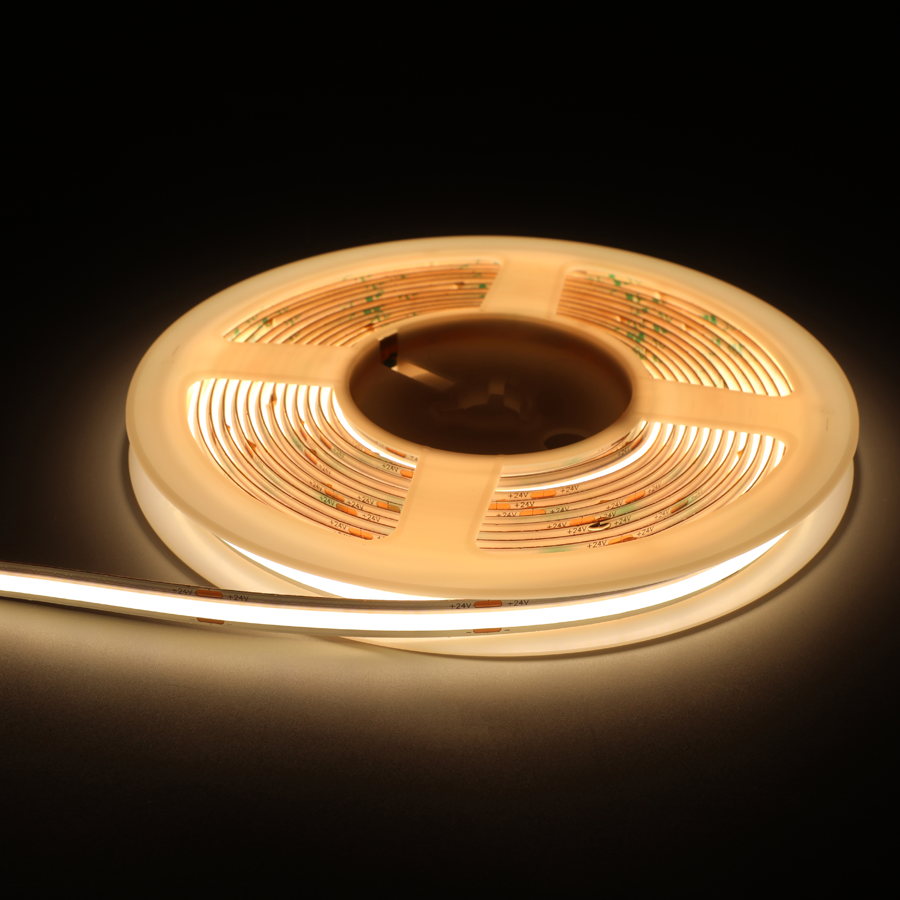

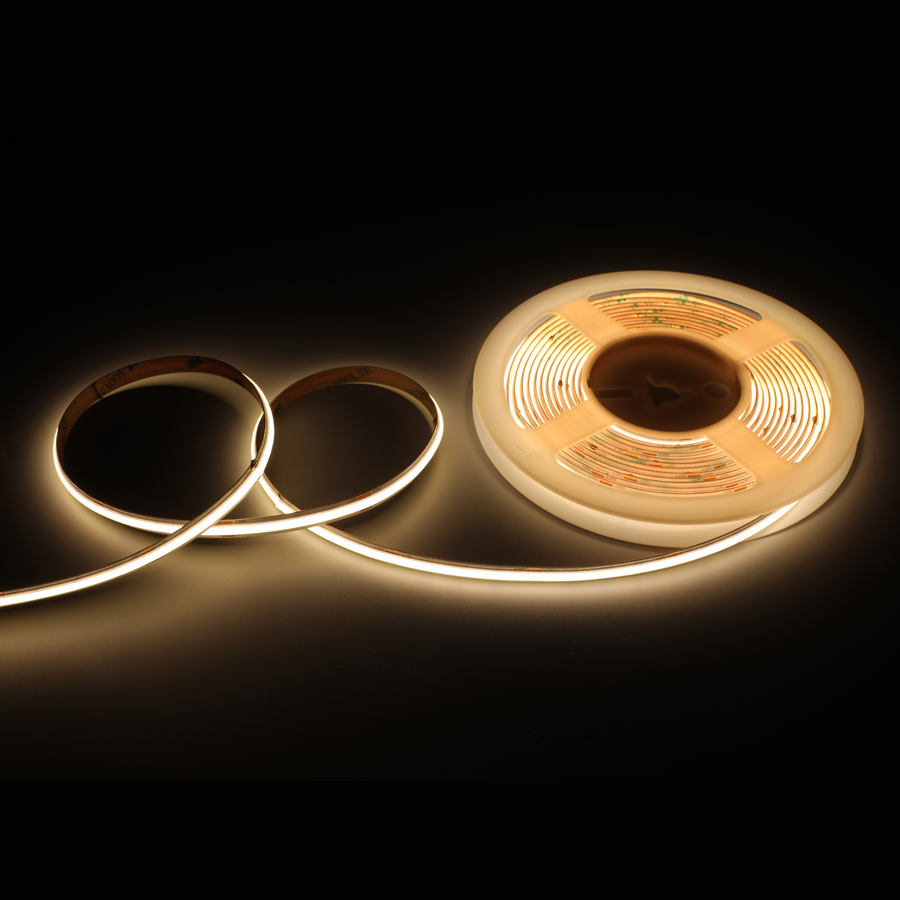

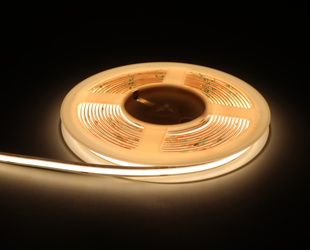

Continuous band light output with no pixelated hot spots
Compliance
Listings
UL2108
Environment
Suitable for use indoors in dry and damp environments.
IP Rating
IP20
Certification Model Number
TICYN
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
NEC Compliant
Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
No
Other
Field Wiring Accessories
TIJ2
2-Pin indoor connector kits
TIJ2L
2-Pin indoor L-shape connector kits
2-Pin indoor connector kits
TIJ2L
2-Pin indoor L-shape connector kits
Mounting Accessories
TAP12
12mm wide aluminum channel kits
TAP16TL
Trimless 16mm inner wide recessed aluminum profile
TAP16C
Corner 16mm wide aluminum profile
12mm wide aluminum channel kits
TAP16TL
Trimless 16mm inner wide recessed aluminum profile
TAP16C
Corner 16mm wide aluminum profile
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
TID/B
J-box for TID Drivers
TOD-96x2
96Wx2 outdoor driver
TOD-96x3
96Wx3 outdoor driver
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
TID/B
J-box for TID Drivers
TOD-96x2
96Wx2 outdoor driver
TOD-96x3
96Wx3 outdoor driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
