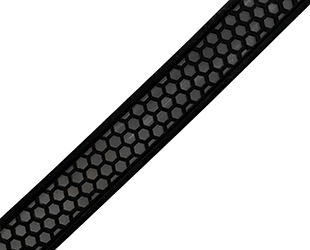

TNFLGY

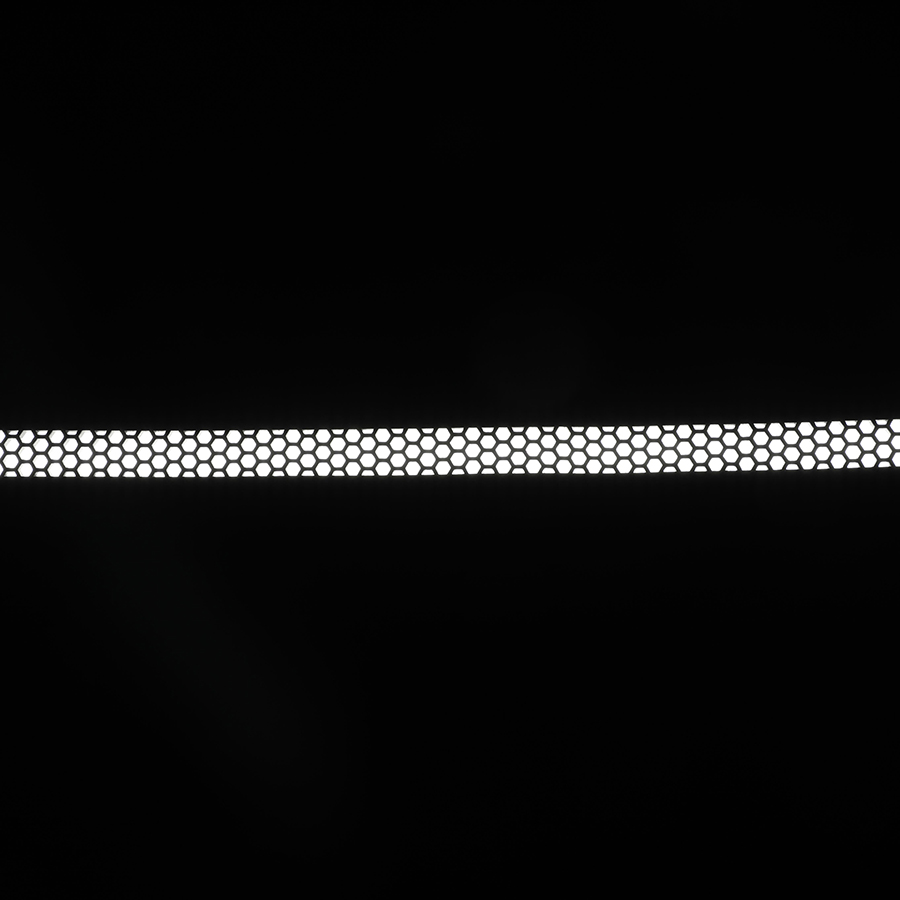

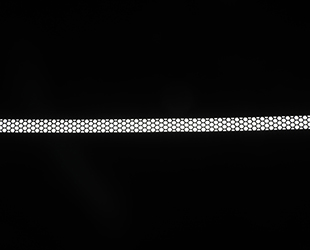

- Non-pixelated light diffusion enables the product to be freely bent in any direction, vertically or horizontally
- Field-cuttable for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)
- Easy installation with clips, fixed channel, and bendable channel (sold separately)

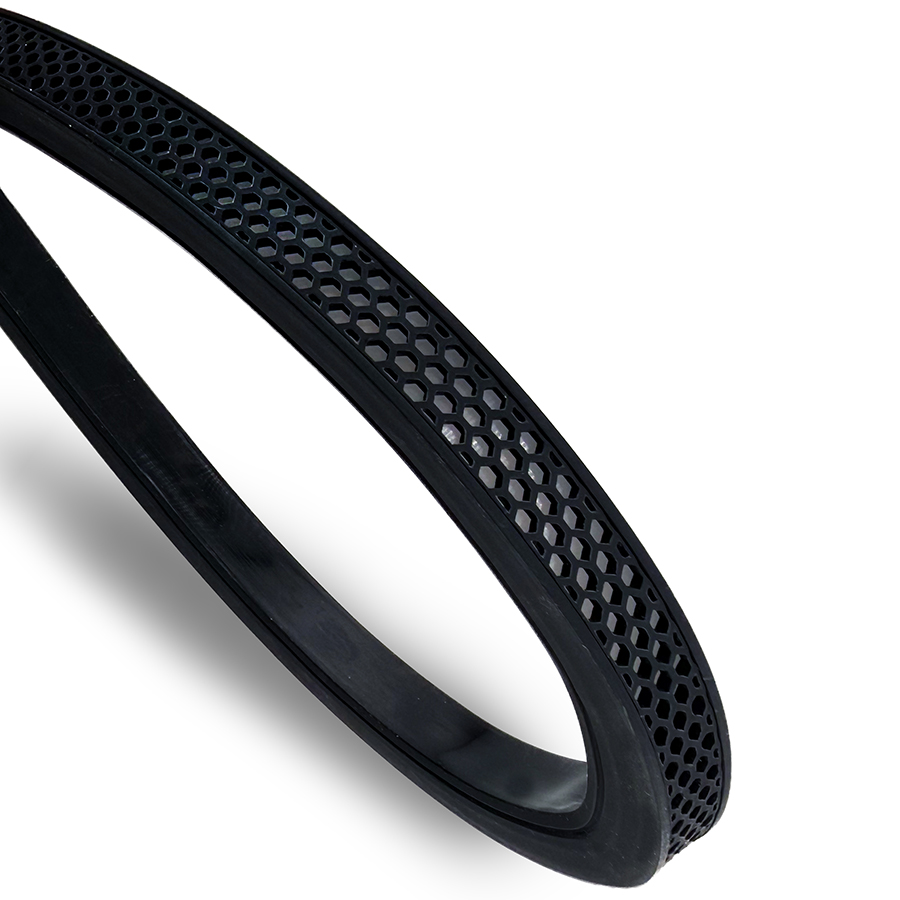

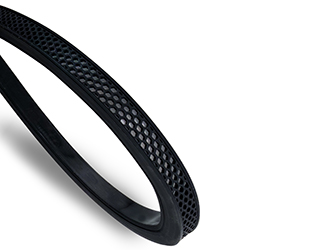

- Slim silicone construction with 6" minimum bending radius
- Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 4.27W/ftW |
| Color Temp | |
| Lumens | 40lm/ft lm |
| Efficacy | 9 |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage, Class 2 |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 4.27 W/ftW |
Technical Specifications
Performance
Description

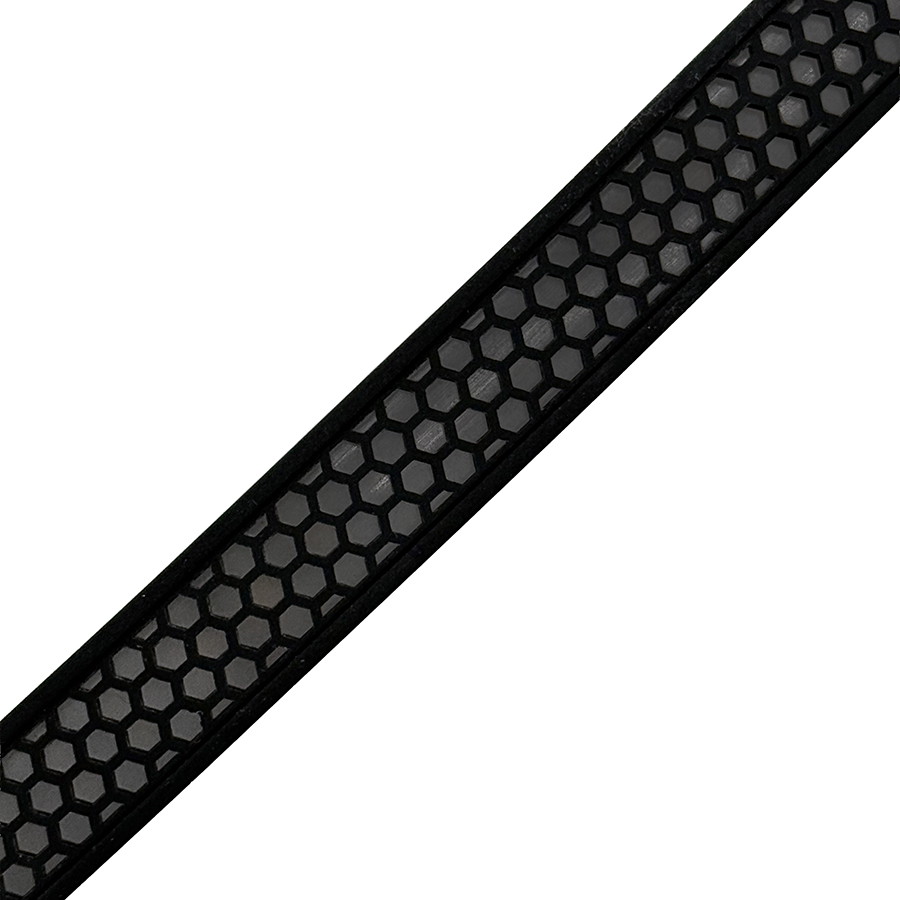

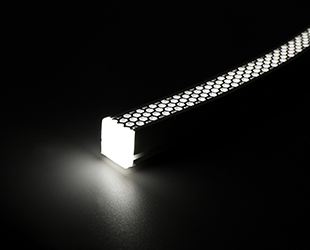

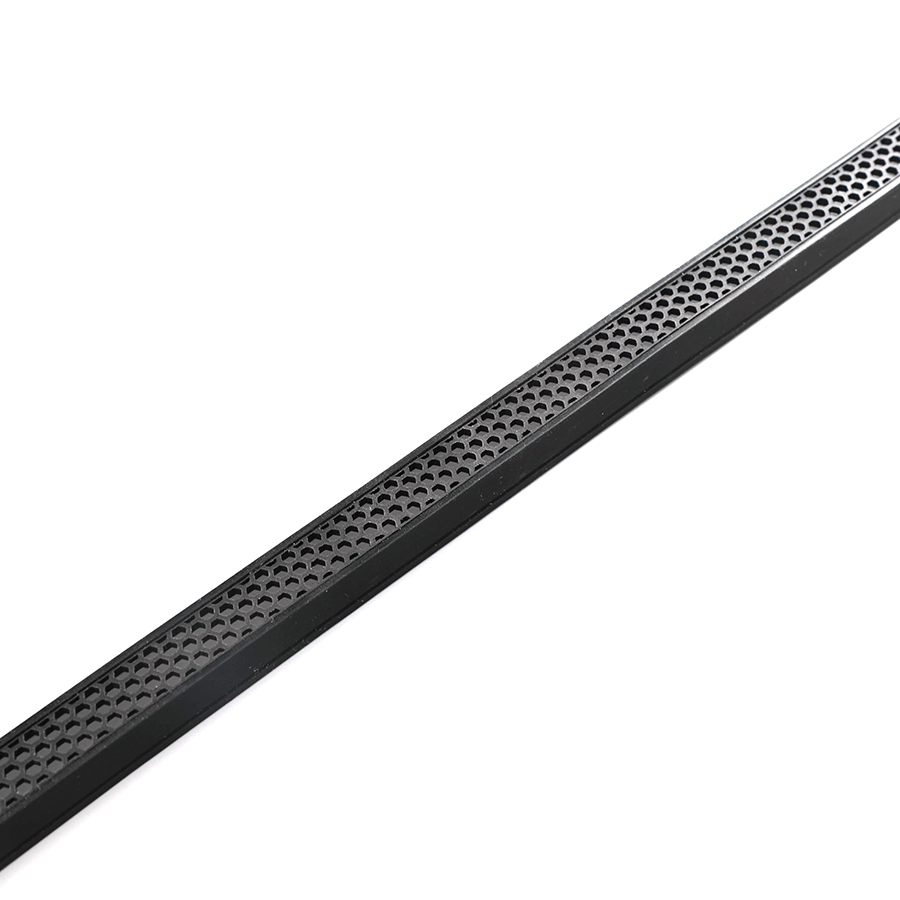

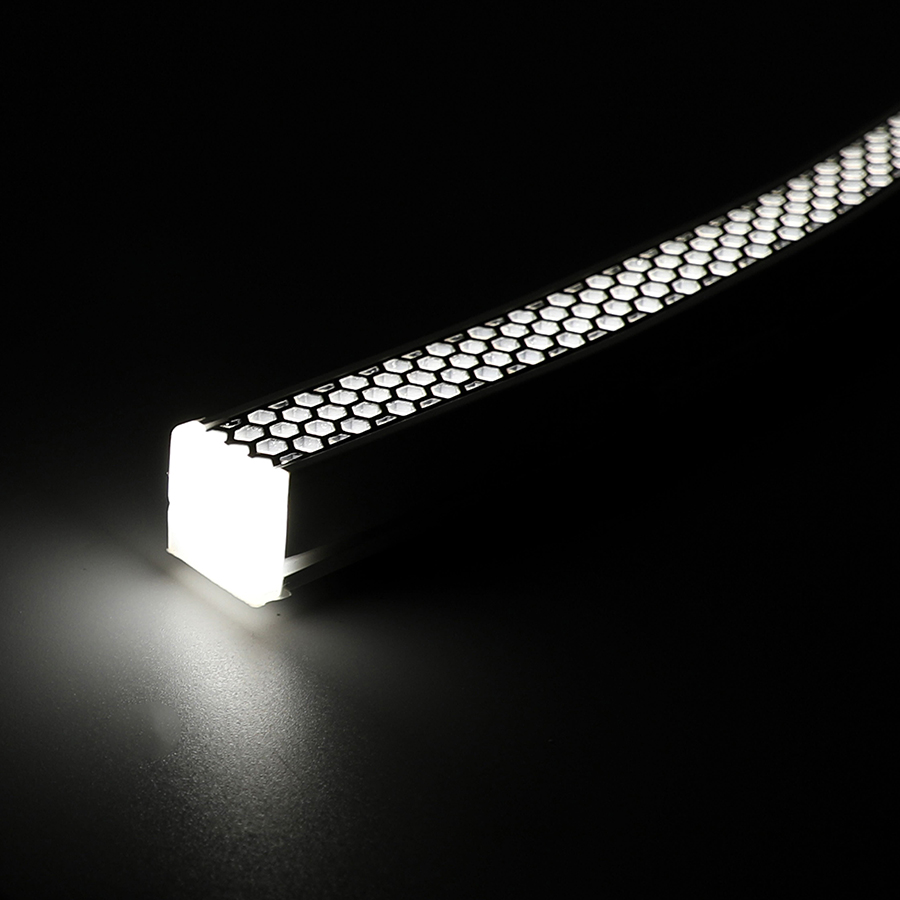

NEOFLEX recreates the look of classic neon with smooth, dot-free illumination. Engineered for indoor and outdoor applications, it is IP67 rated for long-lasting, reliable performance.
Input Wattage
4.27W/ft
Lumens/Foot
40 lm/ft
Efficacy
9lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Input Voltage
DC24V
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
LED Characteristics
Beam Angle
120°
Color Temperature
3000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Field Cuttable Increment
Any
LED Segments per Reel
Any
Installation
Mounting
Bracket, aluminum profile, bendable bracket
Construction
Reel Length
16 ft
Max Run Length
16 ft
PCB Width
W16mm*H16mm
Light Source
COB LED White
Material Construction
Dual-Flex design which can be used to create curved and complex irregular designs
Bendable
Dual bend
Light Effect
Soft linear lighting performance
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
Certification Model Number
TNFLGY
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
NEC Compliant
Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
No
Other
Field Wiring Accessories
None
Mounting Accessories
None
Compatible Drivers
None
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
