TNFY

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

TNFY

Non-pixelated light diffusion enables the product to be freely bent in any direction, vertically or horizontally

Field-cuttable for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)

Easy installation with clips, fixed channel, and bendable channel (sold separately)

Slim silicone construction with 6" minimum bending radius

Indoor or outdoor rated drivers available (sold separately)

50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	4.3W/FTW
Color Temp	90
Lumens	205 lm/ft lm
Efficacy
Color Accuracy
L70 Lifespan

Type	Constant Voltage
120V
208V
240V
277V
Input Watts	4.3W/ftW

EZ-Layout

Create Custom Lighting Layout

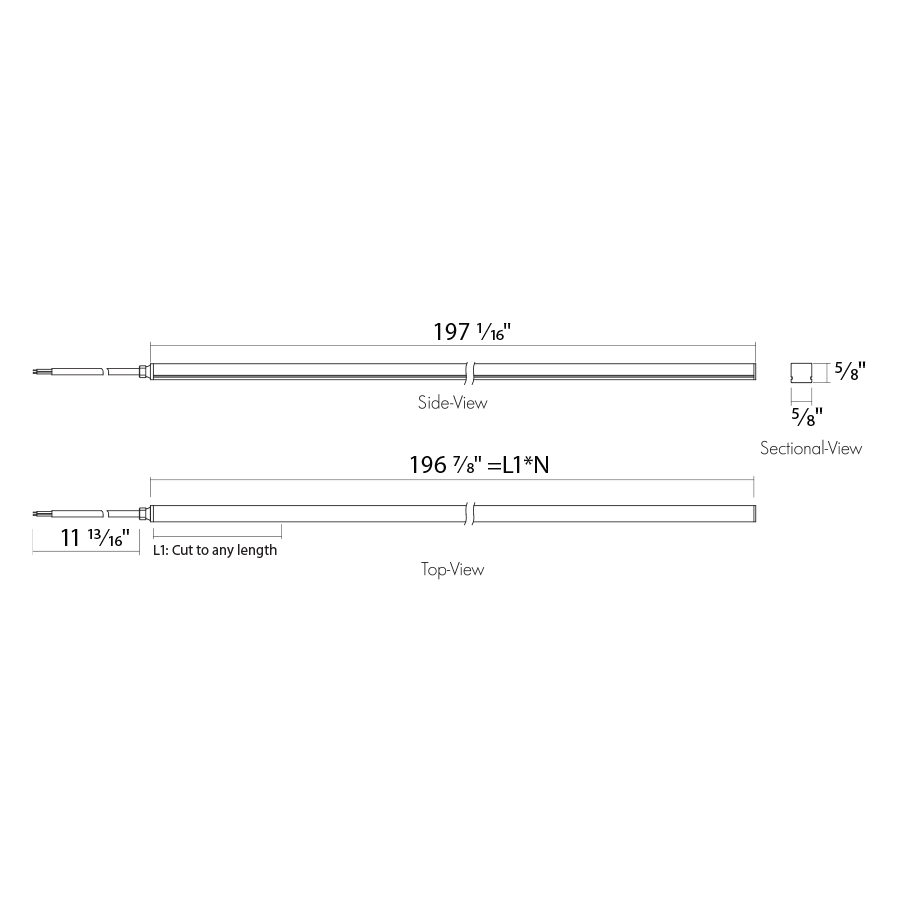

Dimensions

Weight: 2.6 lbs

Technical Specifications

Performance

Product Type

Dual Flex Silicone Wet Rated Neon Tape Light Static White

Description

NEOFLEX recreates the look of classic neon with smooth, dot-free illumination. Engineered for indoor and outdoor applications, it is IP67 rated for long-lasting, reliable performance.

Lumens

205lm/ft±10%

Lumens/Foot

205 lm/ft

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Dimmable

PWM Dimming Signal, dimmable down to .1% with LED Driver (sold separately)

Input Voltage

DC24V

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

LED Characteristics

Beam Angle

120°

Color Temperature

3000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Certification Model Number

<5-step (2700K & 5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Chip Density

37 chips/ft

Installation

Mounting

Easy installation with clips, fixed channel, and bendable channel (sold separately)

Field Cuttable Increment

Can be cut at any length

Construction

Length

16.4 ft

Max Run Length

32.8 ft

PCB Width

Width: 16mm
Height: 16mm

Light Source

COB LED White

Material Construction

Dual-Flex design which can be used to create curved and complex irregular designs

Light Effect

Soft linear lighting performance

Bendable

Dual bend

Compliance

Listings

UL2108

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP67

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Mounting Accessories

TAP16
16mm wide aluminum straight channel

TB16
16mm wide mounting brackets

TBB16
16mm wide bendable aluminum channel

Compatible Drivers

TID-60
Indoor 60W driver

TID-96
Indoor 96W driver

TOD-96
Outdoor 96W driver

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
