TNFYN

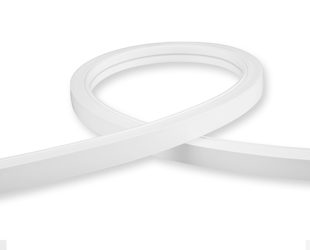

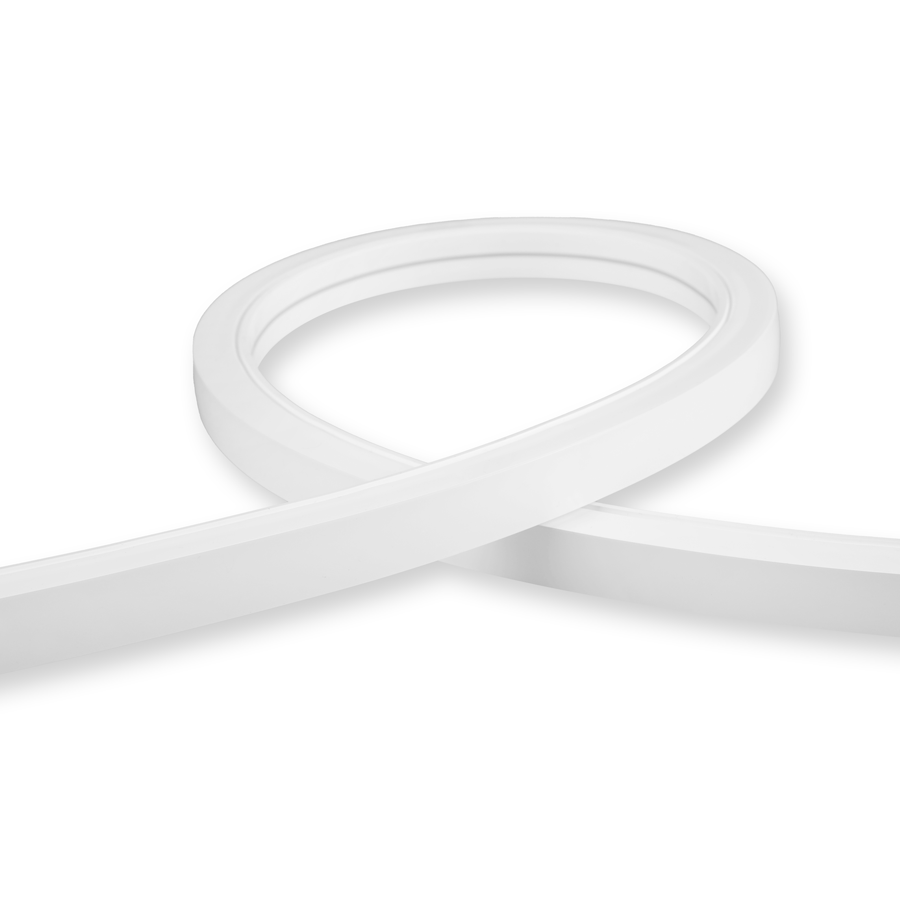

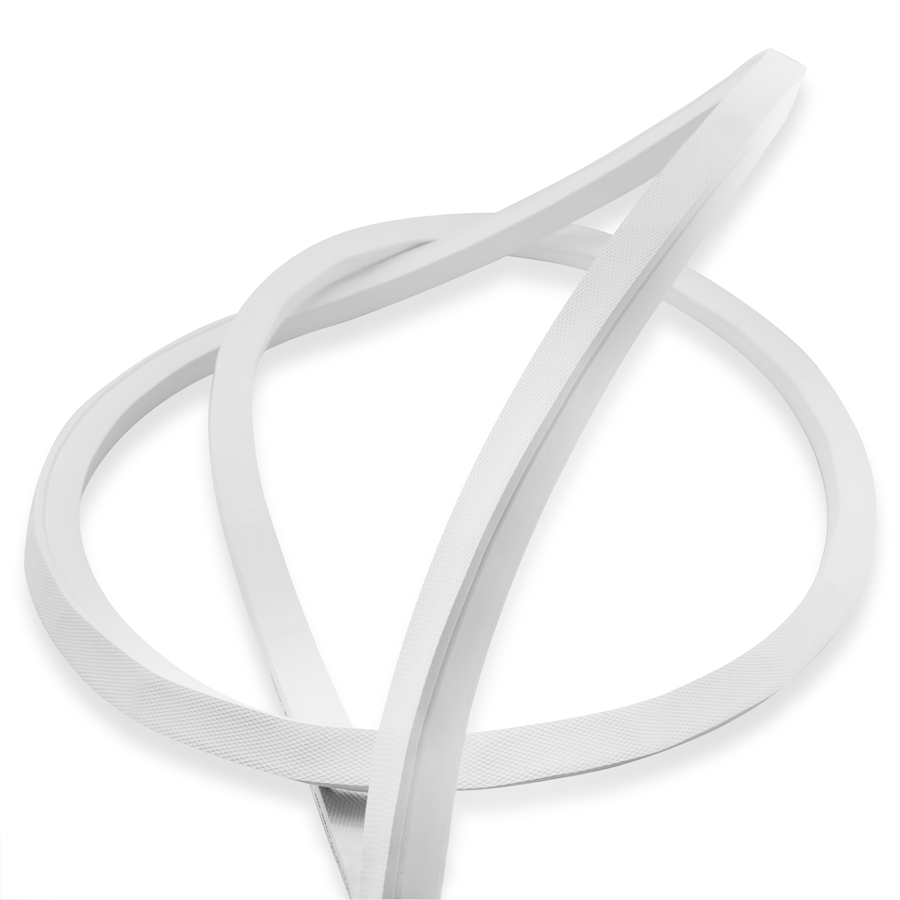

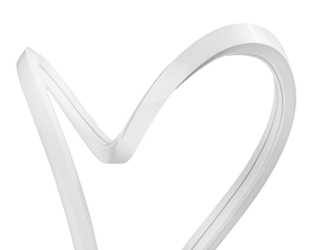

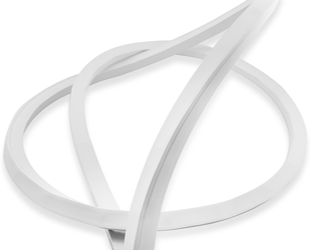

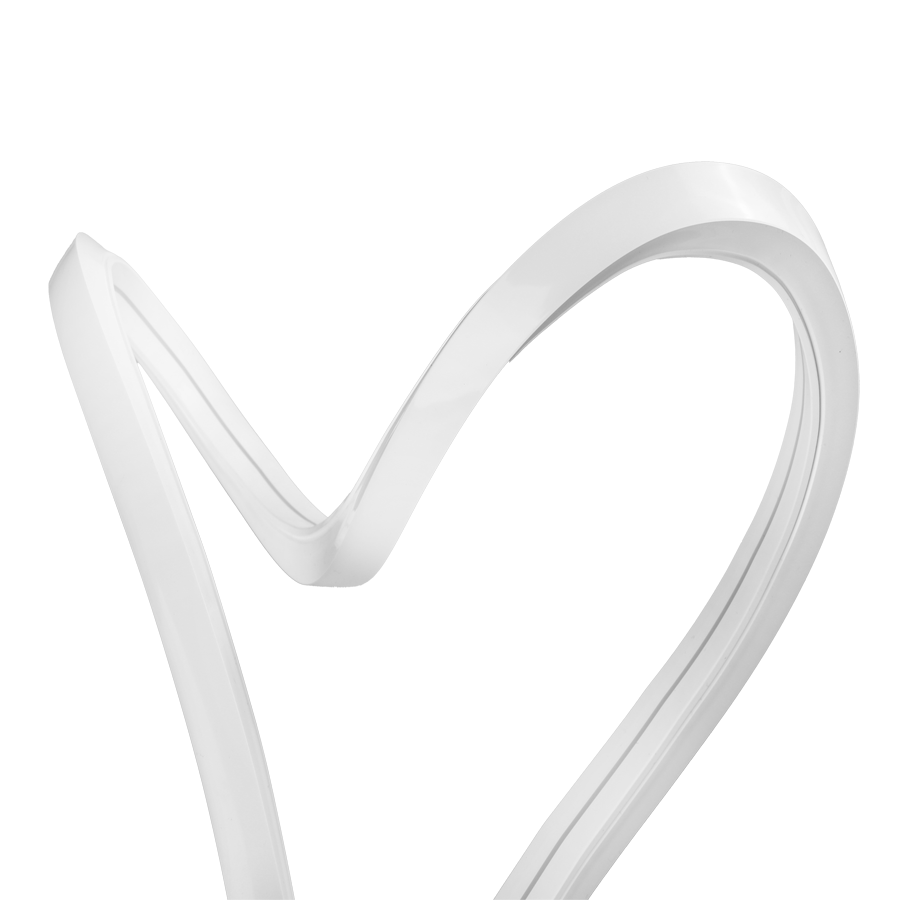

Non-pixelated light diffusion enables the product to be freely bent in any direction, vertically or horizontally

Field-cuttable for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)

Easy installation with clips, fixed channel, and bendable channel (sold separately)

Slim silicone construction with 6" minimum bending radius

Indoor or outdoor rated drivers available (sold separately)

50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	4.27W/ftW
Color Temp
Lumens	213lm/ft lm
Efficacy	50
Color Accuracy
L70 Lifespan	50,000 Hours

Type	Constant Voltage, Class 2
120V
208V
240V
277V
Input Watts	4.27 W/ftW

Technical Specifications

Performance

Description

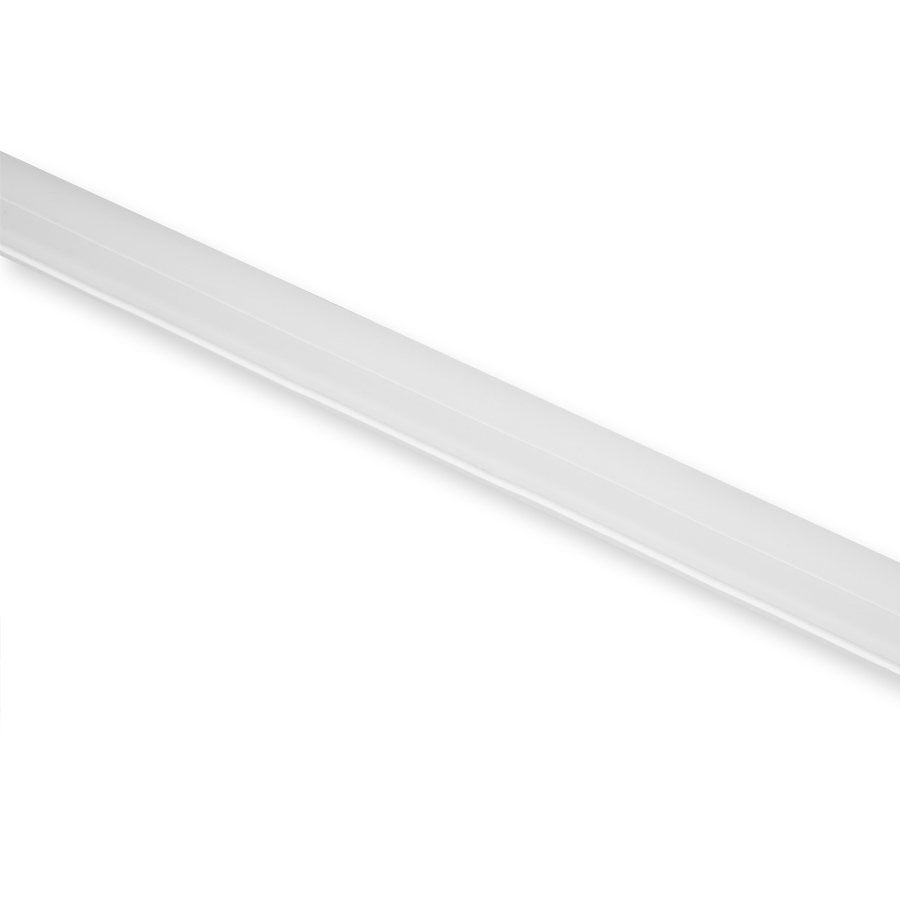

NEOFLEX recreates the look of classic neon with smooth, dot-free illumination. Engineered for indoor and outdoor applications, it is IP67 rated for long-lasting, reliable performance.

Input Wattage

4.27W/ft

Lumens/Foot

213 lm/ft

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Optical

Fixture Efficacy

50lm/W

Electrical

Input Voltage

DC24V

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Storage Temperature

-4°F (-20°C) to 140°F(60°C)

LED Characteristics

Beam Angle

120°

Color Temperature

3500K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Field Cuttable Increment

Any

LED Segments per Reel

Any

Installation

Mounting

Bracket, aluminum profile, bendable bracket

Construction

Reel Length

16 ft

Max Run Length

16 ft

PCB Width

W16mm*H16mm

Light Source

COB LED White

Material Construction

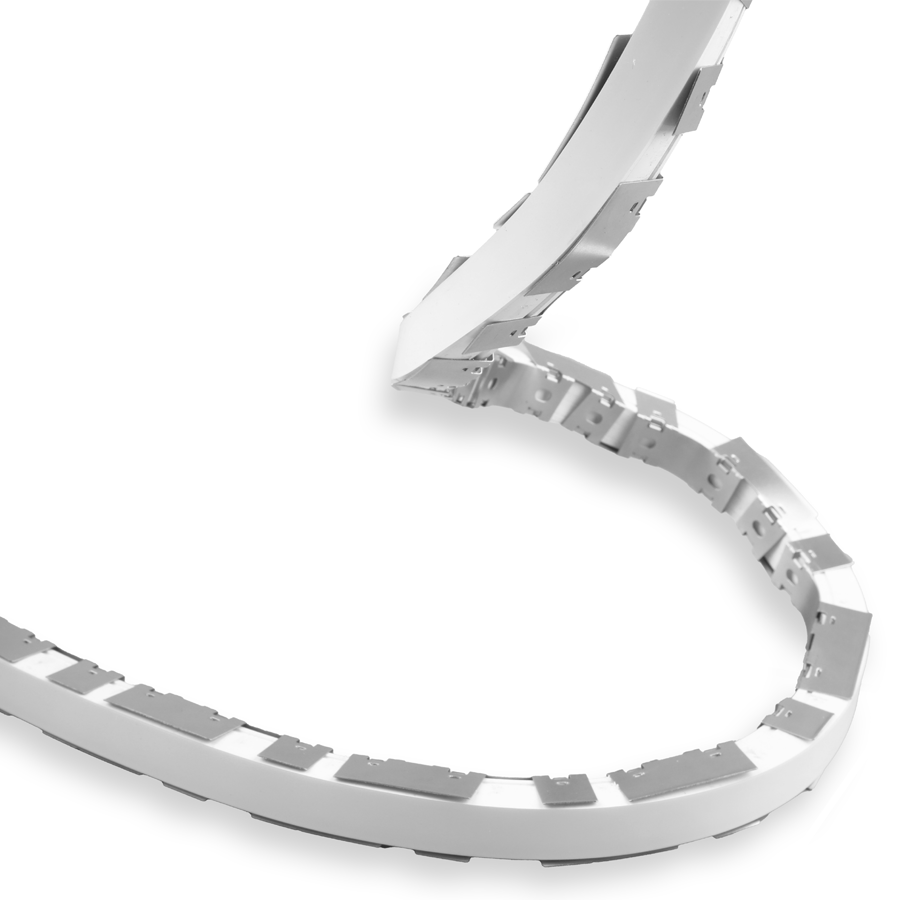

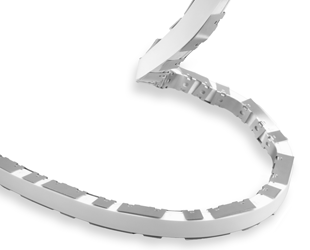

Dual-Flex design which can be used to create curved and complex irregular designs

Bendable

Dual bend

Light Effect

Soft linear lighting performance

Compliance

Listings

UL2108

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP67

Certification Model Number

TNFYN

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

NEC Compliant

Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Other

Field Wiring Accessories

TPF2NF
2-pin Power Feed Kit

TSG
10ml Silicone Glue

Mounting Accessories

TB16
16mm wide mounting brackets

TBB16
16mm wide bendable aluminum channel

TAP16
16mm wide aluminum straight channel

TAP16TL
Trimless 16mm Wide Aluminium Profile

Compatible Drivers

TID-60
Indoor 60W driver

TID-96
Indoor 96W driver

TID/B
J-box for TID Drivers

TOD-96
Outdoor 96W driver

TOD-96x2
96Wx2 outdoor driver

TOD-96x3
96Wx3 outdoor driver

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
