18W 3000/3500/4000/5000K
  • 0-10V dimming
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 18W
Color Temp 3000/3500/4000/5000K
Lumens 1540-3332 lm
Efficacy 122.2-135.4 lm/W
Color Accuracy 84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.15A
208V 0.09A
240V 0.08A
277V 0.07A
Input Watts 12.5-24.6W
Dimensions
Link to Dimension Drawing

Weight: 5.0 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
24W/18W/12W (factory default 18W)
Color temperature (selectable by 5000K, 4000K, 3500K and 3000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-241I73
Electrical
Driver
12W: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.10A, 208V: 0.06A, 240V: 0.05A, 277V: 0.05A
18W: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
24W: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.20A, 208V: 0.12A, 240V: 0.10A, 277V: 0.09A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
6.1% at 120V, 8.5% at 277V
Power Factor
99.8% at 120V, 97.5% at 277V
Surge Protection
1-2kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
12W: Replaces up to (1) F32T8 or (1) F17T8
18W: Replaces up to (1) F32T8 or (2) F17T8
24W: Replaces up to (1) F32T8 or (3) F17T8
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 55°C (131°F)
Housing
Cold Rolled Carbon Steel Sheets and Strip (SPCC)
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting

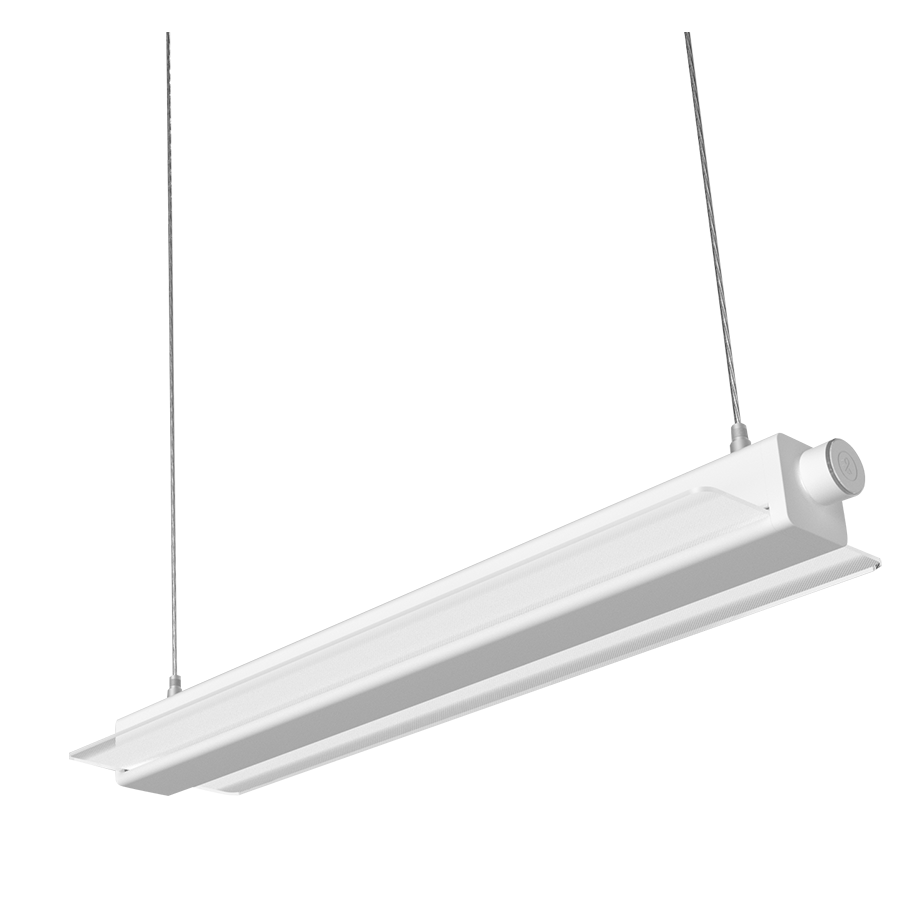

Comes standard with two mounting accessories: aircraft cable for secure, suspended mounts and a stainless bracket for easy mounting to junction boxes. Power cord and canopy cover included.
Lightcloud
Lightcloud Controller Installed
Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Other
Lighting Pattern
70% downlight, 30% uplight
Accessories
Fixture to fixture connector: TOMO CONNECT
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
