TOSLYN

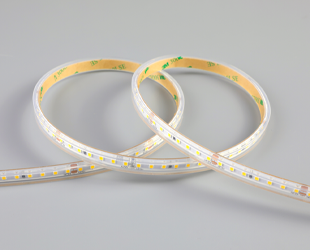

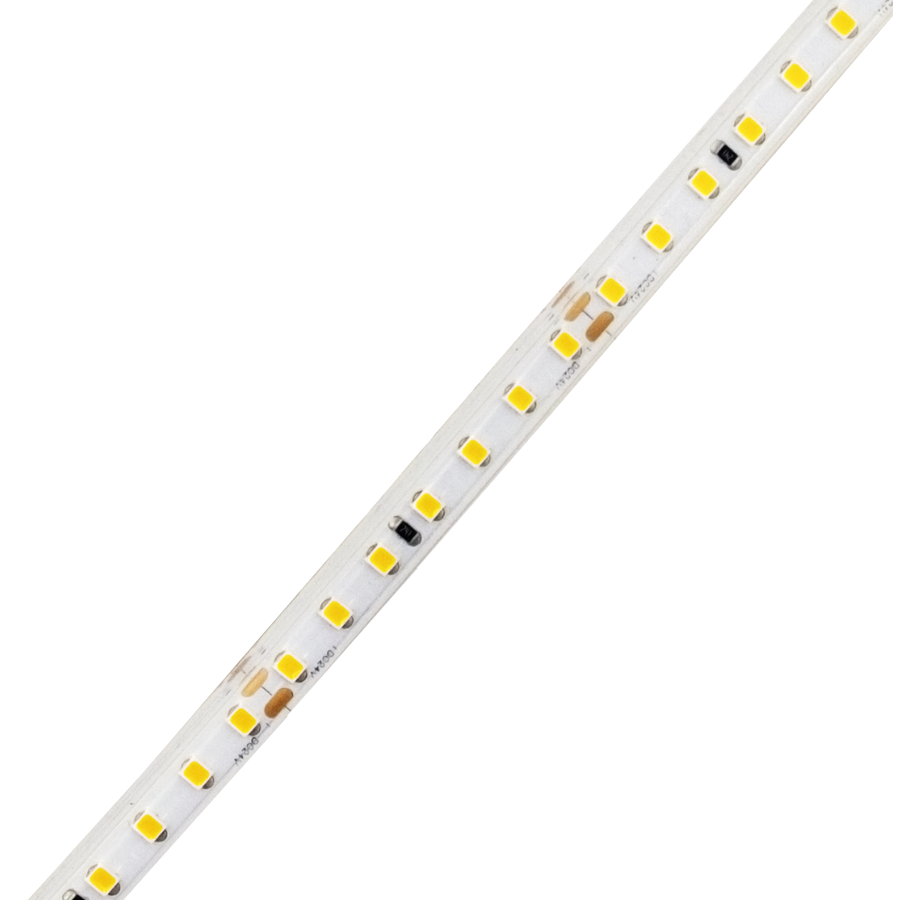

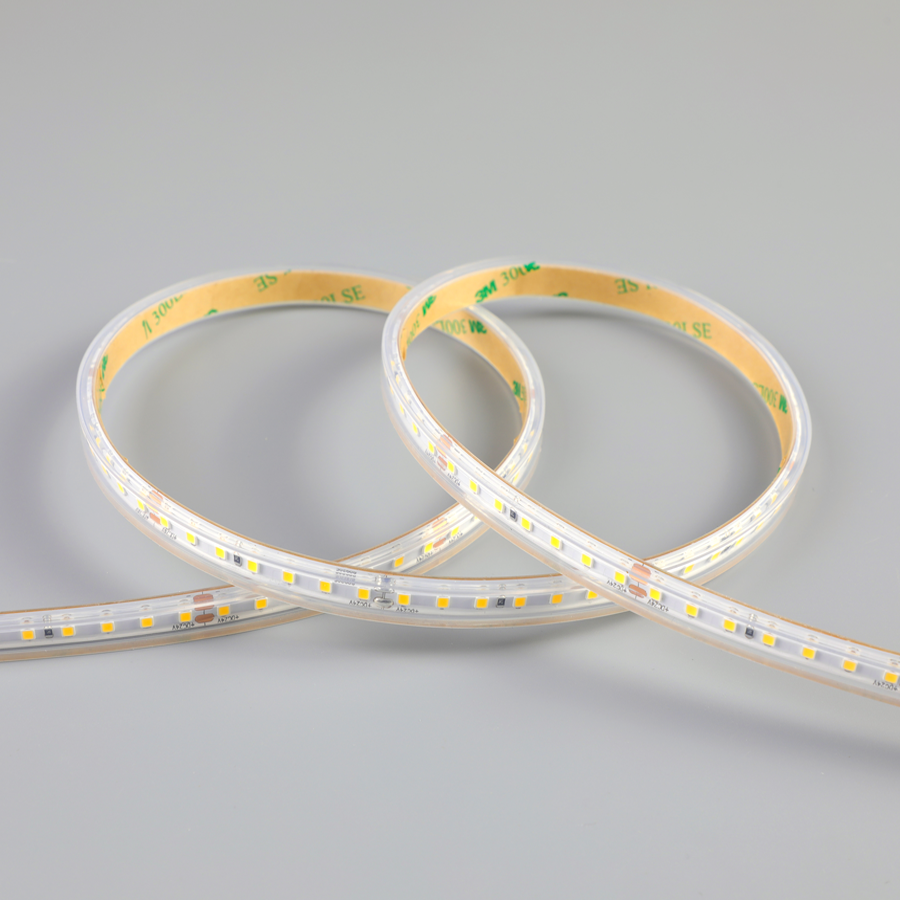

Flexible, wet location LED tape provides energy-efficient lighting for both indoor and outdoor applications.

Easy installation to most surfaces by using pre-attached 3M® double-sided tape

Available in Static White 2700K, 3000K, 4000K

60W & 96W indoor or outdoor rated drivers available (sold separately)

60W & 96W indoor or outdoor rated drivers available (sold separately)

View Technical Specs

View Price & Availability

Performance

Watts	2.5W/ftW
Color Temp
Lumens	260lm/ft lm
Efficacy	105
Color Accuracy
L70 Lifespan	50,000 Hours

Type	Constant Voltage, Class 2
120V
208V
240V
277V
Input Watts	2.5 W/ftW

Technical Specifications

Performance

Description

FLEXTAPE is a bendable, outdoor LED tape that provides energy-efficient lighting for both indoor and outdoor applications.

Input Wattage

2.5W/ft

Lumens/Foot

260 lm/ft

Efficacy

105lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

LED Characteristics

Chip Density

38 chips/ft

Beam Angle

120°

Color Temperature

3500K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 60

Color Consistency

<3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Field Cuttable Increment

Cuttable every 2"

Electrical

Input Voltage

DC24V

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Storage Temperature

-4°F (-20°C) to 140°F(60°C)

Installation

Mounting

3M Tape, aluminum profile, silicone clips

Construction

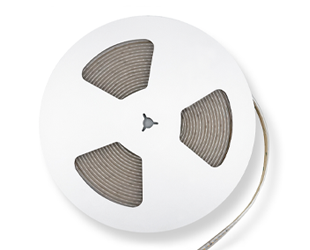

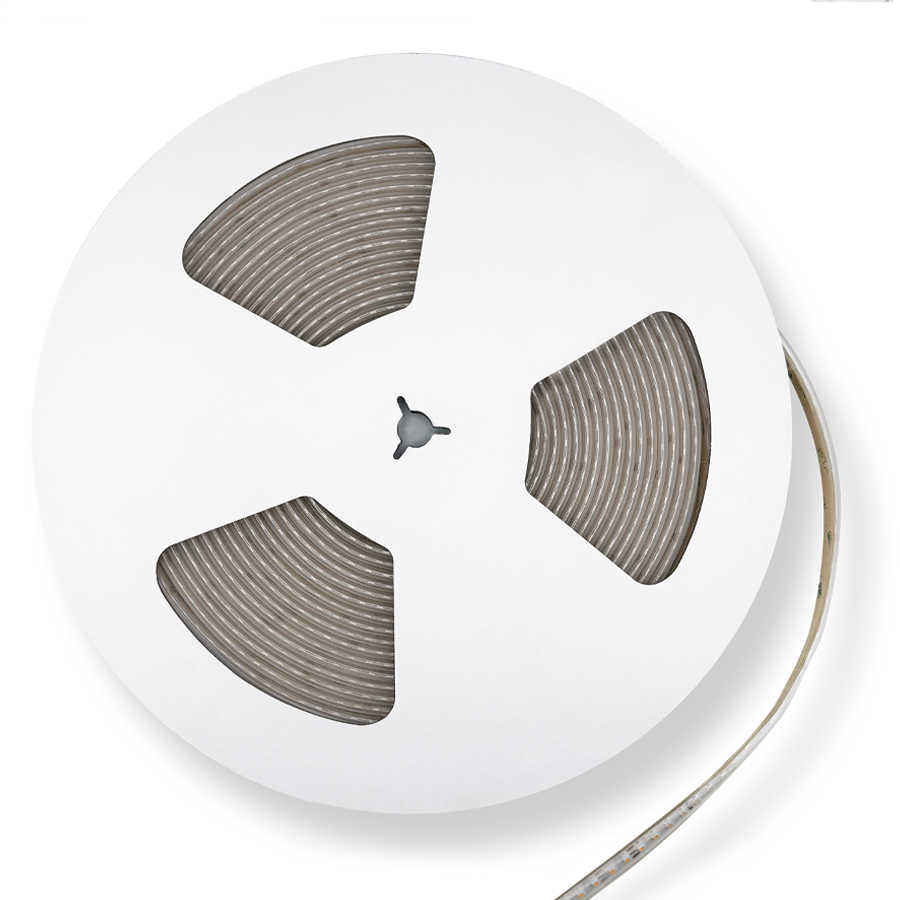

Reel Length

100 ft

Max Run Length

32 ft

PCB Width

8mm

Light Source

SMD 2835

Material Construction

Weather-reisistant, high-grade silicone cover with super-flexible bending .

Bendable

Top bend

Light Effect

Soft linear lighting performance

Compliance

Listings

UL2108

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP67 Extrusion

IC Rated

Air Tight

Energy Star Approved

DLC NLC Listed

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

TOSLYN

California Title 20 Compliant

California Title 24 JA8 Compliant

Meets certification standards

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

NEC Compliant

Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Other

Field Wiring Accessories

TPF2
2-Pin power feed kit

TSG
10ml Silicone glue

TOJ2
2-Pin outdoor connector kit

TOJ2L
2-Pin outdoor L-shape connector kit

Mounting Accessories

TSC2
Silicone mounting clips

TAP15
15.5mm wide aluminum channel kits

TAP16TL
Trimless 16mm inner wide recessed aluminum profile

TAP16C
Corner 16mm wide aluminum profile

Compatible Drivers

TID-60
Indoor 60W driver

TID-96
Indoor 96W driver

TID/B
J-box for TID driver

TOD-96
Outdoor 96W driver

TOD-96x2
96Wx2 outdoor driver

TOD-96x3
96Wx3 outdoor driver

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
