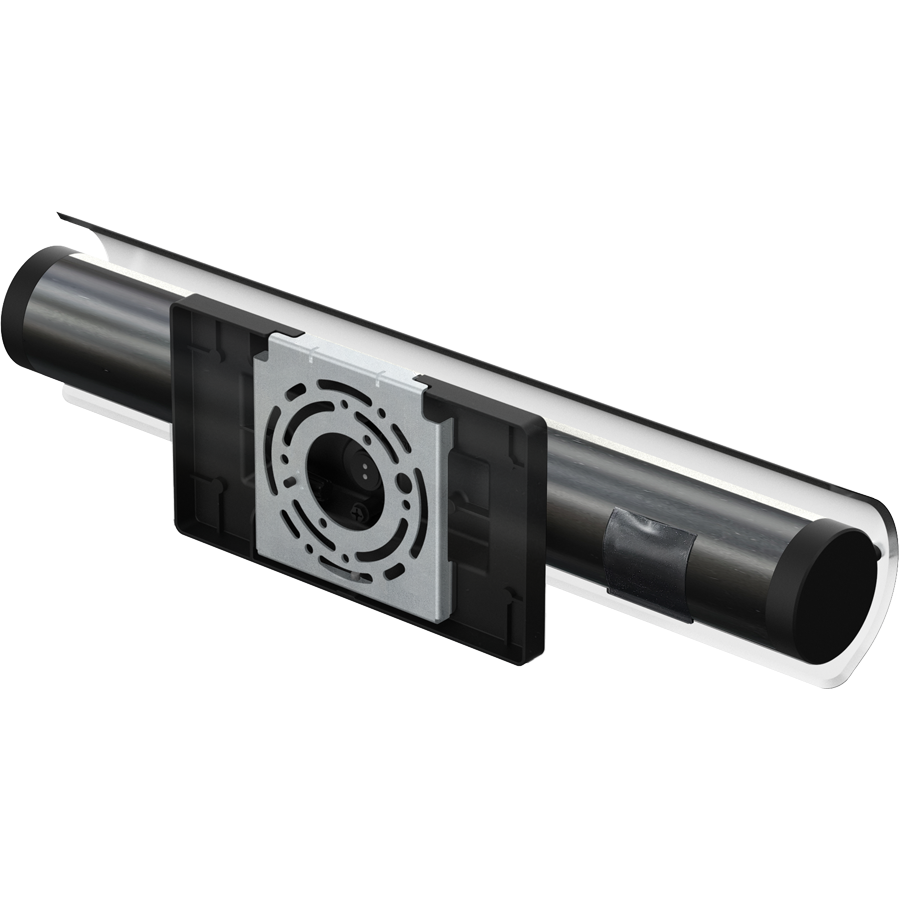

V1-18B
V1-18B
16W
- Beautiful brushed aluminum housing with decorative end caps
- Frosted polycarbonate curved outer lens diffuses light evenly
- Architectural-grade, matte paint finish available in Brushed Nickel, Black, and Brass
- 3 Selectable wattages & 5 CCTs: 2700/3000/3500/4000/5000K
- Damp rated, ADA Compliant, Title 24 Compliant, 50,000 hrs, 5-year no compromise warranty
Performance
| Watts | 16/12/8W |
| Color Temp | |
| Lumens | 855-1871 lm |
| Efficacy | 101.9-119.5 lm/W |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.13A/0.10A/0.07A |
| 208V | 0.05A/0.06A/0.08A |
| 240V | 0.04A/0.06A/0.07A |
| 277V | 0.04A/0.05A/0.06A |
| Input Watts | 8.5-15.8W |

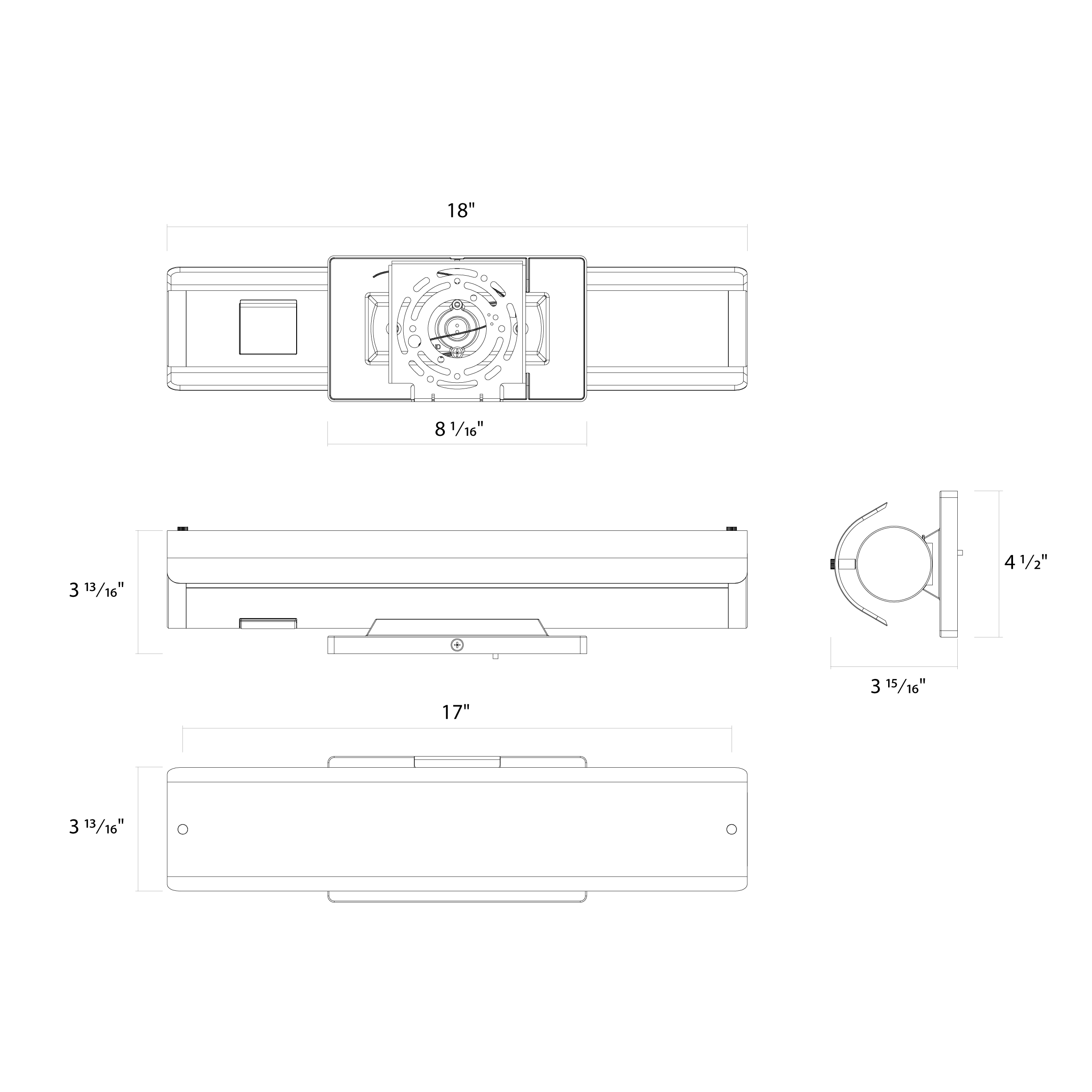

Dimensions
Weight: 2.4 lbs
Technical Specifications
Performance
Product Type
Vanity Bath Bar
Description
A sleek & modern vanity featuring field-adjustable wattage and CCT, and a sleek curved lens that's perfect for elegant applications.
Wattage Equivalency
150W Incandescent
Input Wattage
16W
Lumens (Nominal)
1,600/1,200/800lm
Lumens (Measured)
1,600lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Driver
Linear
Electrical
THD
<50%
Power Factor
>0.9
Dimmable
Yes, dimmable down to 5% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
185mA
Flicker
<30%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Length
18"
Shape

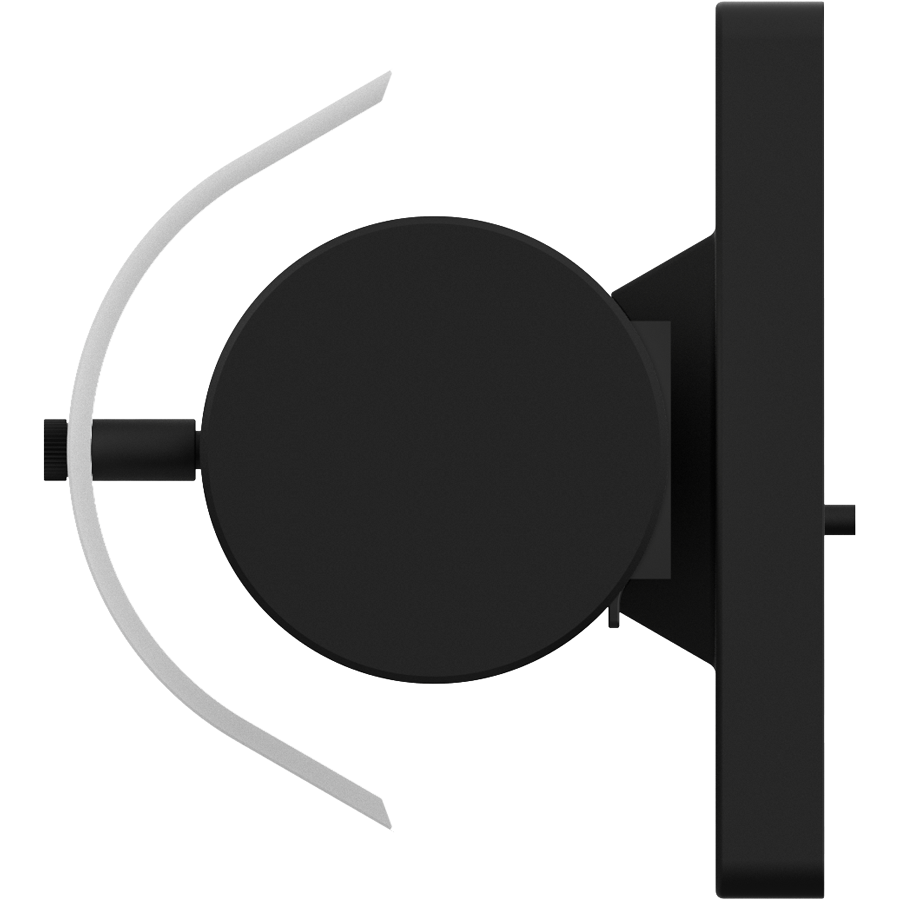

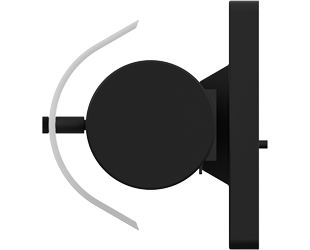

Cylindrical housing and lens with a curved decorative diffuser
Finish
Black
Enclosure Material
Brushed aluminum housing
Lens Finish
Frosted White
Lens
Curved decorative diffuser
LED Characteristics
Beam Angle
120°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method

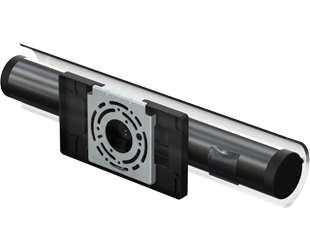

Wall bracket & Wire Nuts included to attach to standard junction box and connect to mains voltage.
Installation Orientation
Horizontal or vertical
Mounting
Wall mount
Compliance
UL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Certification Model Number
V1-18B
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
None
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
