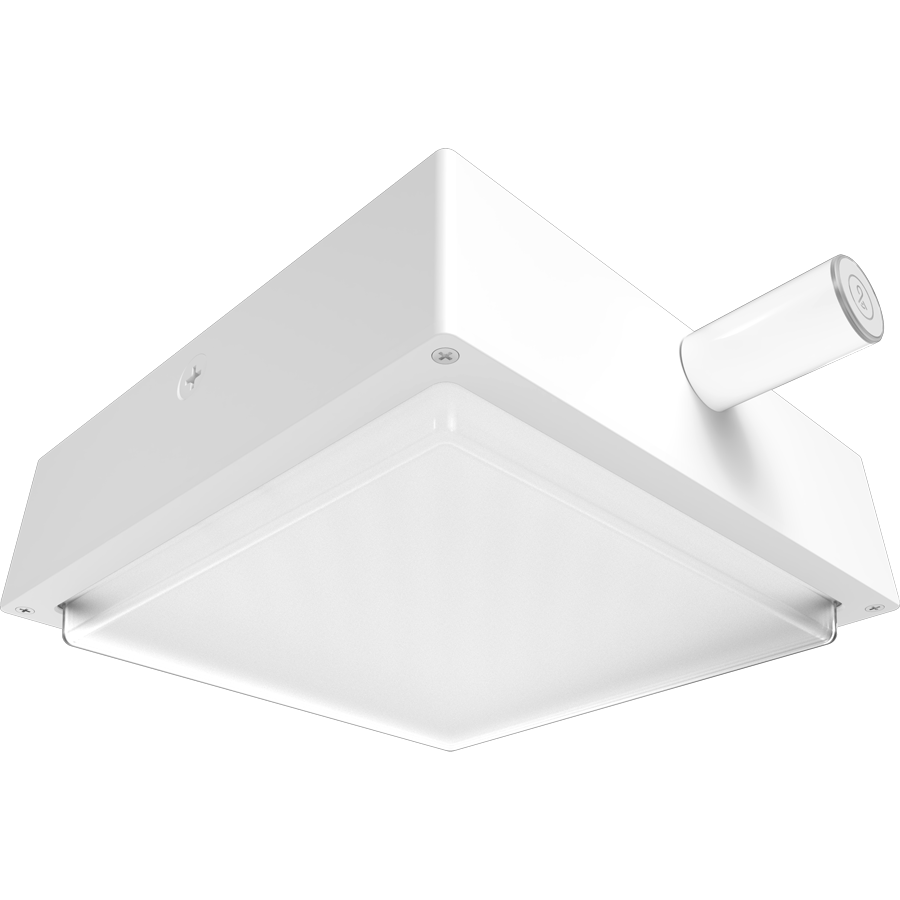

VAN34-60FRW/LC/E
VAN34-60FRW/LC/E
60W 3000/4000/5000K
- 100,000-Hour LED lifespan
- 0-10V Dimming
- IP65 Rated
- 5-Year, limited warranty
Performance
| Watts | 60/50/40W |
| Color Temp | 3000/4000/5000K |
| Lumens | 5,929-8,463 lm |
| Efficacy | 130.9-162.4 lm/W |
| Color Accuracy | 83-86 CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.51A/0.41A/0.33A |
| 208V | 0.30A/0.24A/0.20A |
| 240V | 0.27A/0.21A/0.18A |
| 277V | 0.23A/0.19A/0.16A |
| Input Watts | 38.6-61.1W |
Dimensions
Weight: 7.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
60W/50W/40W (factory default: 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Photocell Selectable:
Built-in on/off photocell (factory default: off)
60W/50W/40W (factory default: 60W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Photocell Selectable:
Built-in on/off photocell (factory default: off)
Wireless
Lightcloud Controller Installed
LCLC/K
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-QBTYVS (Stairwell and Passageway Luminaires)
DLC Product Code: S-WFTCMF (Fuel Pump Canopy Luminaires)
DLC Product Code: S-QBTYVS (Stairwell and Passageway Luminaires)
DLC Product Code: S-WFTCMF (Fuel Pump Canopy Luminaires)
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
60W: 120V: 0.51A, 208V: 0.30A, 240V: 0.27A, 277V: 0.23A
50W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
40W: 120V: 0.33A, 208V: 0.20A, 240V: 0.18A, 277V: 0.16A
60W: 120V: 0.51A, 208V: 0.30A, 240V: 0.27A, 277V: 0.23A
50W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.19A
40W: 120V: 0.33A, 208V: 0.20A, 240V: 0.18A, 277V: 0.16A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
Yes
Dim to Off
Yes
Battery Backup
Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V-277V.
Battery Backup Light Loss Factor
0.08
Surge Protection
L/N: 4KV, L/N-PE: 6KV
Photocell
Bulit-in photocell included with on/off switch
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is 0°C (32°F)
Maximum Ambient Temperature w/Battery Backup
Suitable for use in up to 60°C (140°F)
Lens
Polycarbonate frosted drop lens
Gaskets
Ethylene Propylene Diene Monomer (EPDM)
Housing
Die-cast aluminum
Reflector/Tray
Aluminum
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
