VANLED28YFR/E2
VANLED28YFR/E2
- Fits the footprint of older canopy lights
- Vandal resistant and UV resistant lens
- Ultra-high efficiency
- Clean, contemporary, low-profile design
- Available with drop lens or flat lens
- IP66 rated, keeps dust, bugs and water out
- Photo and motion sensor options available
Performance
| Watts | 28W |
| Color Temp | 3000K (Warm) |
| Lumens | 3,325 lm |
| Efficacy | 120.7 |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.14A |
| 240V | 012A |
| 277V | 0.11A |
| Input Watts | 27.5W |
Dimensions
Weight: 11.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations. Covered Ceiling Mount Only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Class 2, Constant Current, 120-277V, 50-60Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
10.88% at 120V, 11.72% at 277V
Power Factor
98.1% at 120V, 94.7% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120.
Battery Backup Light Loss Factor
0.4
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
RAB LEDs exceed industry standards for chromatic stability
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Maximum Ambient Temperature
Suitable for use in up to 75°C (167°F)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Lens
Vandal-resistant polycarbonate textured opaque for low glare frosted drop lens
Housing
Die-cast aluminum housing and lens frame with (4) 1/2" NPS side conduit entries and weatherproof rear wire plug and access plate
Air Tight
Housing certified Air Tight as per ASTM-E283
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Installation
Mounting
Ceiling mount to recessed junction with knockout template or directy to ceiling surface, utilizing side conduit entry points
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Performance
Wattage Equivalency
Equivalent to 100W Metal Halide
Recently Viewed Products
ALED4T105YW/D10/PCT
Arealights 12971 Lumens Aled Type Iv 8In Pole Arm 3K 105W 120V-277V 0-10V Dimming Twistlock Photocell White
NDLED4RD-50YN-S-S
Recessed Downlights 12 Lumens Ndled4Rd 4 Inch Round Universal Dimming 50 Degree Beam Spread 3500K 80Cri Specular Cone Silver Trim

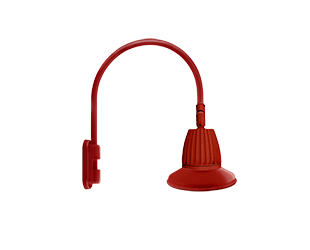

GN2LED13YRADR
