VBR100B

Spec Sheet Instructions Spec Sheet

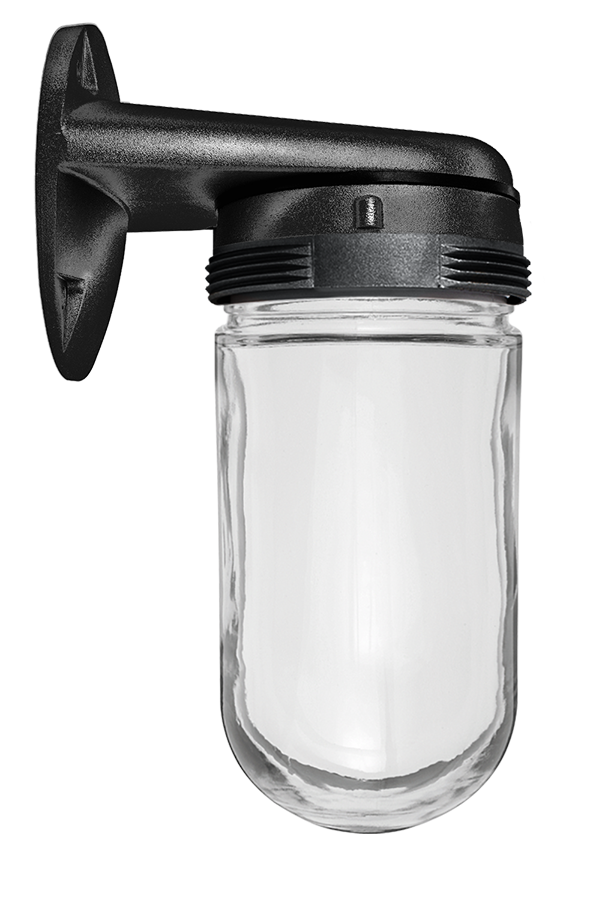

VBR100B

Set screw keeps guard securely in place

All stainless steel hardware

Close-up plugs allow Phillips or slotted screwdrivers for easy installation

High temperature silicone internal gaskets

Premium porcelain socket with 150C 8" long leads attached

View Technical Specs

View Price & Availability

Performance

Watts	150W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for use in dwellings. Suitable for use with 90°C supply wiring. Complies with UL Standard 1598. For non-hazardous locations where the lamp, socket and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors and gases.

Electrical

Wattage

See catalog number chart for maximumWage with clear glass, colored glass and Permaglobes

Socket

Premium porcelain with 150°C 8" leads attached. Fastened with 2 stainless steel screws.

Maximum Watts

150W

Colored Globe Maximum Watts

100W

Construction

Globes

Supplied with clear heat resistant glass globes unless otherwise stated. Colored and white glass globes available. Unbreakable RAB Permaglobes available in clear and in color.

Optional Reflectors

Highly reflective white baked polyester epoxy powder finish over a heavy gauge aluminum base. Reflectors thread onto fixtures. See RV series.

No Guard Supplied
