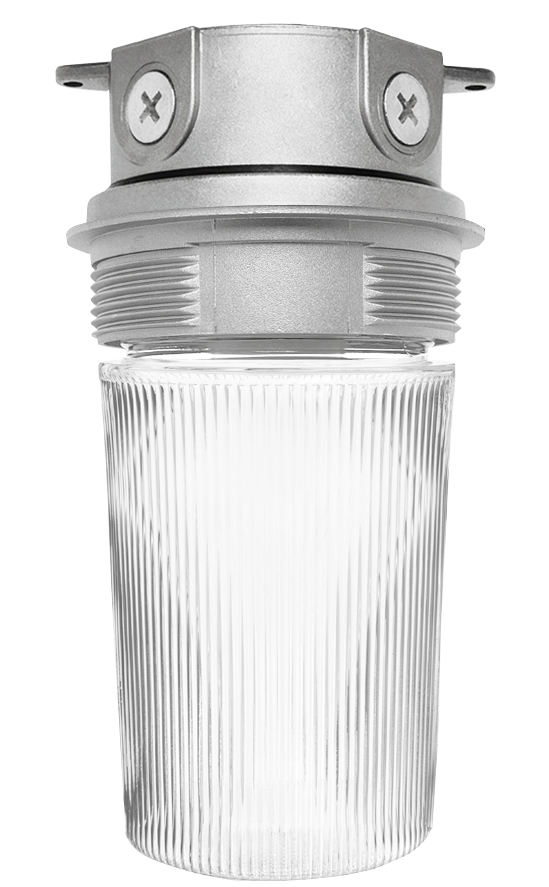

• All stainless steel hardware
  • Close-up plugs allow Phillips or slotted screwdrivers for easy installation
  • Junction box with sturdy mounting lugs
  • UL Listed for use with 90°C supply wiring OK for use in dwellings and wet locations
  • High temperature silicone internal gaskets
  • Premium porcelain socket with 150C 8" long leads
View Technical Specs
Performance
Watts 100W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan
Type
120V
208V
240V
277V
Input Watts
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for use in dwellings. Suitable for use with 90°C supply wiring. Complies with UL Standard 1598. For non-hazardous locations where the lamp, socket and wiring require protection from rain, corrosive fumes, non-combustible dusts, moisture, non-explosive vapors and gases. For lamp base up installation only when outdoors.
Construction
Globe
Supplied with clear flat bottom prismatic polycarbonate globe. Not for use with diecast or wire guard.
Optional Guard
Order flat bottom guard separately. CAT# GD200BAR.
Hub Size
3/4" Tapped
Electrical
Maximum Watts
100W
Input Voltage
120V
