VXBRLED26DG/UP-3/4
VXBRLED26DG/UP-3/4
- Specially designed for mounting as an uplight
- 100,000-hour life based on LM-80 results and TM-21 calculations
- Die Cast Aluminum Housing
- Classic design with state of the art LED technology
- Frosted globe emits uniform glow
Performance
| Watts | 26W |
| Color Temp | 4900K (Cool) |
| Lumens | 2,004 lm |
| Efficacy | 73.9 lm/W |
| Color Accuracy | 68 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.14A |
| 240V | 0.13A |
| 277V | 0.11A |
| Input Watts | 27.1W |

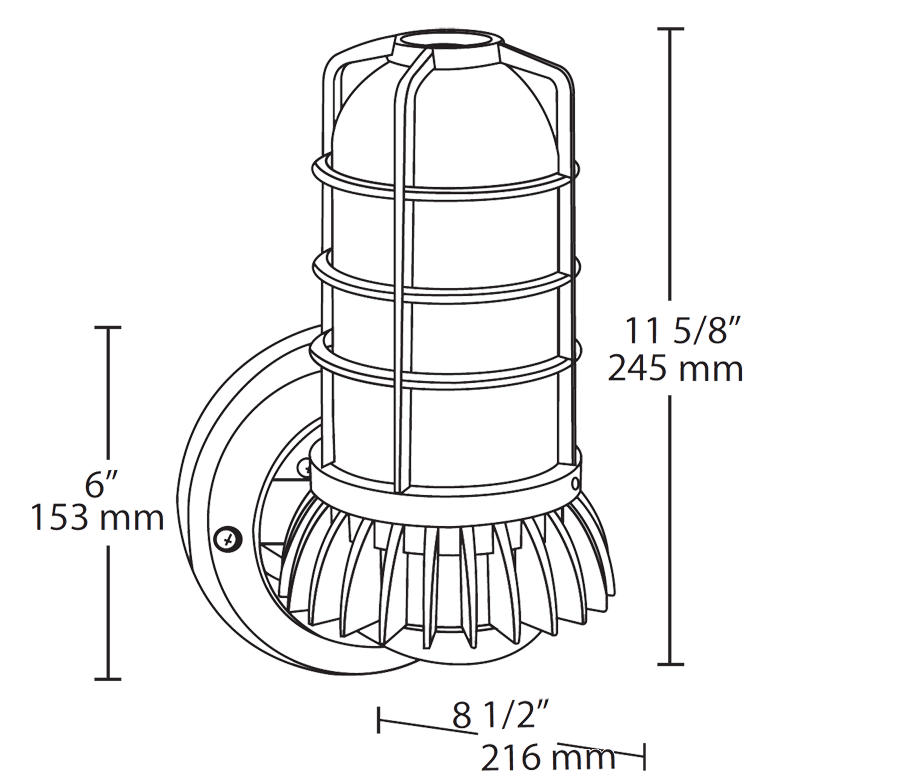

Dimensions
Weight: 5.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 200W Incandescent
LED Characteristics
LED
Multi-chip 26W high-output, long-life LED
Color Temperature
4900K
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C38.377-2011.
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
All die-cast aluminum construction
Gaskets
High-temperature silicone
Finish
Natural shot blasted aluminum
Guard and Globe
Shot blasted guard with frosted globe
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Three 3/4" NPS conduit entry points
Other
Patents
The design of the LVAPOR is protected by the following patents US pat. pending; D651738 CN ZL201230040341.3; ZL201130028360.X, TW pat. 101301367 MX 35699; pat. pending CA.
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Constant Current, 100V-277V, 50/60 Hz, 0.48 Amp, THD is less than or equal to 20% Power Factor 97.9%.
THD
16.4% at 277V
