VXLED13DG/UP BLU

Spec Sheet Instructions Spec Sheet

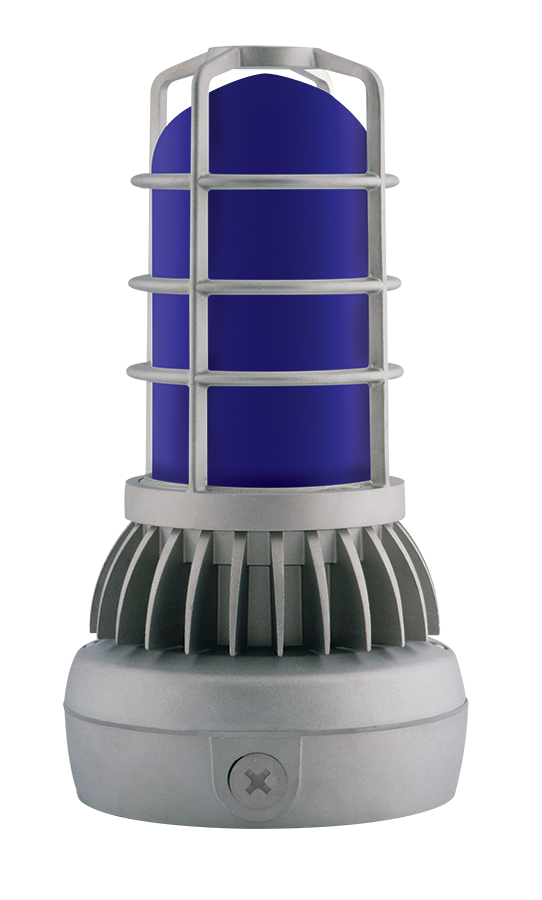

VXLED13DG/UP BLU

Ideal for call boxes on campuses, parking areas and walkways

Can be mounted as an uplight

100,000-hour LED lifespan

True blue design with blue globe and blue LED

Mounts to wall or existing pole

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.13A
208V	0.08A
240V	0.07A
277V	0.06A
Input Watts	15.1W

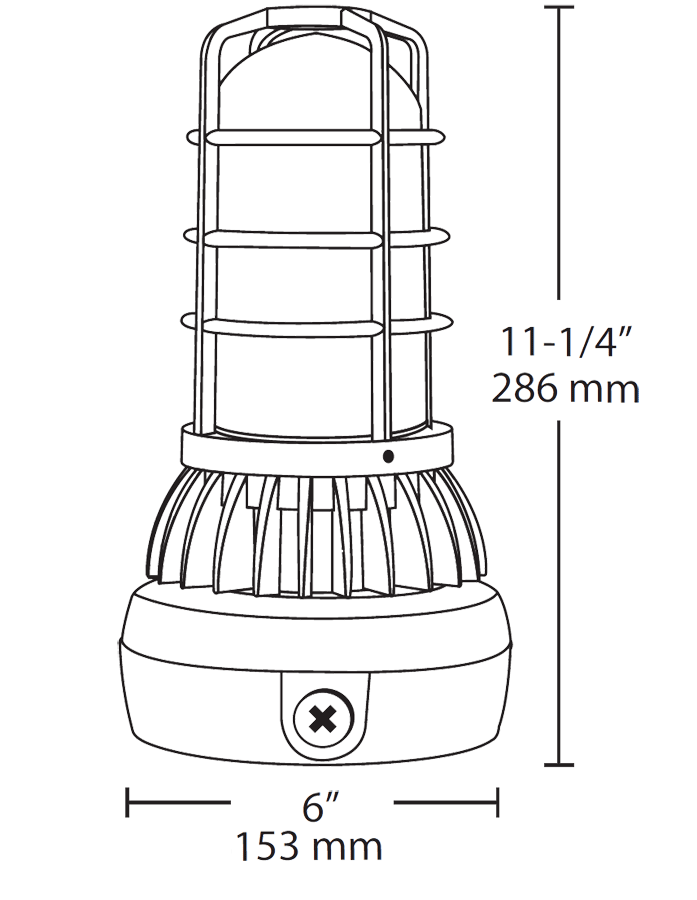

Dimensions

Weight: 5.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IESNA LM-80 Testing

RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-80

LED Characteristics

LED

Multi-chip, 13W high-output, long-life blue LED

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Housing

Precision die-cast aluminum housing, lens frame

Gaskets

High-temperature silicone

Finish

Natural shot blasted aluminum

Guard and globe

Shot blasted guard with internally frosted blue globe

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

(3) 1/2" NPS conduit entry points

Other

Patents

The design of the LBEACON™ is protected by patents pending in US, Canada, China, Taiwan and Mexico

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Electrical

Driver

Constant Current, 100V-277V, 50/60 Hz, 100-240VAC = 0.3-0.15 Amp, 277VAC = 15Amps. THD is less than equal to 20%, Power Factor = 97.5%.

THD

6.1% at 120V, 10.1% at 277V
