W17-150L has been discontinued. You have been redirected to its new replacement, C-WALLL
Return to W17-150L

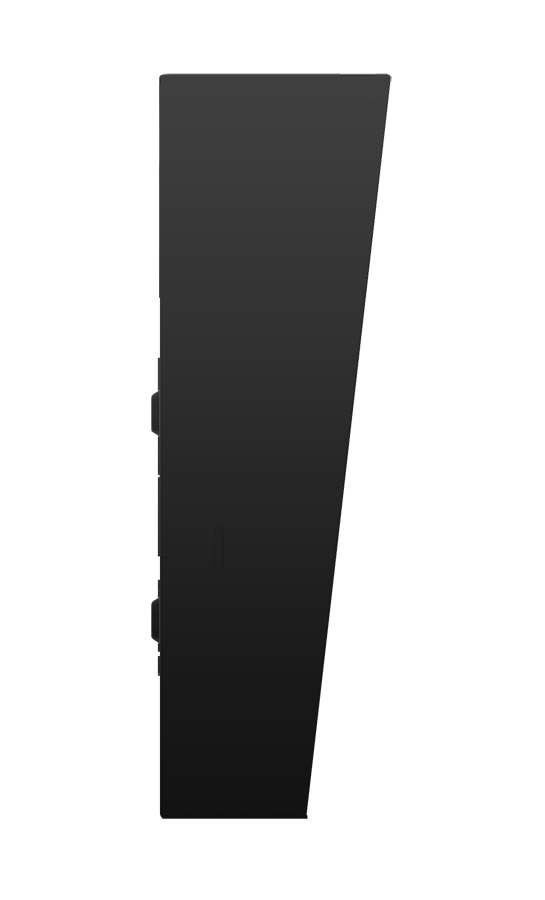

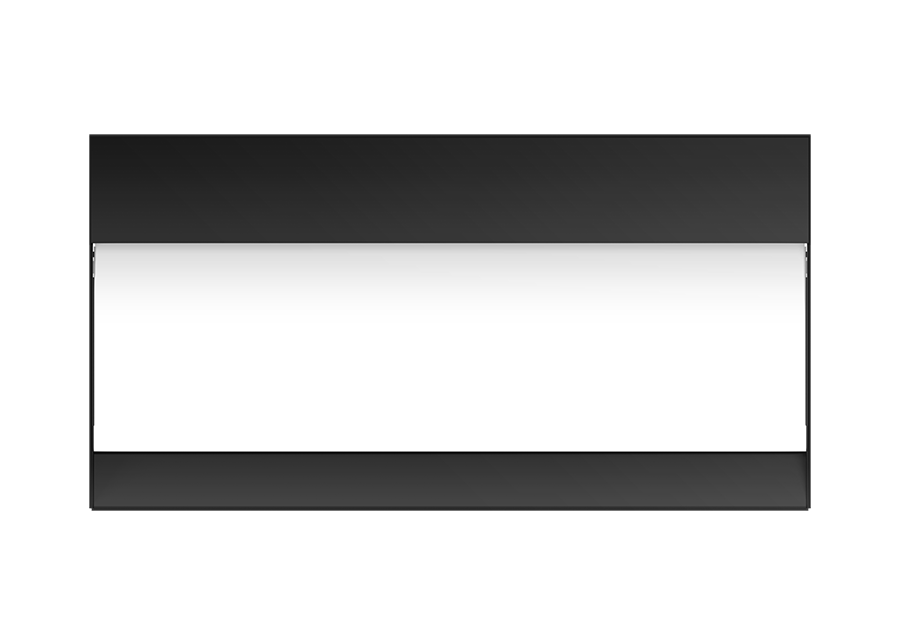

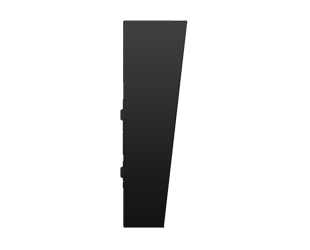

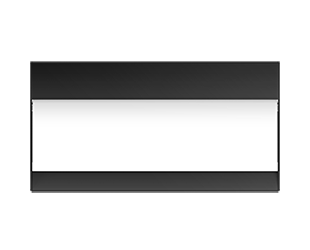

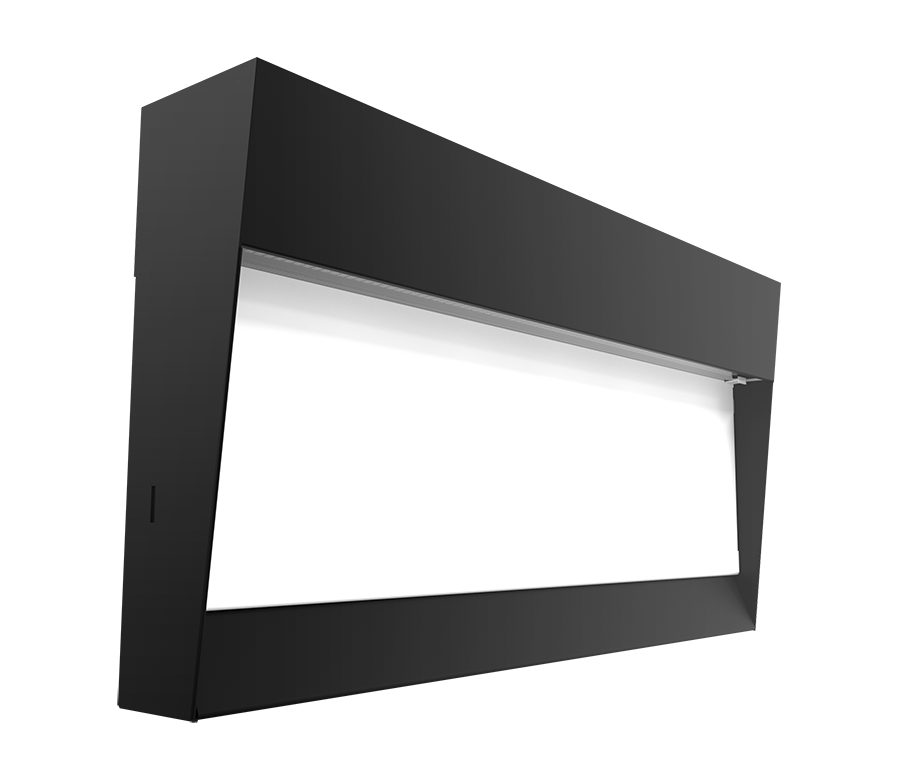

C-WALLL
65W 3000/4000/5000K
- 100,000-hour LED Life
- 120-277V
- DLC Premium listed models
- Compatible with RAB specified 0-10V dimming system
- 5-Year, no-compromise warranty
Performance
| Watts | 65/100/125W |
| Color Temp | 3000/4000/5000K |
| Lumens | 8881-17021 lm |
| Efficacy | 122.7-145.7 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.54A/0.55A/0.56A/0.80A/0.82A/0.99A/1.02A/1.05A |
| 208V | 0.38A/0.39A/0.51A/0.52A/0.59A/0.61A |
| 240V | 0.33A/0.34A/0.44A/0.45A/0.51A/0.53A |
| 277V | 0.29A/0.39A/0.47A/0.48A |
| Input Watts | 66.2-126W |

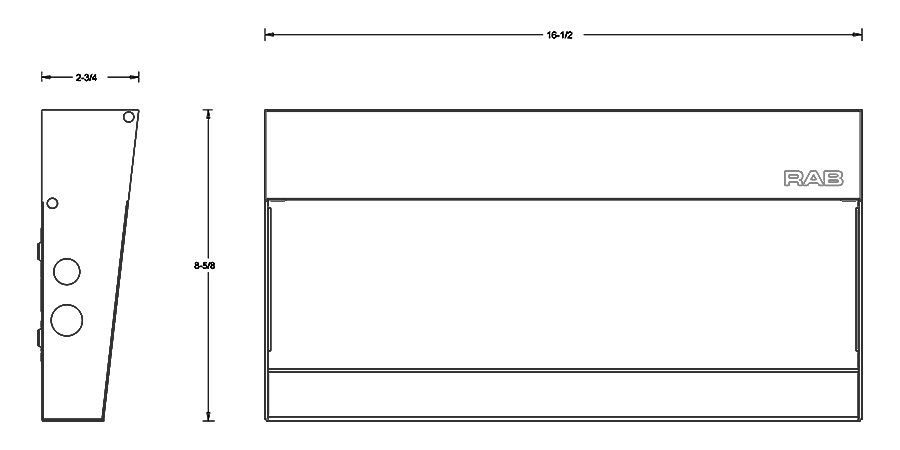

Dimensions
Weight: 7.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
125/100/65W (factory default: 100W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K)
125/100/65W (factory default: 100W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default: 4000K)
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class II, 120-277V, 50/60 Hz:
125W: 120V: 1.05A, 208V: 0.60A, 240V: 0.53A, 277V: 0.48A
100W: 120V: 0.99A, 208V: 0.48A, 240V: 0.43A, 277V: 0.39A
65W: 120V: 0.56A, 208V: 0.32A, 240V: 0.30A, 277V: 0.29A
125W: 120V: 1.05A, 208V: 0.60A, 240V: 0.53A, 277V: 0.48A
100W: 120V: 0.99A, 208V: 0.48A, 240V: 0.43A, 277V: 0.39A
65W: 120V: 0.56A, 208V: 0.32A, 240V: 0.30A, 277V: 0.29A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
Yes
Dim to Off
Yes
Photocell
Integrated photocell included with on/off switch
Surge Protection
4 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Housing
Recycled aluminum and sheet metal
Mounting
Surface mount for recessed junction box; 3 conduit entry points
Lens
Bio-based Polymethy Methacrylate (PMMA) lens
Reflector/Tray
Aluminum
Gaskets
High-temperature silicone
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
