W17-150LN/PCU

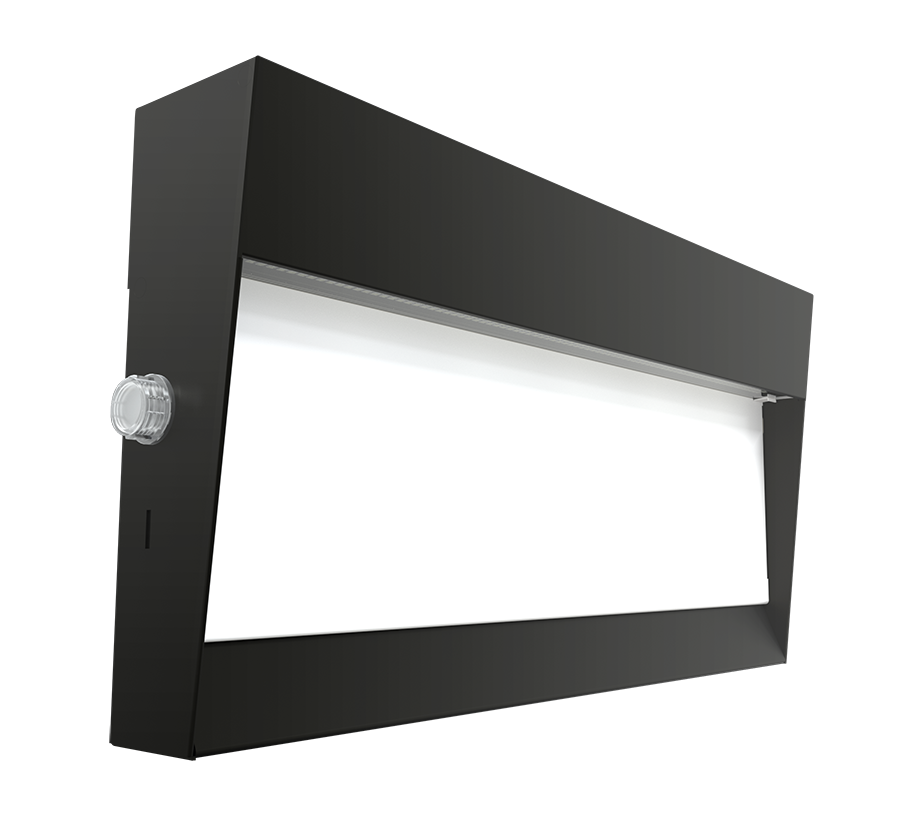

Ultra-economy wall pack with a sleek, contemporary look

Covers footprint of large-sized HID wall packs

View Technical Specs

View Price & Availability

Performance

Watts	139W
Color Temp	4000K (Neutral)
Lumens	15,217 lm
Efficacy	118.7
Color Accuracy	83 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	1.16A
208V	0.67A
240V	0.58A
277V	0.51A
Input Watts	128.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 8.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft of the ground.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-F68NMG

Electrical

Driver

Constant Current, Class P, 120-277V, 50/60Hz, 120V: 1.16A, 208V: 0.67A, 240V: 0.58A, 277V: 0.51A

THD

2.21% at 120V, 10.24% at 277V

Power Factor

99.9% at 120V, 95.9% at 277V

Surge Protection

2.5kV

Photocell

120-277V Button photocell included. Photocell is compatible with 120V-277V.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Glass

Gaskets

High-temperature silicone

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Housing contains two (2) conduit entry points, one on each side, and knockout pattern for junction box or direct wall mounting.

Other

Replacement

Replaces up to 400W Metal Halide

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
