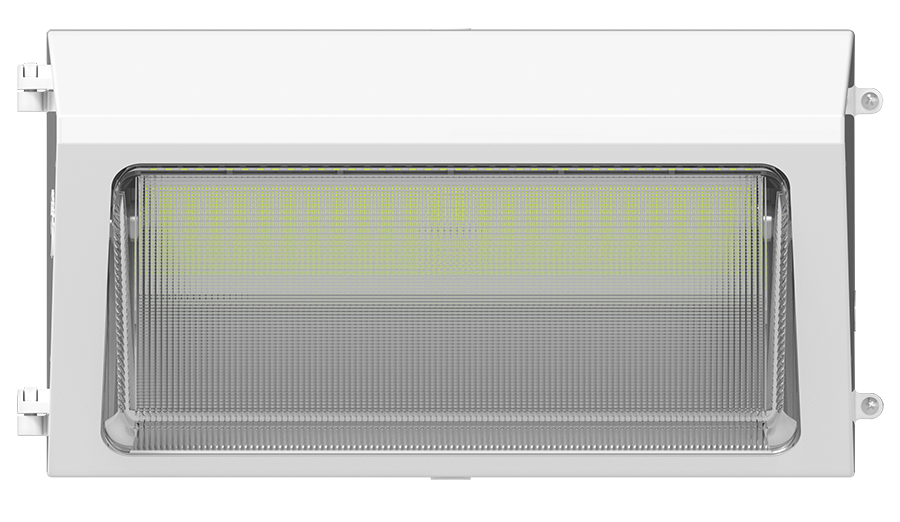

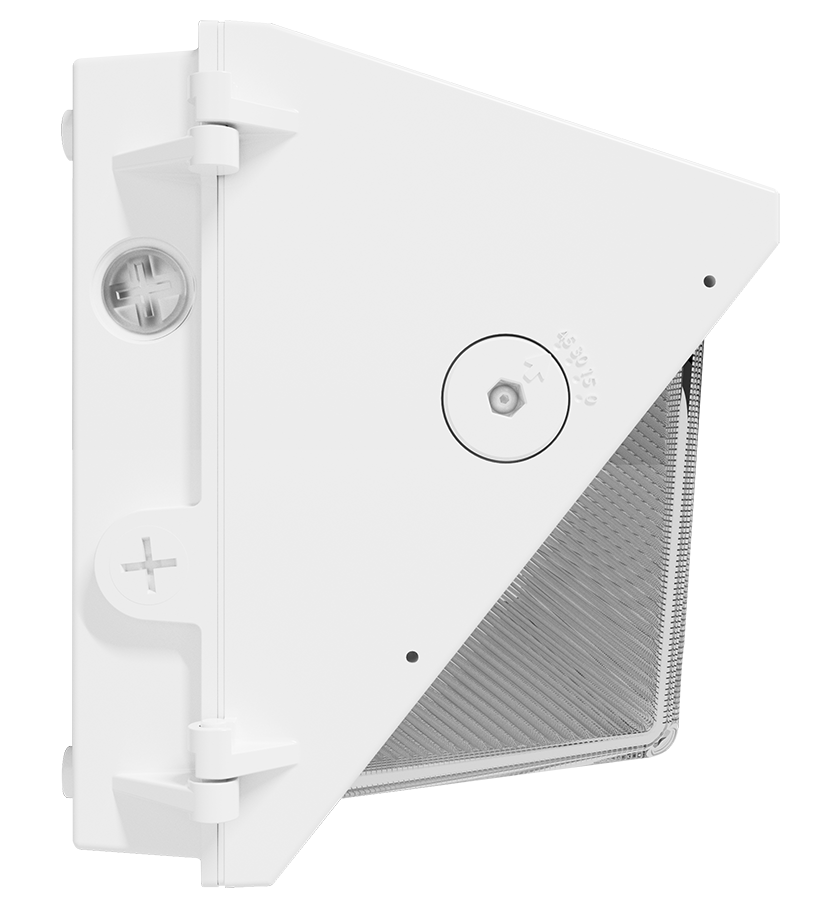

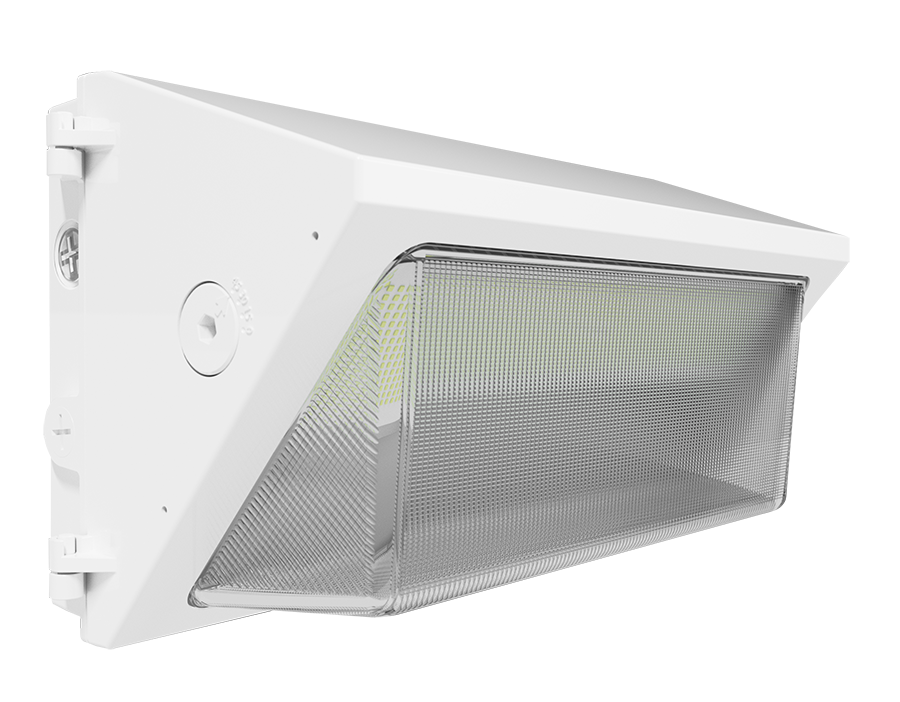

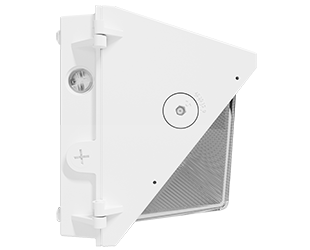

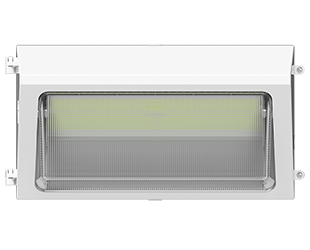

W22-L-150W
150W 3000/4000/5000K
- 100,000-Hour LED lifespan
- 0-10V dimming standard
- 5-Year, limited warranty
Performance
| Watts | 150/125/100/75W |
| Color Temp | 3000/4000/5000K |
| Lumens | 10,103-20,920 lm |
| Efficacy | 121.5-161.6 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 1.50A |
| 208V | 0.80A |
| 240V | 0.70A |
| 277V | 0.60A |
| Input Watts | 74.5-147.2W |
Dimensions
Weight: 13.0 lbs
Technical Specifications
Field Adjustability
Cutoff Adjustability
45°, 30°, 15° and 0° (factory default 45°)
Field Adjustable
Field Adjustable Light Output:
150W/125W/100W/75W (factory default 150W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
150W/125W/100W/75W (factory default 150W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-RDTJRQ
DLC Product Code: S-RDTJRQ
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz:
150W: 120V: 1.50A, 208V: 0.80A, 240V: 0.70A, 277V: 0.60A
125W: 120V: 1.05A, 208V: 0.60A, 240V: 0.52A, 277V: 0.46A
100W: 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A
75W: 120V: 0.63A, 208V: 0.36A, 240V: 0.32A, 277V: 0.27A
150W: 120V: 1.50A, 208V: 0.80A, 240V: 0.70A, 277V: 0.60A
125W: 120V: 1.05A, 208V: 0.60A, 240V: 0.52A, 277V: 0.46A
100W: 120V: 0.83A, 208V: 0.48A, 240V: 0.42A, 277V: 0.36A
75W: 120V: 0.63A, 208V: 0.36A, 240V: 0.32A, 277V: 0.27A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Photocell
Integrated photocell included with on/off switch
Surge Protection
DM 4KV+ CM 6KV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Performance Data
Wattage Equivalency
150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
125W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
75W: Replaces up to 350W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
125W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
75W: Replaces up to 350W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Housing
Die-cast aluminum
Lens
Glass
Reflector
Aluminum
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Suface mount for recessed junction box; 3 conduit entry points
Optical
BUG Rating
150W: B3 U5 G5
125W: B3 U5 G5
100W: B3 U5 G5
75W: B2 U4 G5
125W: B3 U5 G5
100W: B3 U5 G5
75W: B2 U4 G5
Other
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
