W22-M-100/LCBS/MVS

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

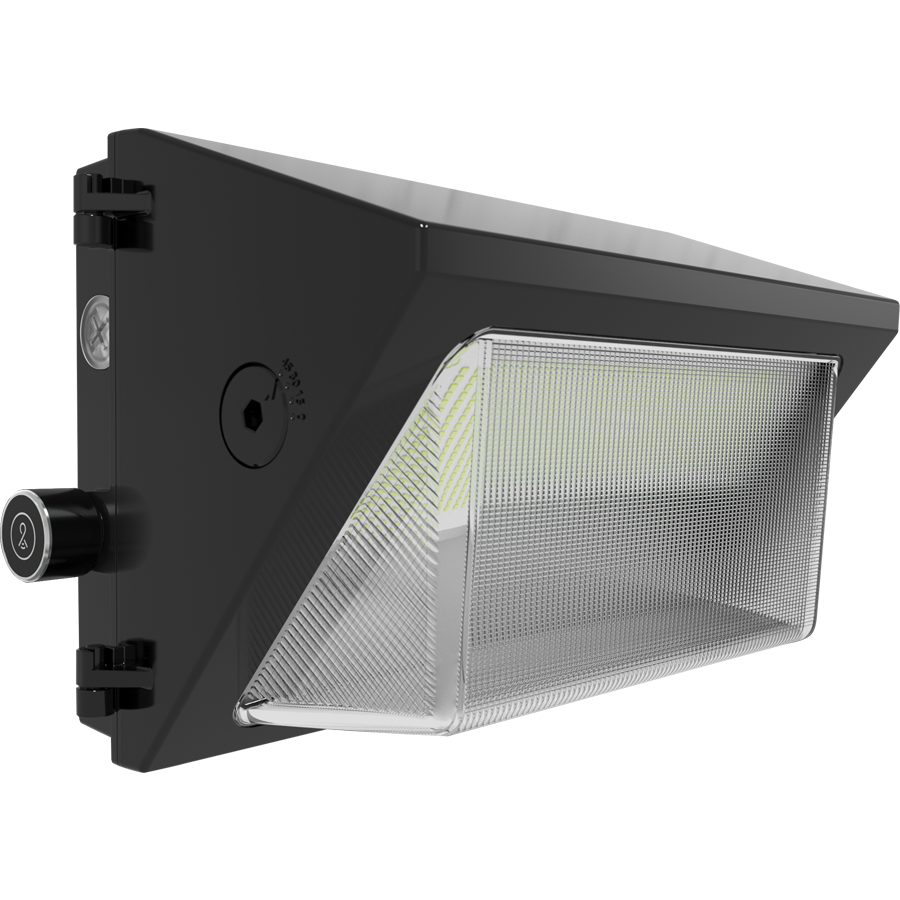

W22-M-100/LCBS/MVS

100W

100,000-Hour LED lifespan

0-10V dimming standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	100/85/70/50W
Color Temp
Lumens	6,170-14,087 lm
Efficacy	116.5-159.2 lm/W
Color Accuracy	82-85 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.83A
208V	0.48A
240V	0.42A
277V	0.36A
Input Watts	49.1-97.1W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 9.5 lbs

Technical Specifications

Lightcloud

Lightcloud Blue Installed

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Learn more at www.rablighting.com/feature/new-lightcloud-blue.

Gateway Required

Communication Protocol

Bluetooth Mesh

SmartShift

Range

Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.

Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 3x and return to full brightness.

Method 2: Manual
Locate the device identification button at the top of the Controller under the Lightcloud logo. Press and hold this button for 10s or until the indicator light begins flashing red. If the Controller is attached to a fixture, the fixture will also flash on/off 3x.

Performance

Product Type

Wall Pack

Description

Field-adjustable wall packs with selectable throw. Available in three sizes, from 15W - 150W. Now available with Lightcloud Blue and integrated occupancy sensor

Wattage Equivalency

100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
85W: Replaces up to 400W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
70W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
50W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)

Input Wattage

100/85/70/50W, factory default 100W

Lumens (Nominal)

15,000/12,750/10,500/7,500lm @ 4000K

Efficacy

150lm/W

Sensor Settings

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Sensor Connection Type

Intergrated

Max Mounting Height

8 to 12 feet

Sensor Technology

Microwave (MVS)

Default Setting

Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Photocell: Disabled

Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight Sensing: Disabled
Photocell: Disabled

Adjustable Sensor Settings?

Yes, using the Lightcloud Blue mobile app

Sensing Type

Occupancy, Vacancy

Occupied Actions

On or On at a Dim Level

Vacant Actions

Off or On at a Dim Level

Occupancy Timeout

1 minute to 240 minutes

Daylight Sensing

Dim levels will continuously adjust based on the daylight threshold level set in the Lightcloud Blue mobile app. Settings adjustable using the Lightcloud Blue mobile ap

Electrical

Driver

Constant Current, Class 2 120-277V 50/60 Hz; 120V: mA; 208V: mA; 240V: mA; 277V: mA

THD

<20%

Power Factor

0.9

Dimmable

Yes via the Lightcloud Blue mobile app and devices.
This product will not operate properly when connected to a standard/0-10V dimmer or dimming control.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-40°F to 104°F (-40°C to -40°C)

Flicker

<30%

Surge Protection

DM 4 kV+ CM 6 kV

Emergency Fixture Use

Yes, can be used as an emergency fixture

Detection Range

20 ft diameter at 9 ft mounting height

Photocell

Integrated photocell included with on/off switch, factory default set to OFF. Once photocell is enabled on the fixture, the settings are adjustable using the Lightcloud Blue mobile app

LED Characteristics

Beam Angle

Adjustable throw (0° , 15° , 30° & 45° ); factory default 45°

Color Temperature

Field adjustable via dip switch 3000/4000/5000K, factory default 4000K

Color Tuning

No, the color cannot be adjusted using the Lightcloud Blue mobile app

Color Accuracy (CRI)

80 CRI

Natural Spectrum

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Suface mount for recessed junction box; 3 conduit entry points

Construction

Size

Medium

Shape

Rectangle

Finish

Bronze

Enclosure Material

Aluminum

Lens Finish

Clear

Lens

Glass

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Energy Star Approved

DLC NLC Listed

This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules
