WFDX4

Field-selectable wattage lets you dial in the right output for any space

Five CCT options (2700/3000/3500/4000/5000K) adjustable right on the fixture

Deep regress design creates a clean appearance with minimized glare

Smooth or baffle trim in white or black to match any interior

Dimmable to 10% on compatible TRIAC/ELV dimmers

View Technical Specs

View Price & Availability

Performance

Watts	12/10/08W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,200/950/750 lm
Efficacy	100/95/94 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.10A
208V	0.04A
240V
277V
Input Watts	12/10/08W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.8 lbs

Technical Specifications

Performance

Product Type

Deep-regress wafer

Description

Deep-regress wafer downlight available in 4" and 6" sizes with field-selectable wattage and CCT. Clean, low-glare aesthetics for residential and commercial applications.

Wattage Equivalency

60W Incandescent

Input Wattage

12/10/8W

Lumens (Nominal)

1,200/950/750lm

Efficacy

100/95/94lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2 120-277V 50/60 Hz; 120V: 100mA; 208V: 43mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

85°±10°

Color Temperature

Default: 3000K

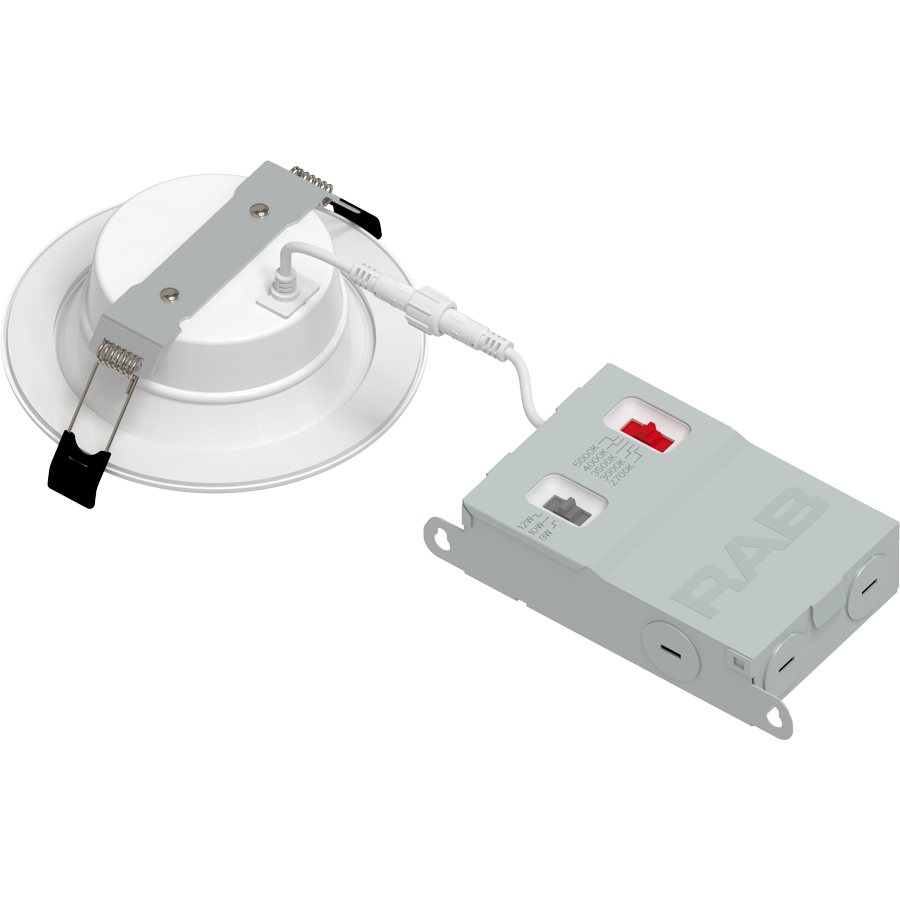

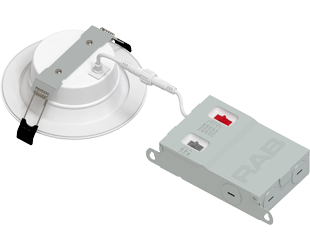

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Tuning

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Remote Driver/Junction Box

Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

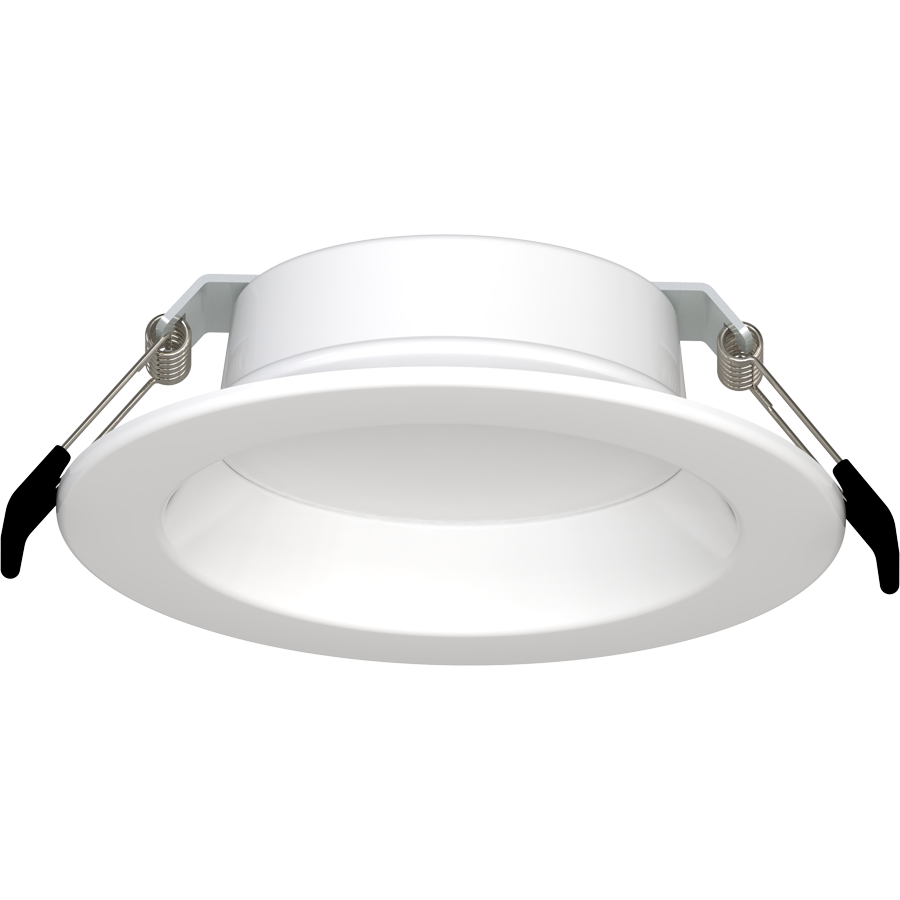

No housing is required. Two tension steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 1". New construction frames are available.

Cable

CM Plenum rated cable (per UL2042)

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

Fixture Rating

Suitable for use in open fixtures

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Housing certified Air Tight as per ASTM E283

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLW0173(WFDX4)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailer bar

DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate

ND22-RFRAME
3", 4", 6", 8" & 10" Mounting frame, round

DLPLATE/WFR4/NB/CL
4" Mounting plate with nailer bar and drywall collar

DLPLATE/WFR4
4" Mounting plate

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
