WFR-4R/PIR

Spec Sheet Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet

WFR-4R/PIR

View Technical Specs

Performance

Watts	9W
Color Temp	2700/3000/3500/4000/5000K
Lumens	750 lm
Efficacy	83
Color Accuracy	90 CRI
L70 Lifespan

Type	Constant Current
120V	0.08A
208V	0.05A
240V	0.05A
277V	0.04A
Input Watts	9W

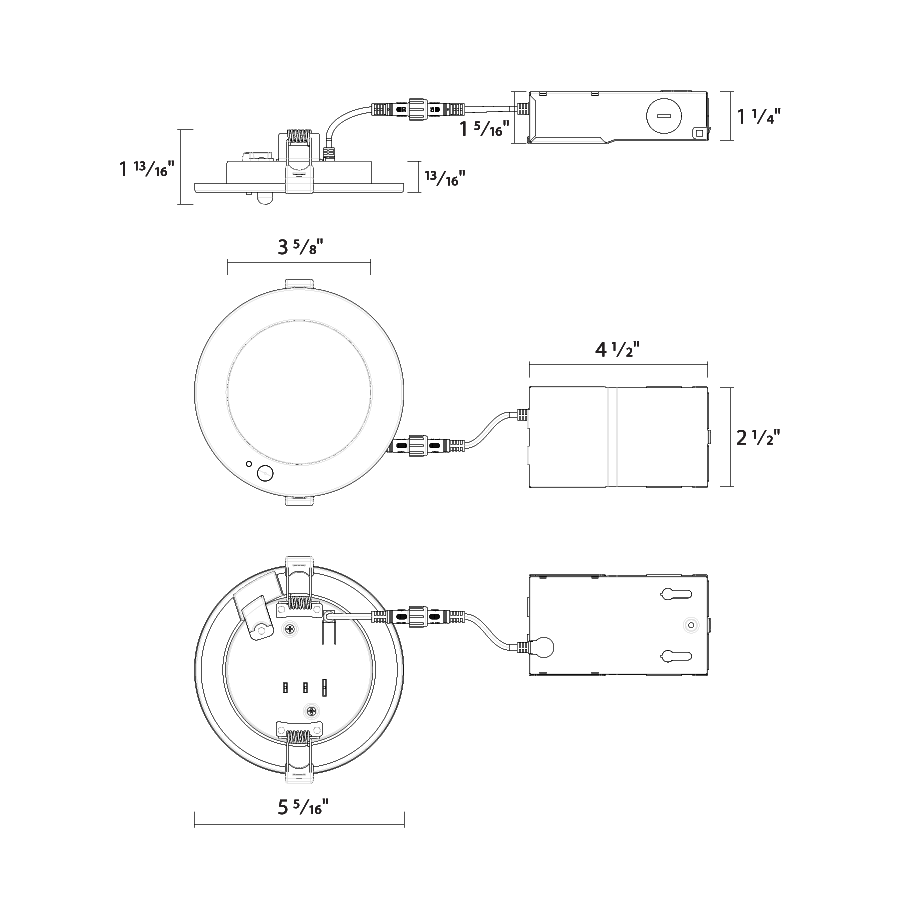

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Product Type

Edge-lit Wafer w/PIR

Description

Direct mount downlights with adjustable dip switches for color temperature, motion modes, and hold times.

Wattage Equivalency

40W Incandescent

Input Wattage

Lumens (Nominal)

750lm

Efficacy

83lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120-277V 60 Hz; 120V: 80mA; 208V: 50mA; 240V: 45mA; 277V: 40mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Flicker

≤30%

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Air Tight

Housing certified Air Tight as per ASTM-E283

Sensor Settings

Sensor Connection Type

Intergrated

Max Mounting Height

6 1/2 ft

Detection Range

13 ft diameter at 6 1/2 ft mounting height

Sensor Technology

Passive Infrared (PIR)

Adjustable Sensor Settings?

Integrated dip switches to adjust motion modes and hold times

Motion Modes

Auto (default): Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires and the light turns OFF.

Bi-Level: Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires, light reduces to 50% brightness until the specified hold time expires and the light turns OFF.

Off: Motion detection is disabled.

Hold Times

30 seconds (default), 5 minutes, 10 minutes

Photocell

Dawn to dusk

LED Characteristics

Beam Angle

110°±10°

Color Temperature

Default 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed, no housing required

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLW0150(WFR-4R/PIR)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate with nailer bar

DLPLATE/WFR3456
3", 4", 5" 6" Mounting plate

DLPLATE/WFR4/NB/CL
4" Mounting plate with collar

DLPLATE/WFR4
4" Mounting plate

EXTCBL-FA-6
6' Extension cable

EXTCBL-FA-12
12' Extension cable

EXTCBL-FA-20
20' Extension cable

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
